The Bosch Heat Air Gun GHG 23-66 provides precise, customizable heat control for a wide range of industrial and professional applications. With adjustable temperature settings up to 650°C, multiple airflow stages, and four programmable presets, it offers exceptional versatility for tasks that demand accuracy. Its thermal protection function ensures a long service life by activating automatic shutdown of the heating element while the fan continues operating. Lightweight and easy to handle, this heat gun is ideal for demanding tasks such as cable work, plastic shaping, label application, welding, and desoldering.
Features
- Digitally adjustable temperature settings from 50°C to 650°C in 10°C increments
- 10 airflow settings from 150 to 500 l/min for optimal control
- Four customizable, memorized programs for repetitive or specialized tasks
- Thermal protection automatically switches off the heating unit to prolong tool life
- Cold stage at 50°C for safe cooling and sensitive material handling
- Stable cooling position for hands-free operation
- Lightweight 0.67 kg design for fatigue-free use
- Ideal for precise heating, shaping, shrinking, and welding applications
Specifications
- Rated input power: 2300 W
- Voltage: 230 V
- Weight: 0.67 kg
Temperature & Airflow
- Working temperature: 50–650 °C
- Cold stage: 50 °C
- Airflow: 150–500 l/min
- Temperature control: Continuously variable (digital)
- Airflow control: Continuous with 10 stages
Noise Levels
- Sound pressure level: 65 dB(A)
- Sound power level: 76 dB(A)
- Uncertainty K: 3 dB

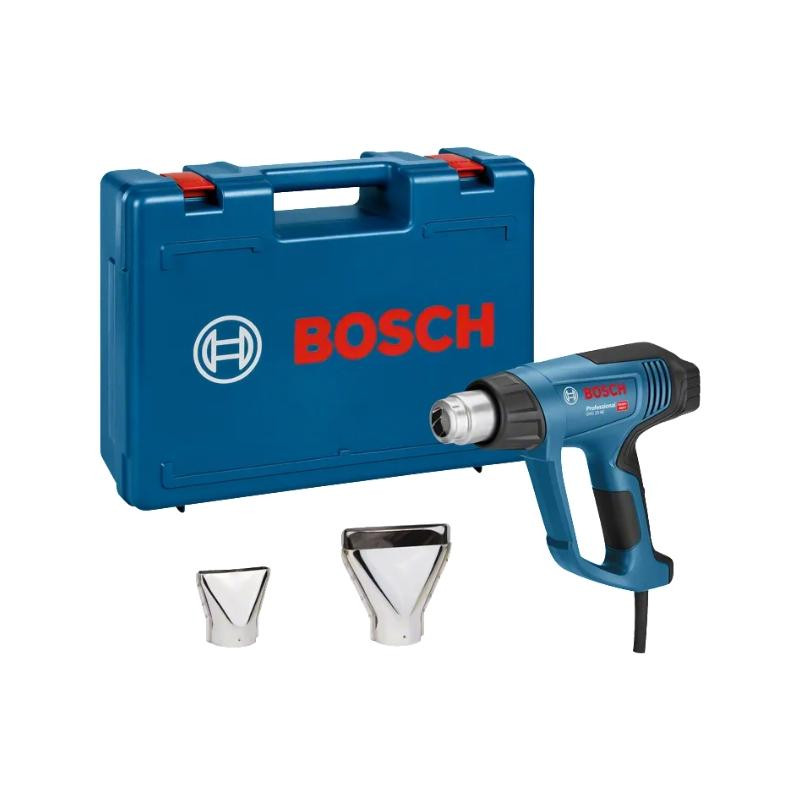

Included in This Variant
- Glass protection nozzle 75 mm PHG-N3 (Order no.: 1 609 390 452)
- Surface nozzle 50 mm (Order no.: 1 609 201 795)
- Carrying case
- Order number: 0 601 2A6 370
Additional Information
- Full digital control enables highly accurate temperature and airflow adjustments
- Programmable settings allow quick access to frequently used configurations
- Thermal protection function ensures long service life by preventing overheating
- Cool-down function and stable standing position support safe tool operation
Equipment & Application
- Ideal for plastic and pipe welding, desoldering, label application, and tube shrinking
- Designed for industrial, workshop, installation, and repair environments
- Perfect for tasks requiring a specific temperature or controlled airflow
