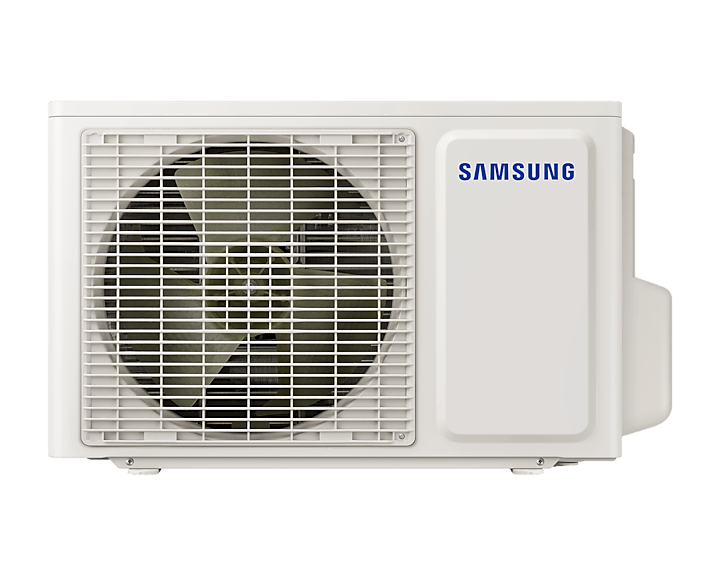

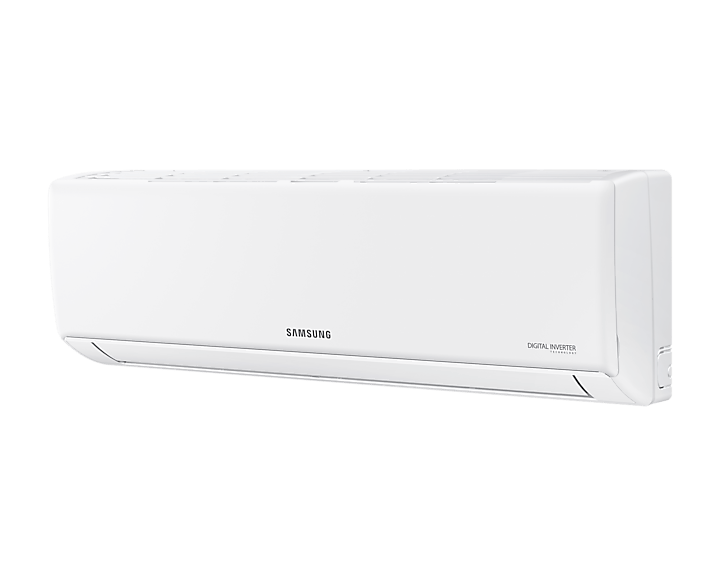

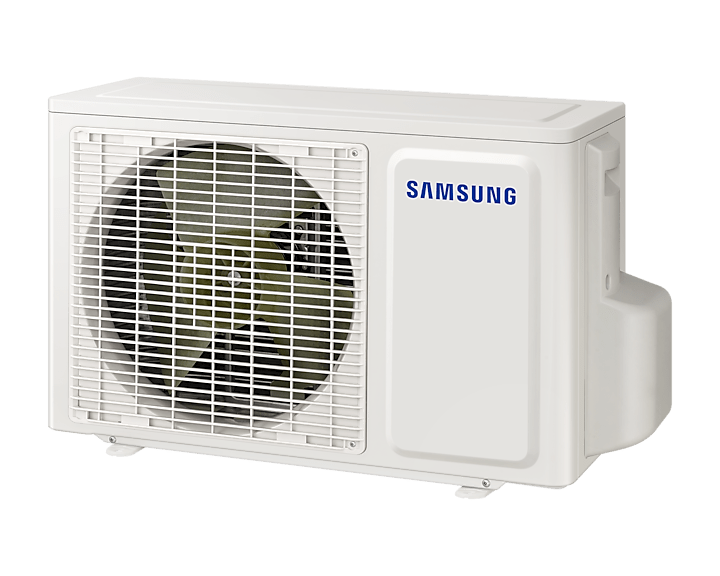

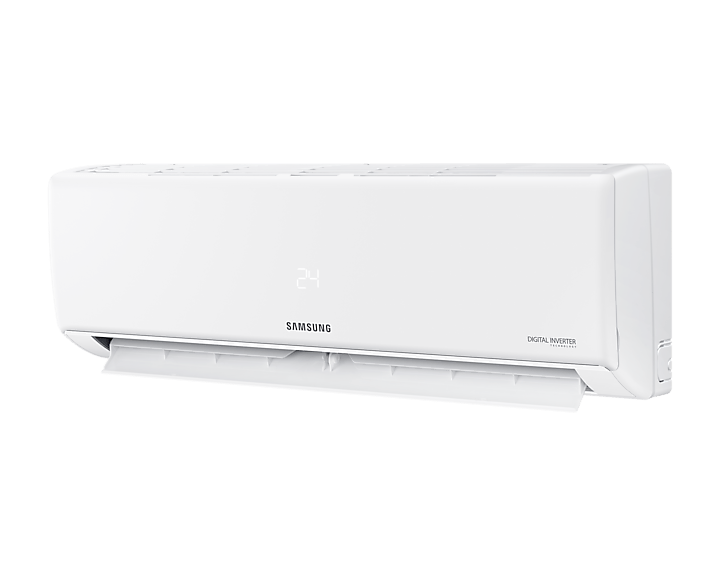

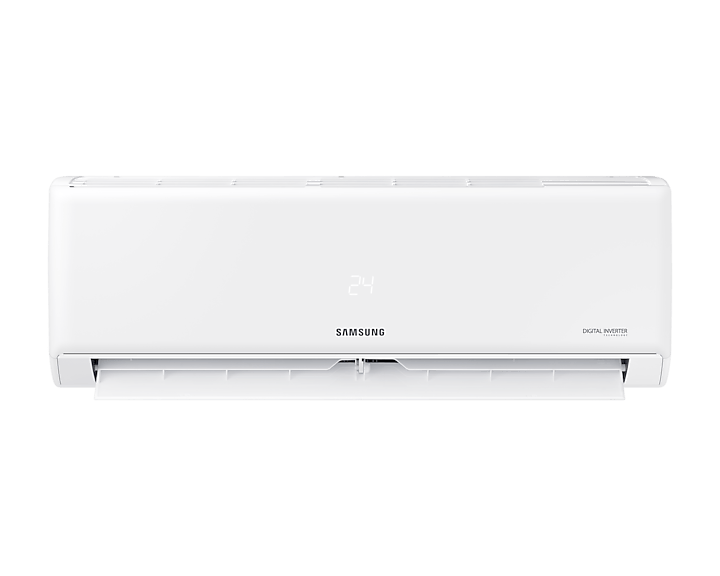

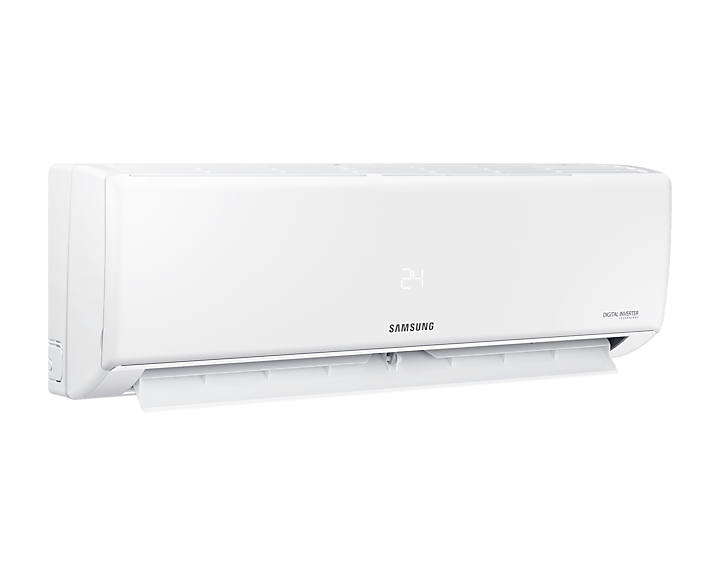

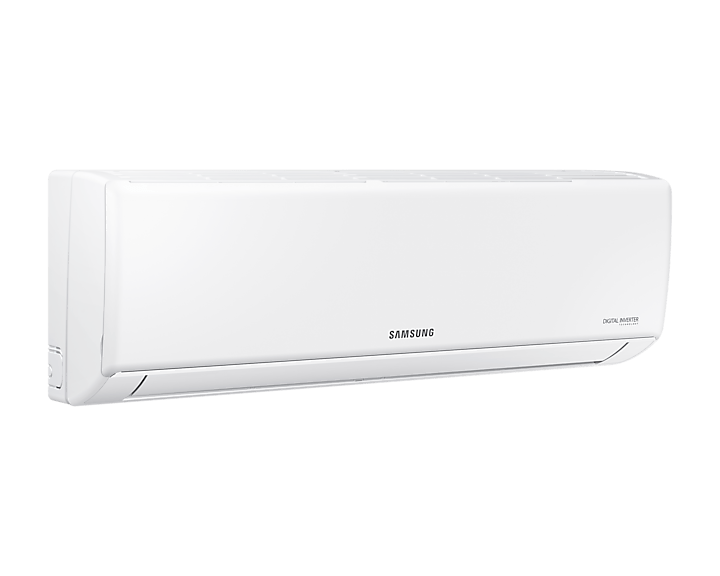

Samsung 24000 BTU Inverter Split Air Conditioner, Wall-mount AC with Energy Saving (AR24BVHGAWK R410A)

1. Good Sleep
2. HD Filter
3. Dehumidification

Specifications

Capacity

1. Cooling (Btu/hr): 22,000 Btu/hr
2. Cooling (kW): 6.45 kW
3. Cooling (Min - Max, Btu/hr): 6,150 - 24,225 Btu/hr
4. Cooling (Min - Max, kW): 1.80 - 7.10 kW

Energy Efficiency

1. EER (Cooling, W/W): 3.10 W/W
2. EER (Cooling, Btu/hW): 10.58 Btu/hW

Noise Level

1. Indoor (High/Low, dBA): 45.5 / 35 dBA
2. Outdoor (High/Low, dBA): 55 dBA

Electrical Data

1. Power Source (Φ/V/Hz): 1 / 220-240 / 50
2. Power Consumption (Cooling, W): 2080 W
3. Operating Current (Cooling, A): 9.0 A

Physical Specifications

1. Gross Dimension (Indoor, WxHxD, mm): 1148 × 350 × 413 mm
2. Gross Dimension (Outdoor, WxHxD, mm): 951 × 620 × 431 mm
3. Net Dimension (Indoor, WxHxD, mm): 1078 × 325 × 246 mm
4. Net Dimension (Outdoor, WxHxD, mm): 873 × 555 × 376 mm
5. Gross Weight (Indoor, kg): 20.5 kg
6. Gross Weight (Outdoor, kg): 39.0 kg
7. Net Weight (Indoor, kg): 17.0 kg
8. Net Weight (Outdoor, kg): 33.5 kg
9. Loading Quantity (20/40/40Hft with Pipe): 68 / 142 / 162

Technical Information

1. Piping Length (Max, m): 25 m
2. Piping Height (Max, m): 10 m
3. SVC Valve (Liquid (ODxL)): φ6
4. SVC Valve (Gas (ODxL)): φ16
5. Moisture Removal (l/hr): 2.00 l/hr
6. Air Circulation (Cooling, ㎥/min): 1250 ㎥/min
7. Refrigerant (Type): R410A
8. Refrigerant (Charging, kg): 0.90 kg
9. Low Ambient (Cooling, ℃): 18~48 ℃

Air Flow

1. Air Direction Control (Up/Down): Auto
2. Air Direction Control (Left/Right): Manual
3. Air Flow Control Step (Cool/Fan): 3 Step

Air Purification

1. Auto Clean (Self Cleaning): No

Convenience

1. Filter Cleaning Indicator: No
2. Indoor Temperature Display: Yes
3. Display On/Off: Yes
4. Beep On/Off: No
5. 24-Hour Timer: Yes
6. Auto Changeover: No
7. Auto Restart: Yes

Operating Mode

1. Fast Cool: Yes
2. Good Sleep: Yes
3. Dehumidification: Yes
4. Fan Mode: Yes
5. Quiet: No
