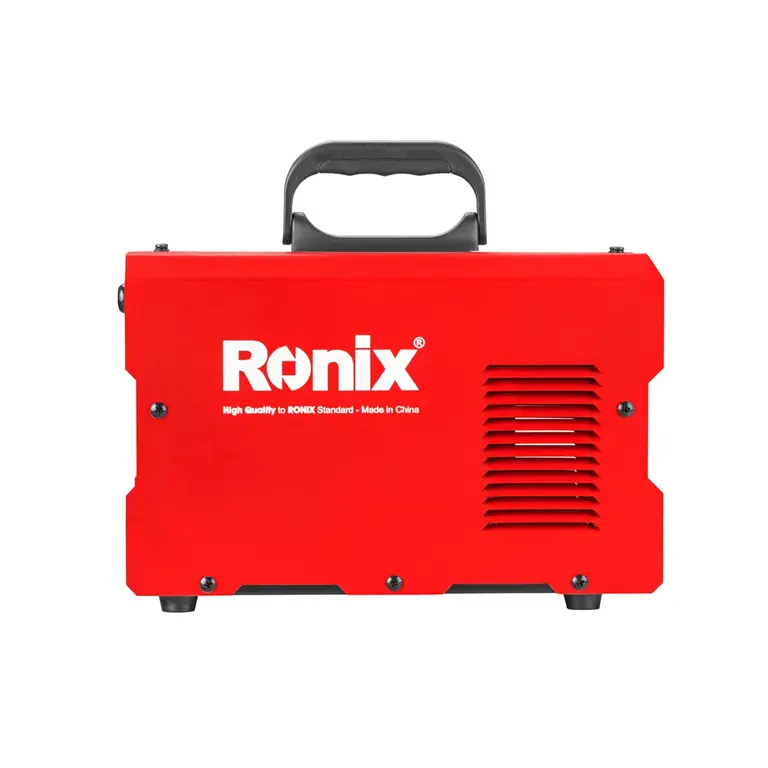

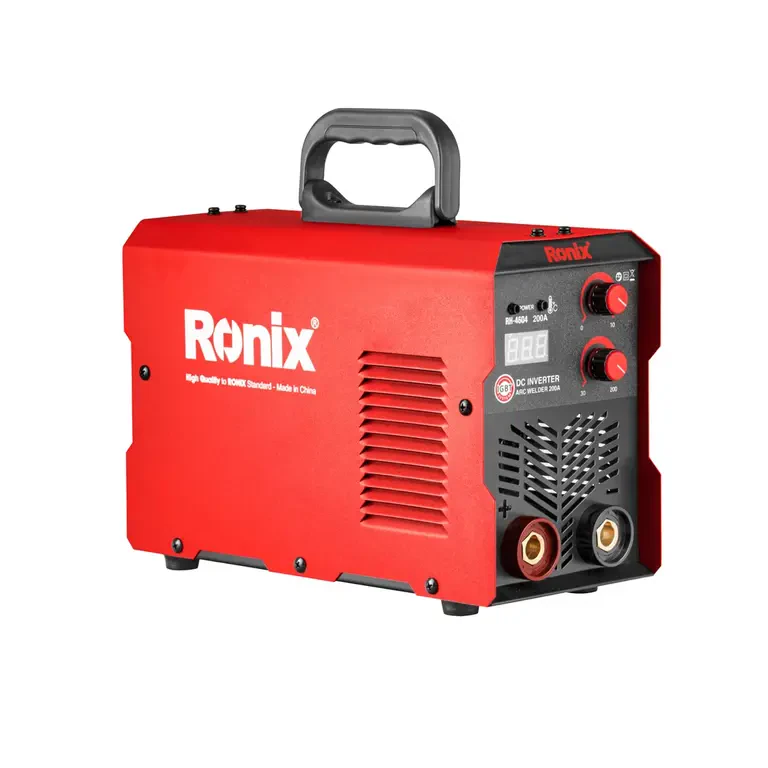

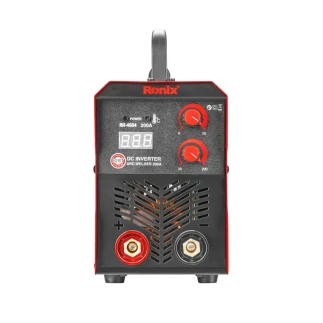

Welding plays a critical role across various industries, such as construction, manufacturing, and repair. Skillful welders rely on dependable and efficient tools, particularly welding machines, to achieve impeccable outcomes. Among these tools, the RH-4605 DC Arc Welding Inverter stands out by delivering exceptional performance. Featuring a current output range of 30-250A and a robust power rating of 11.7KVA, the RH-4605 is a powerful ally for welders. Its function revolves around converting high voltage, low amperage AC power into low voltage, high amperage DC power. With the RH-4605 DC Arc Welding Inverter, welders can confidently pursue their craft, knowing they have a reliable tool capable of delivering optimal performance for their welding needs.
Features:
-IGBT technology for better welding quality , greater welding penetration,reduced energy consumption and increased efficiency
-Unbeatable automatic short circuit current protection, easy ignition, less spark, provides excellent arc strike performance at rust suface
-Run 5mm MMA electrode
-Multi protection of over voltage, over heat, over current and over load protection
-Hot start, anti-stick, less spark, reliable. Ideal welding equipment for entry-level welder.

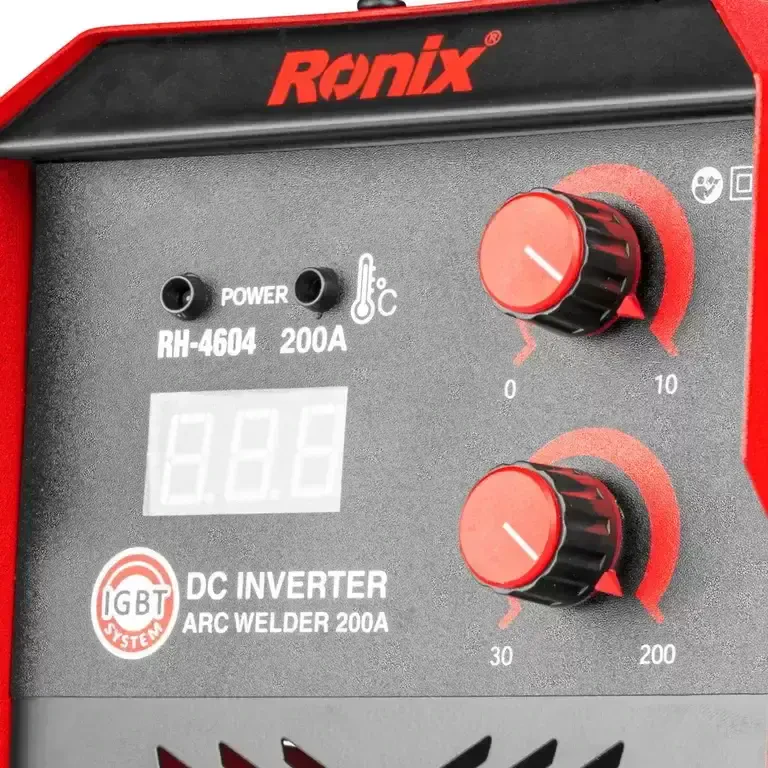

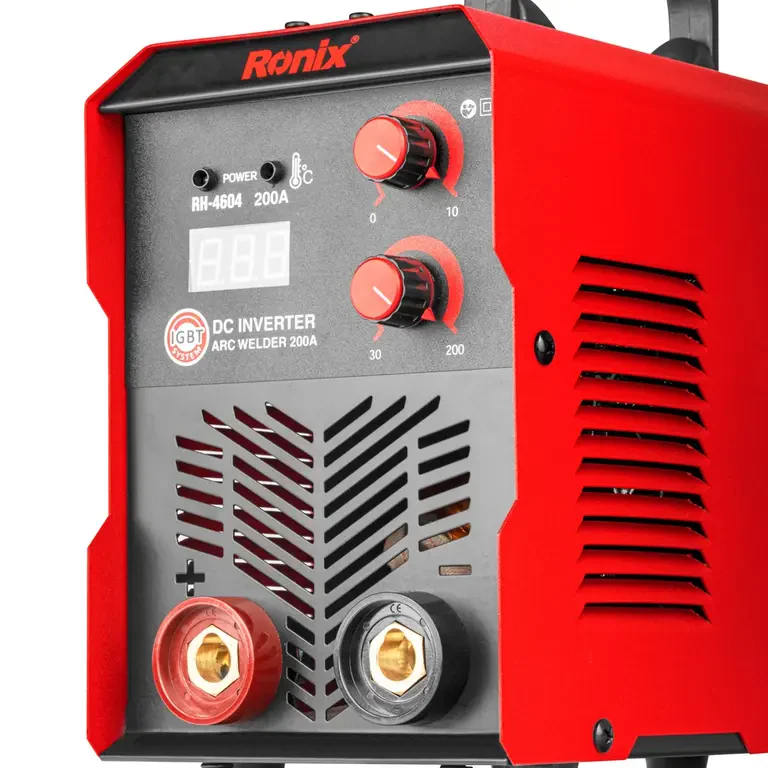

-Equip with 2 volumes ( Current , Arc force) for easy and better welding setting
- Digital display provides highly accurate welding

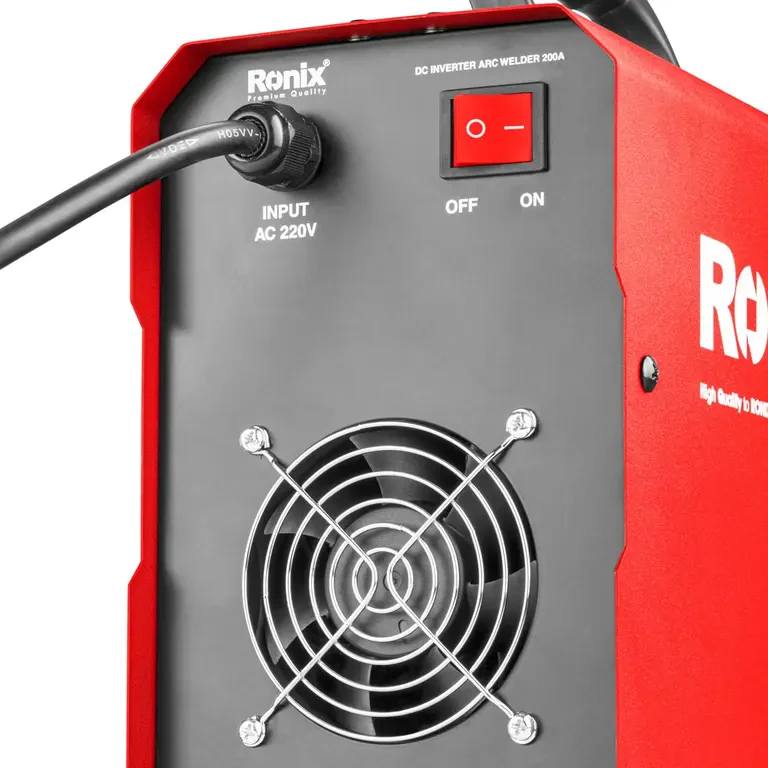

- Professional cooling system in order to increase efficiency and continuance welding
Specification
- Model: RH-4605

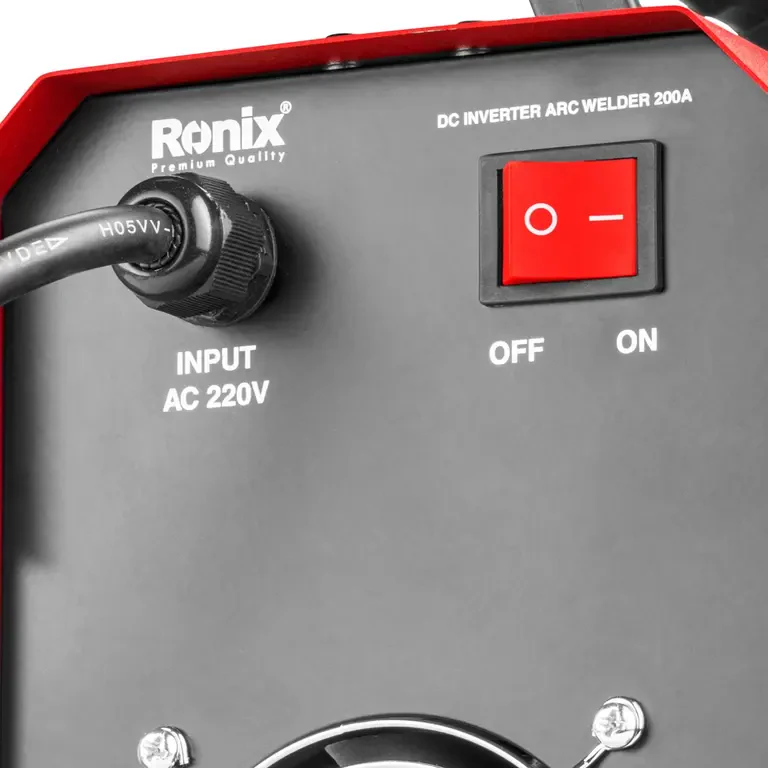

- Input voltage: 220V± 15%
- No-Load voltage: 65v
- Output Current range: 30-250A
- Rated Output Voltage: 26.4V
- Max Input Power Capacity: 11.7 KVA
- Max Input Current: 53A
- Power Factor: 0.75
- Duty Cycle: 60%
- Insulation Class: F
- Protection: IP21S
- Electrode Diameter: 1.6 - 5.0
- Supplied In: Ronix color box

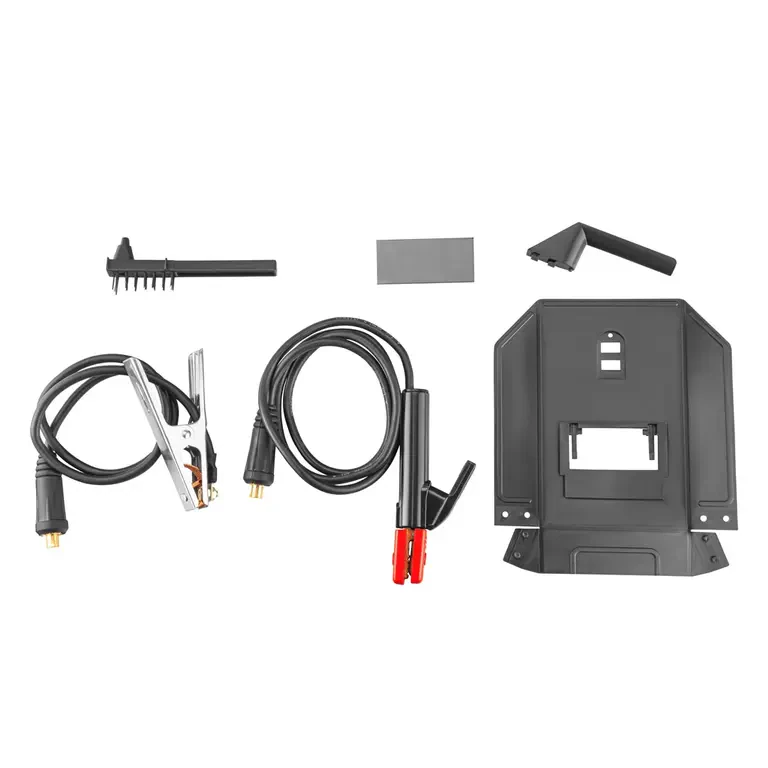

- Accessories: Earth clamp+1.2m cable, Welding clamp+1.8m cable,Scotch brush+Hammer,Mask
