Features:
- A simpler way to cool bigger spaces
- Even more comfort across larger areas
- Even cleaner air

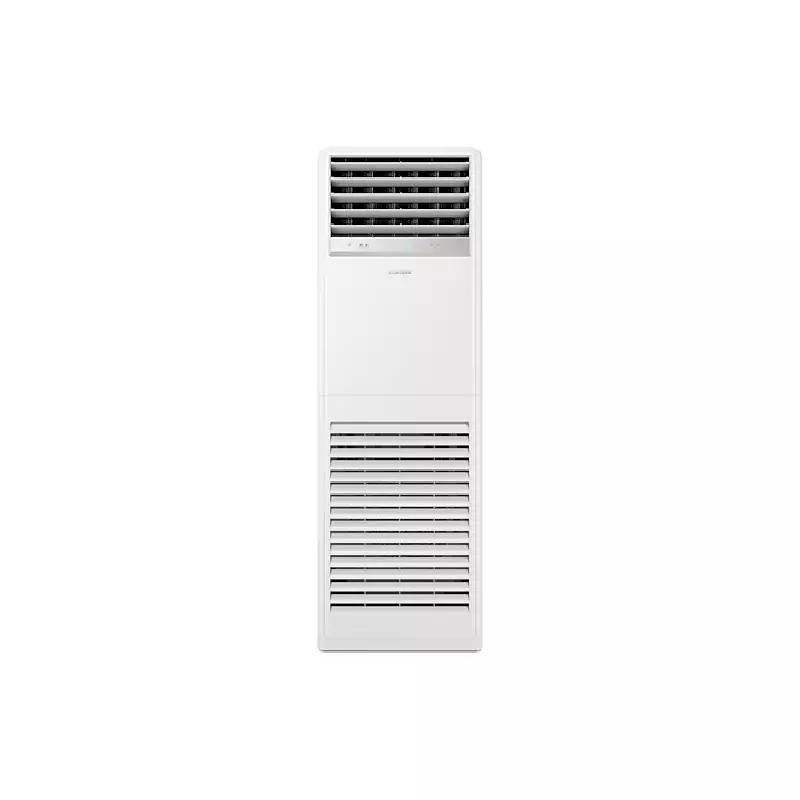

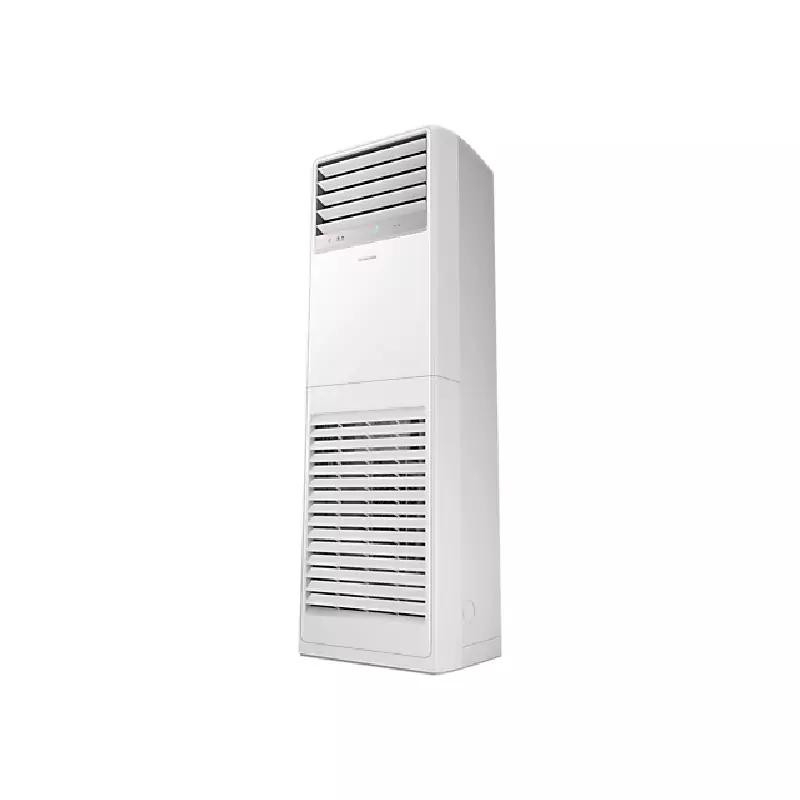

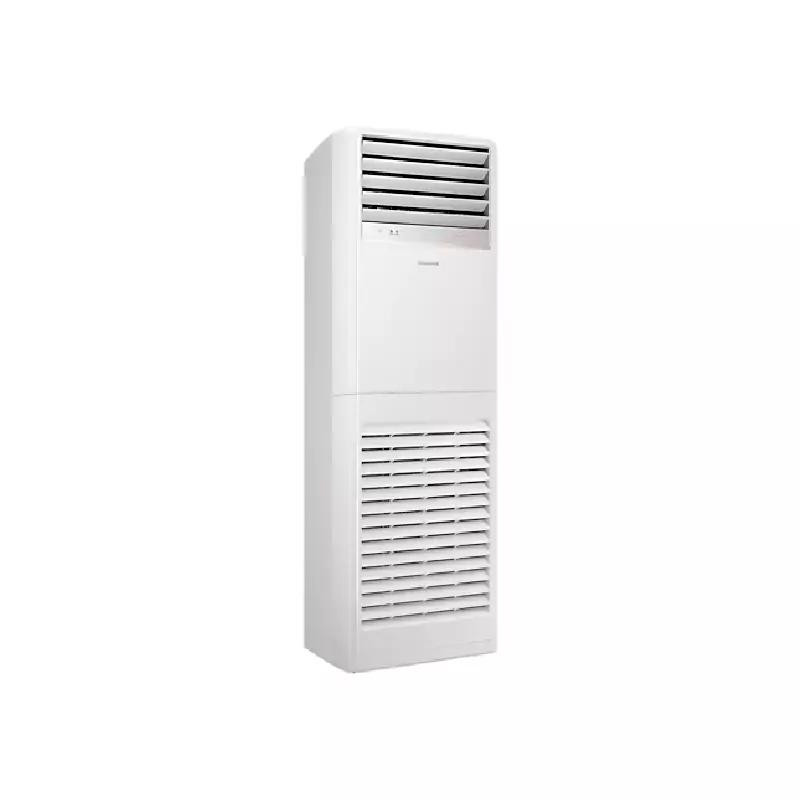

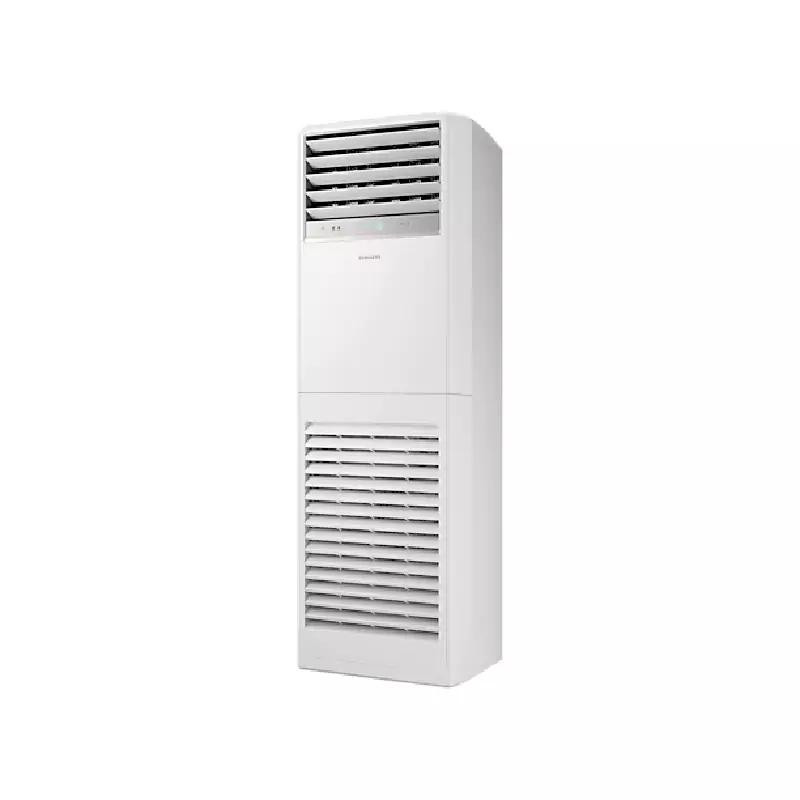

A simpler way to cool bigger spaces
Cool large areas much more evenly, efficiently and easily. It simply stands on the floor, so it can be used in a much wider choice of locations. But it optimizes its speed to maximize comfort and save energy. It can also blow air up to 20 meters* and spreads air evenly in all directions**.
* Based on internal testing. Results may vary depending on environmental factors and individual use.** Only available on the 48kW and 60kW models.
Even more comfort across larger areas
20m Long Wind with 4-way Auto Swing
Cool much larger spaces quickly and evenly from corner to corner. It combines a powerful fan motor and an enlarged air outlet, so it can blow air up to 20 meters*. An Auto Swing function** also automatically expels cool air in every direction, so air is distributed evenly across the whole room.
* Based on internal testing. Results may vary depending on environmental factors and individual use.** Only available on the 48kW and 60kW models.
Even cleaner air

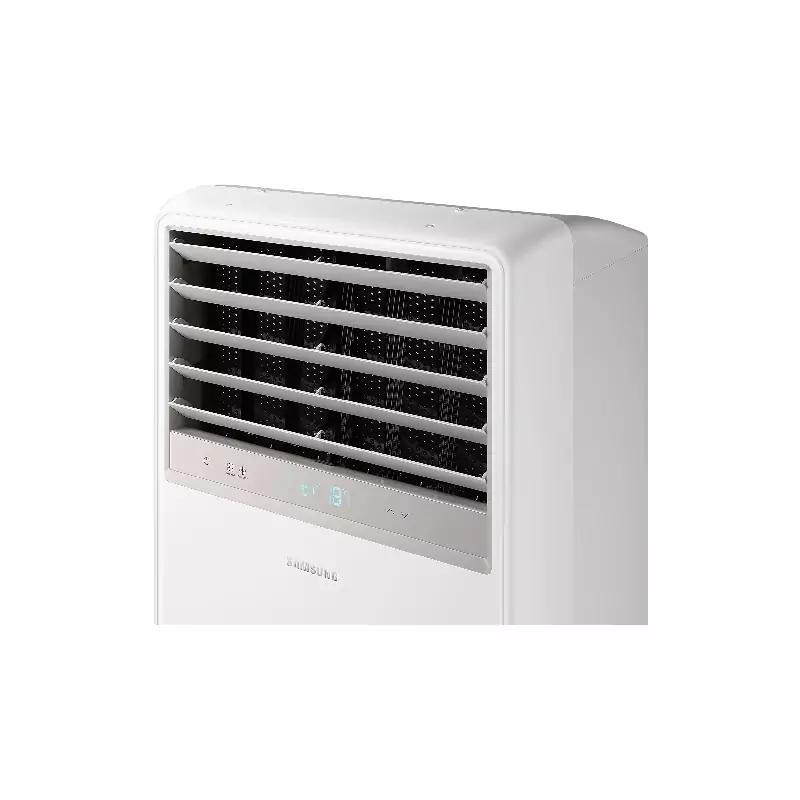

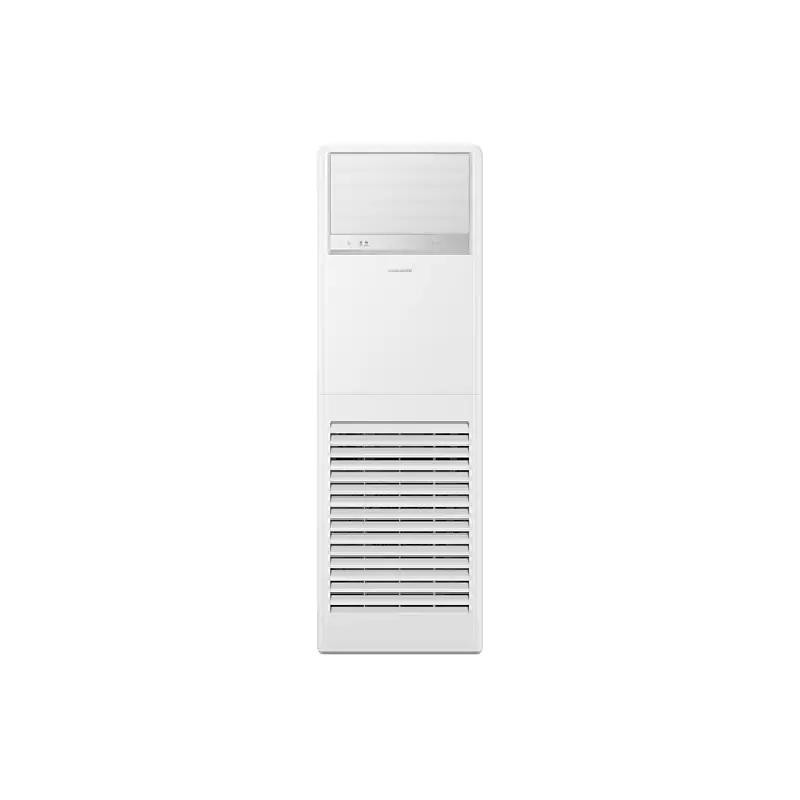

Auto Shutter
Keep the inside of your air conditioner clean and hygienic, so it always expels clean air. The Auto Shutter function automatically opens the flaps over the air vent when it is turned on. It then closes them when it is turned off, which prevents dust from getting inside and polluting the system.
More control & style
Hidden Display & Touch Control
Enjoy a stylishly modern and minimalist look and much easier control. The Touch Control panel has an intuitive button design and layout that lets you adjust the settings with just a gentle touch. And its Hidden Display enhances the minimalist design of the front but is still easy to read.
Specifications
- Cooling [Btu/h]: 12600 / 45000 / 51900 Btu/h
- Cooling [kW]: 13.20kW
- EER (Nominal Cooling): 10.42
- Net Dimensions (WxHxD) (mm): 940 x 1210 x 330 mm
Specifications Detail
Features
- Type: PAC
Model Name
- Indoor Unit: AC048TNPPEH/IQ
- Outdoor Unit: AC048TXQREH/IQ
System
- Mode: Heat Pump
Capacity
- Cooling [kW]: 13.20 kW
- Cooling [Btu/h]: 12600 / 45000 / 51900 Btu/h
- Heating [kW]: 3.5 / 14.7 / 17.0 kW
Power Input
- Cooling 1): 0.90 / 4.32 / 5.70 kW
- Heating 2): 0.70 / 4.45 / 7.10 kW
Current Input
- Cooling: 3.5 / 19.2 / 25.9 A
- Heating: 3.8 / 19.7 / 32.0 A
Energy Efficiency
- EER (Nominal Cooling): 10.42
- COP (Nominal Heating): 3.3
- Energy Grade (Cooling): C
Piping Connections
- Liquid Pipe (Φ, mm): 9.52 mm
- Gas Pipe (Φ, mm): 15.88 mm
- Installation Max. Length [m]: 75m
- Installation Max. Height [m]: 30m
Refrigerant
- Type: R-410A
- Factory Charging (kg): 2.9 kg
Power Supply (Indoor Unit) [Φ, #, V, Hz]
- 1,2,220-240,50
Fan
- Type: Sirocco
- Motor (Output) [W]: 154 W
- Number of Units (EA): 1 EA
- Air Flow Rate (High / Mid / Low) [CMM]: 37/32/27 CMM
Sound
- Sound Pressure (High / Mid / Low) [dB(A)]: 51/48/45 dBA
External Dimension (Indoor Unit)
- Panel Net Weight (kg): 44.5 kg
- Shipping Weight (kg): 50.5 kg
- Net Dimensions (WxHxD) (mm): 610x1850x400 mm
- Shipping Dimensions (WxHxD) (mm): 705x1963x493 mm
Power Supply (Outdoor Unit) [Φ, #, V, Hz]
- 1,2,220-240,50
Compressor
- Type: Twin BLDC Rotary
- Model Name: UG5T450FJX
- Output(kW): 4.19 kW
- Oil (Type): POE
- Oil (Initial Charge) [cc]: 1700 cc
Fan (Outdoor Unit)
- Air Flow Rate (Cooling) [CMM]: 110CMM
Sound (Outdoor Unit)
- Sound Pressure (Cooling / Heating) [dB(A)]: 55 dBA
External Dimension (Outdoor Unit)
- Panel Net Weight (kg): 86.5 kg
- Shipping Weight (kg): 95.5 kg
- Net Dimensions (WxHxD) (mm): 940 x 1210 x 330 mm
- Shipping Dimensions (WxHxD) (mm): 995 x 1388 x 426 mm
Operating Temp. Range
- Cooling (℃): -15~54 ℃
- Heating (℃): -20~24 ℃
