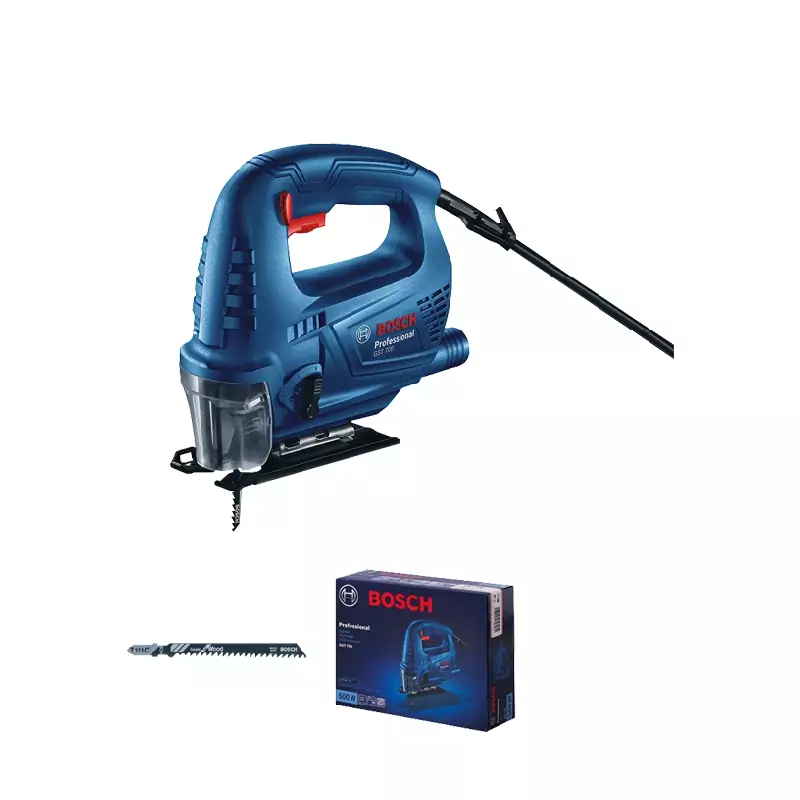

Bosch Jig Saw 500W 70mm GST 700
Beyond expectations. Cut faster with ease.
- High performance in cutting speed and quality
- Optimized cutting results in various materials
- Faster and easier blade change
Functions & key features
- Speed selection: Best work results with speed pre-selection, Best work results with speed pre-selection for applications requiring material-specific speed
- Saw blade pendulum: Action adjustable 3-stage or 4-stage saw blade pendulum action
- Double insulation: Two layers of insulating material surrounding live parts or reinforced insulation. Does not require a connection to electrical earth (ground)
- Woodworking: The professional power tools for woodworking from Bosch
Technical Data
- Rated input power: 500 W
- Saw, stroke length: 20 mm
- Weight: 4.1 kg
- Stroke rate at no load: 1450 – 3,200 spm
- Weight: 2.1 kg
Cutting depth
- Cutting depth in wood: 70 mm
- Cutting depth in aluminum:10 mm
- Cutting depth in non-alloyed steel: 6 mm
Total vibration values (Sawing wood)
- Vibration emission value ah: 3.9 m/s²
- Uncertainty K: 1.5 m/s²
Total vibration values (Sawing sheet metal)
- Vibration emission value ah: 4.2 m/s²
- Uncertainty K: 1.5 m/s²
Noise/vibration information
- Sound pressure level: 90 dB(A)
- Sound power level: 101 dB(A)
- Uncertainty K: 3 dB
Sawing wood
- Vibration emission value ah: 3.9 m/s²
- Uncertainty K: 1.5 m/s²
Sawing sheet metal
- Vibration emission value ah: 4.2 m/s²
- Uncertainty K: 1.5 m/s²
The A-rated noise level of the power tool is typical as follows: Sound pressure level 90 dB(A); Sound power level 101 dB(A). Uncertainty K= 3 dB.
