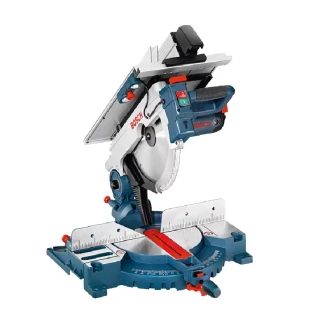

Bosch Combination Saw 1800W 305mm Wood GTM 12 JL
A multi-talented tool with 100% precision
- Table saw and mitre saw in one tool
- Precise work with integrated laser
- Powerful 1800 W motor for fast work progress (up to 95 mm cutting depth – mitre function and up to 51 mm cutting height – table saw function)
Functions & key features
- Laser: Class 2 laser, Class for measuring tools
- Spindle Lock: Easy disc/ tool change thanks to the spindle lock
- Click & Learn: A clear view of the work surface: You work more precisely and faster, Harmful dust is extracted immediately
- Soft start: Soft start is the load and torque of the motor are temporarily reduced during start-up
- Dust extraction: Dust extraction directly into the integral dust bag on the tool and/ or using an all-purpose dust extractor
Technical Data
- Saw blade diameter: 305 mm
- Mitre setting: 48 ° L / 48 ° R
- Bevel setting: 47 ° L / 2 ° R
- Saw blade bore diameter: 30 mm
- Rated input power: 1,800 W
- Cutting capacity 0°: 95 x 150 mm
- Cutting capacity, 45°: mitre 95 x 90 mm
- Tool dimensions (width x length x height): 660 x550 x400 mm
- No-load speed: 3,800 rpm
- Cutting height of table saw: 51 mm
- Weight: 21 kg
Total vibration values (Sawing wood)
- Vibration emission value ah: 3.4 m/s²
- Uncertainty K: 1.5 m/s²
Noise/vibration information
- Sound pressure level: 91 dB(A)
- Sound power level: 104.5 dB(A)
- Uncertainty K: 3 dB
Sawing wood
- Vibration emission value ah: 3.4 m/s²
- Uncertainty K: 1.5 m/s
The A-rated noise level of the power tool is typical as follows: Sound pressure level 91 dB(A); Sound power level 104.5 dB(A). Uncertainty K= 3 dB.
