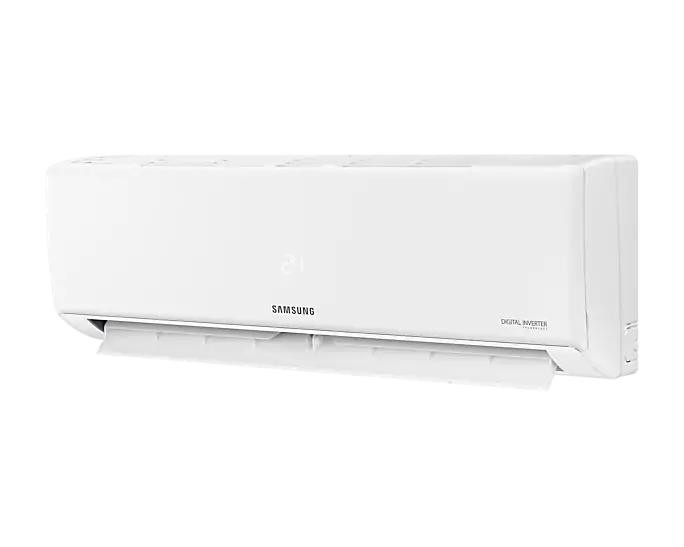

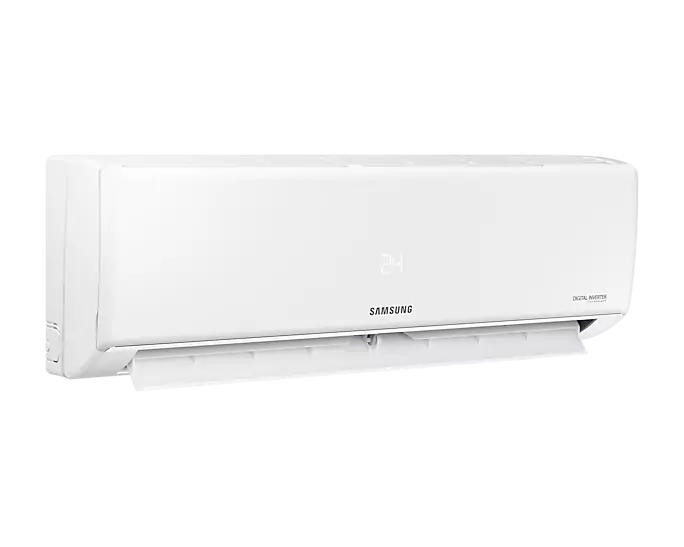

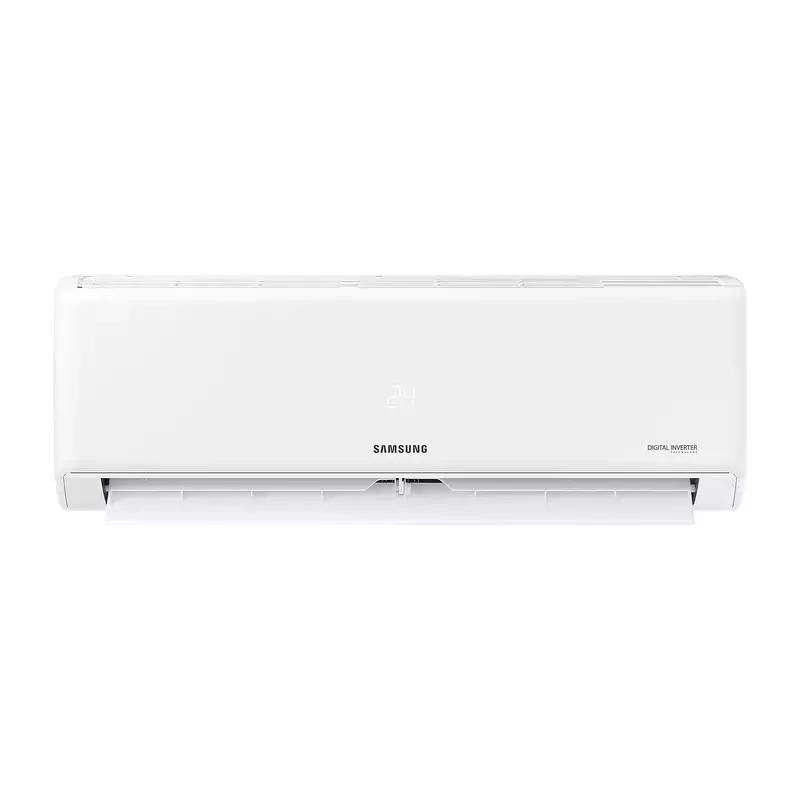

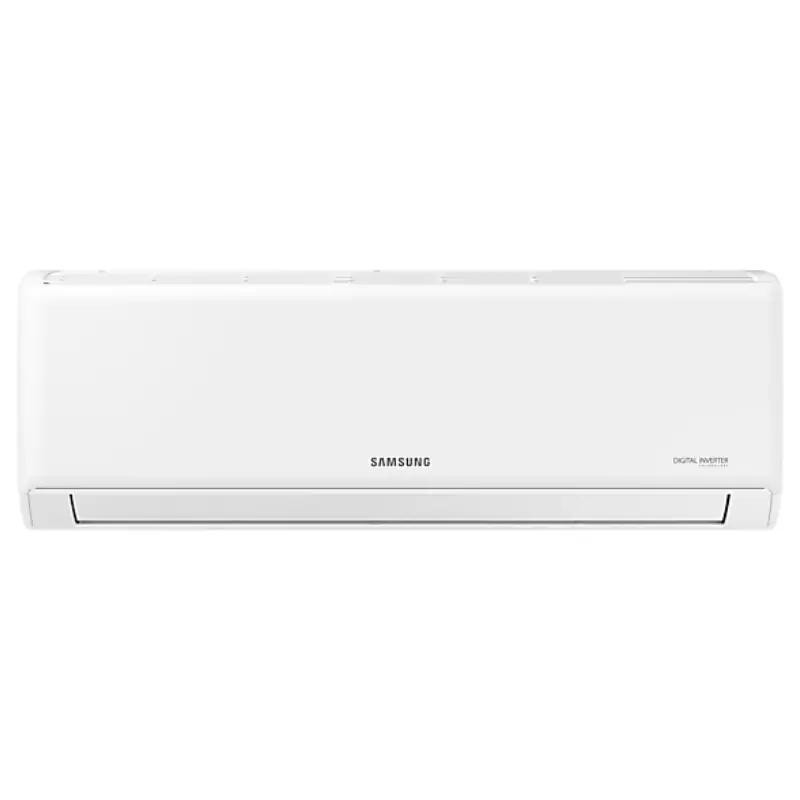

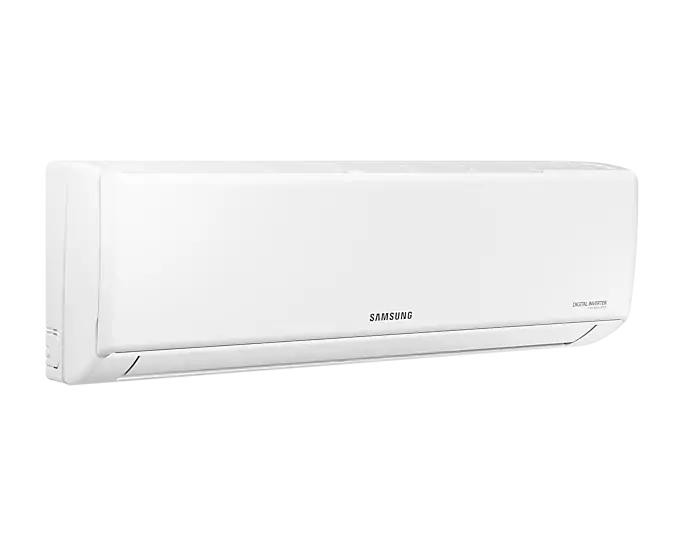

The Samsung AR5000HM Wall-Mount AC with Energy Saving BVHGAWK is designed to provide efficient and powerful cooling for your home. With a cooling capacity of 8701 Btu/hr, this air conditioner ensures a comfortable environment even during the hottest days. It features advanced energy-saving technology, a sleek design, and a range of convenient features to enhance your comfort. The unit operates quietly, making it ideal for bedrooms and living spaces.
Overview
- Energy Saving: Advanced digital inverter technology reduces energy consumption.
- Fast Cooling: Quickly cools the room with the fastest fan speed.
- Quiet Operation: Low noise levels for a peaceful environment.
- Good Sleep Mode: Automatically adjusts temperature for optimal sleep conditions.
- HD Filter: Captures dust and allergens for cleaner air.
- 2-Way Auto Swing: Evenly distributes cool air throughout the room.
Full Specification
Capacity
- Capacity (Cooling, Btu/hr): 8701 Btu/hr
- Capacity (Cooling, Min - Max, Btu/hr): 1,535-10,065 Btu/hr
- Capacity (Cooling, kW): 2.55 kW
- Capacity (Cooling, Min - Max, kW): 0.45-2.95 kW
Energy Efficiency
- EER (Cooling, W/W): 2.98 W/W
- EER (Cooling, Btu/hW): 10.16 Btu/hW
Noise Level
- Noise Level (Indoor, High/Low, dBA): 37/25 dBA
- Noise Level (Outdoor, High/Low, dBA): 50 dBA
Electrical Data
- Power Source (Φ/V/Hz): 1 / 220-240 / 50
- Power Consumption (Cooling, W): 856 W
- Operating Current (Cooling, A): 4.2 A
Technical Information
- Piping Length (Max, m): 15 m
- Piping Height (Max, m): 10 m
- SVC Valve (Liquid (ODxL)): φ6
- SVC Valve (Gas (ODxL)): φ9.52
- Moisture Removal (l/hr): 0.80 l/hr
- Air Circulation (Cooling, ㎥/min): 500 ㎥/min
- Refrigerant (Type): R410A
- Refrigerant (Charging, kg): 0.39 kg
- Low Ambient (Cooling, ℃): 18~48 ℃
Air Flow
- Air Direction Control (Up/Down): Auto
- Air Direction Control (Left/Right): Manual
- Air Flow Control Step (Cool/Fan): 3 Step
Air Purification
- Auto Clean (Self Cleaning): No
Convenience
- Filter Cleaning Indicator: No
- Indoor Temp. Display: Yes
- Display On/Off: Yes
- Beep On/Off: No
- 24-Hour Timer: Yes
- Auto Changeover: No
- Auto Restart: Yes
Operating Mode
- Fast Cool: Yes
- Good Sleep: Yes
- Dehumidification: Yes
- Fan Mode: Yes
- Quiet: No
Physical Specification
- Gross Dimension (Indoor, WxHxD, mm): 866×271×367 mm
- Gross Dimension (Outdoor, WxHxD, mm): 764×525×330 mm
- Net Dimension (Indoor, WxHxD, mm): 790×275×200 mm
- Net Dimension (Outdoor, WxHxD, mm): 710×450×293 mm
- Gross Weight (Indoor, kg): 11.5 kg
- Gross Weight (Outdoor, kg): 24.0 kg
- Net Weight (Indoor, kg): 9.0 kg
- Net Weight (Outdoor, kg): 20 kg
- Loading Quantity (20/40/40Hft with Pipe): 132/278/316
