Clamping digital multimeters, also known as clamp meters, are versatile electrical testing devices that can measure current flow without the need for physical contact with the circuit. They work by clamping around a conductor, such as a wire, and detecting the magnetic field generated by the current passing through it. This allows the meter to measure the current directly, providing accurate readings. Clamp meters are beneficial for electricians, technicians, and DIY enthusiasts who need to measure electrical current in a non-invasive manner. Ronix RH-9603 is a digital multimeter that offers all of the basic functionalities of a clamping multimeter while also offering other useful features such as a flashlight or true RMS capability. If you are in the market for a new clamping digital multimeter, Ronix RH-9603 is one of the best options available that combines excellent performance with an affordable price.
Key Features:
Ronix RH-9603, Clamping Digital Multimeter:
Some specific scenarios where clamping digital multimeters can be used include troubleshooting electrical systems, verifying current flow in circuits, and measuring the power consumption of appliances. They are particularly useful in situations where it is impractical or unsafe to interrupt the circuit or physically touch the wires. Clamping digital multimeters provide a convenient and reliable way to measure current which makes them an essential tool for electrical professionals and enthusiasts alike. Capable of reading current and voltages in both AC and DC in addition to reading capacitance, frequencies, and temperature, Ronix RH-9603 is one of the best clamping digital multimeters on the tools market. Here, we will take a closer look at its core design and details of its measuring capabilities.
Measuring capabilities:
Ronix RH-9603 is a versatile clamping multimeter that can be useful in a wide range of scenarios and applications. This model can measure AC and DC currents of 60A/600A/1000A in addition to DC voltages of 600mV/ 6V/ 60V/ 600V/ and 1000V; and AC voltages of 600mV/ 6V/ 60V/ 600V/ and 750V. Using this multimeter, you can also measure resistances of 600Ω/ 6kΩ/ 60kΩ/ 600kΩ/ 6MΩ/ and 60MΩ or capacitance levels of 10nF/ 100nF/ 1μF/ 10μF/ 100μF/ 1mF/ 10mF/ and 100mF and frequencies of 10Hz/ 100Hz/ 1kHz/ 10kHz/ 100kHz/ 1MHz/ and 10MHz. Moreover, the RH-9602 model can be used for measuring temperatures from -40 to 1000 degrees Celsius (-40 to 1832 degrees Fahrenheit). Furthermore, Ronix RH-9603 can show up to 6000 counts and has a sampling rate of 3 times per second and a 1kHz-wide AC bandwidth. All of these functionalities are accessible using only several AAA batteries so you can use our RH-9603 model anywhere at any time. Ronix RH-9603 has several safety ratings as well. Ratings such as EN61010-1, -2-030 EN61010-2-033, EN61326-1, and 1000V CATIII will ensure the user’s peace of mind when using this device.
Body:

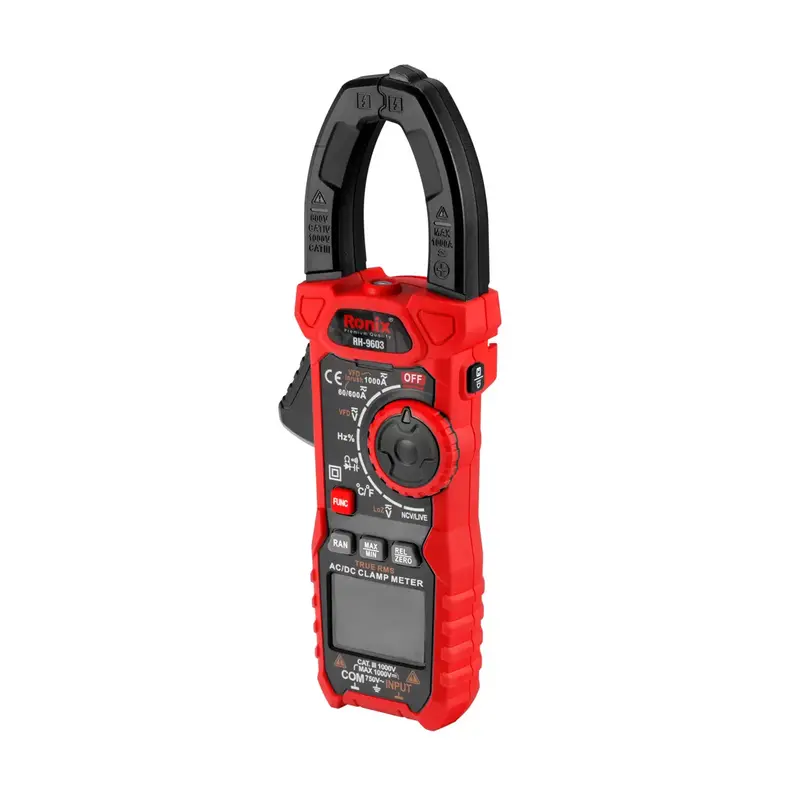

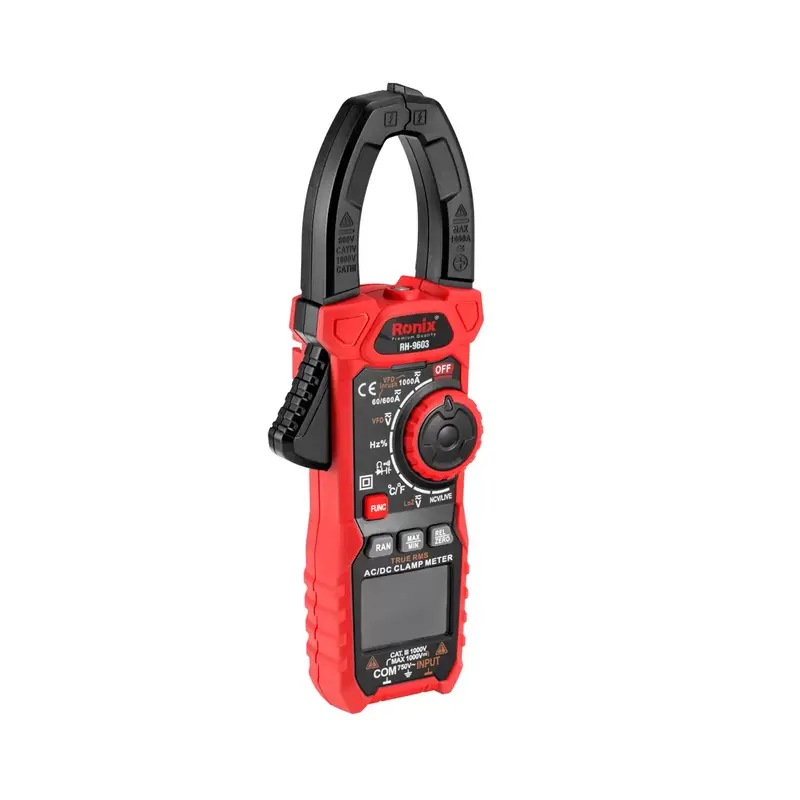

Equipped with a 43.6*32.5mm LCD screen, Ronix RH-9603 is made of ABS plastic and weighs only 320g with the following dimensions: 240*85*47mm. This body is connected to a 35*60mm jaw that can open up to 40mm. In addition to its ability in measuring various parameters, we have armed our RH-9603 model with numerous features as well. For example, it features true RMS capability and the ability to save and hold onto data while also offering an analog bar graph and a low battery indicator. It also has an auto power-off feature that prevents battery drainage when not in use, prolonging the lifespan of each battery pack put in the device.
Accessories and packaging:

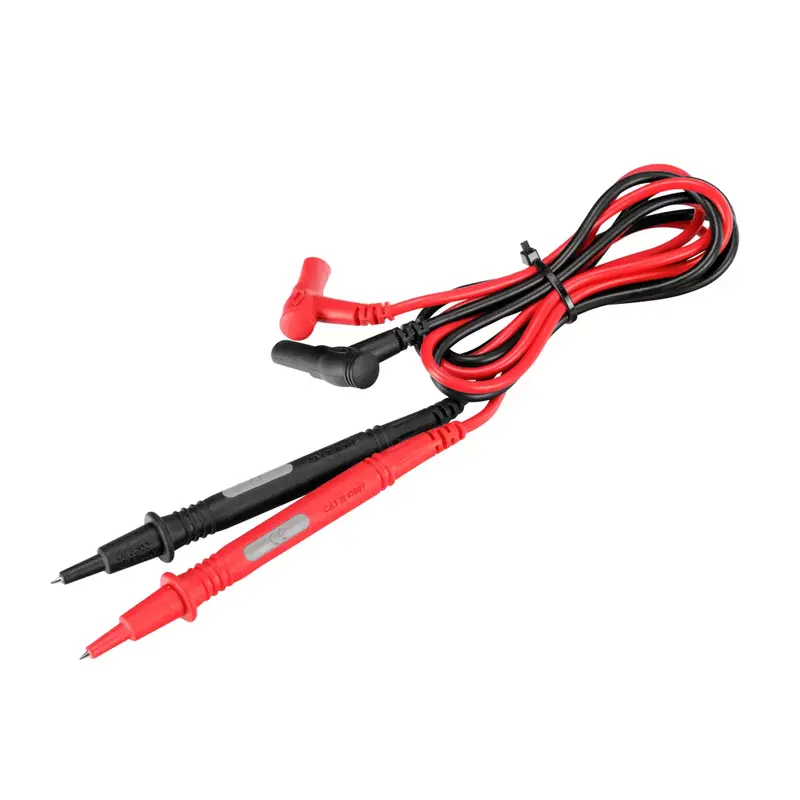

Ronix RH-9603 is packed in an EVA bag for extra protection when moving the device. Upon opening up this packaging, you will find the device itself alongside accessories such as a test probe, a temperature probe, and 3 AAA batteries.
Features:
- Practical Digital Multimeter which can accurately measure the value of various parameters like AC/DC Current, AC/DC voltage, frequency, resistance, continuity, diode, capacitance, temperature, non-contact AC voltage (NCV) detection, and live detection.
- Overload protection for all measurement range
- Low input impedance helps to prevent false readings due to ghost voltage

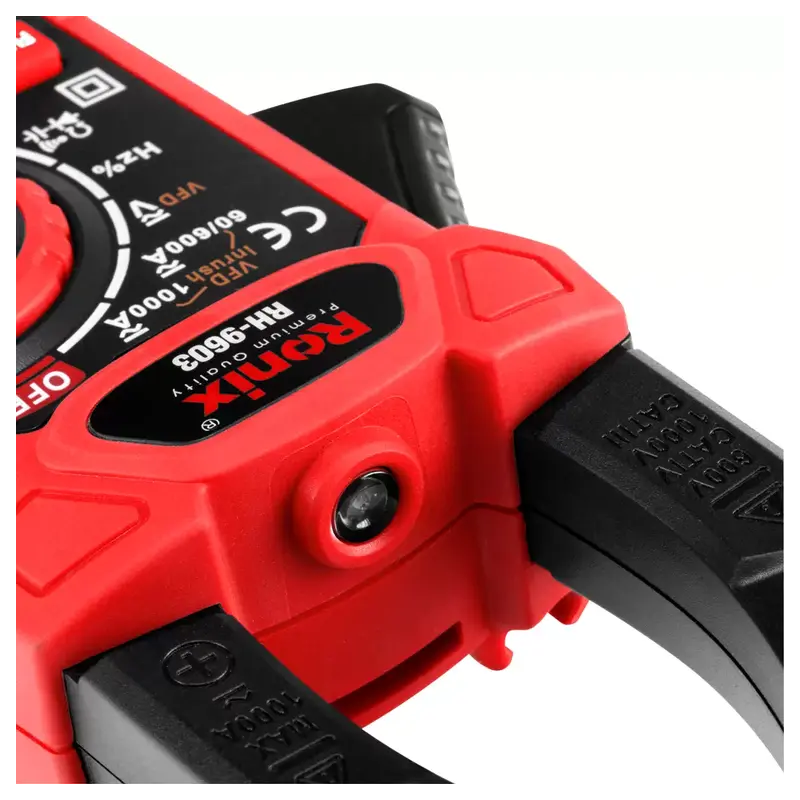

- The flashlight function bring comfort and safe work in dark spaces
- Provide with Non-contact AC Voltage detection function
- Achieving a high level of safety in a compact body and lightweight design
- Robust body design with shockproof protection
- Auto power off within 15 minutes if there is no operation, helps conserve the battery
- Designed and conforms to IEC 61010-1-2010 Standard, safe and reliable
- Ideal for electrical equipment testing and maintenance
Specifications:
- Brand: Ronix
- Model: RH-9603
- DC Voltage Range: 600mV/6V/60V/600V/1000V
- Accuracy Rang of DC Voltage: (0.8%+5)±
- AC Voltage Range: 600mV/6V/60V/600V/750V
- Accuracy Rang of AC Voltage: (1.0%+5)±
- DC Current Range: 60A/600A/1000A
- Accuracy Rang of DC Current: (2.5%+8)±
- AC Current Range: 60A/600A/1000A
- Accuracy Rang of AC Current: (2.5%+8)±
- Resistance Range: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
- Accuracy Rang of Resistance: (1.0%+5)±
- Capacitance Range: 10nF/100nF/1μF/10μF/100μF/1mF/10mF/100mF
- Accuracy Rang of Capacitance: (5.0%+10)±
- Frequency Range: 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz
- Accuracy Rang of Frequency: (3.0%+3)±
- Temperature Range: "-20°C~1000°C. '-4°F~1832°F"
- Accuracy Rang of Temperature: (2.0%+2)±
- Duty Cycle: "1%~99% (3.0%+3)±"
- Accuracy Rang Duty Cycle: (3.0%+3)±
- Counts: 6000
- AC bandwidth: 1KHz
- Input impedance: 10MΩ
- LCD Size: 43.6*32.5mm
- Sampling rate: Yes
- Auto/Manual range: Yes
- Continuity: Yes
- Diode Test: yes
- Data hold: Yes
- NCV: Yes
- Back light: Yes
- Flashlight: Yes
- DCA ZERO: Yes
- Low battery indication: Yes
- Auto Power Off: Yes
- True RMS: Yes
- shockproof protection: Yes
- Analog Bar Graph: Yes
- VFD: Yes
- INRUSH: Yes
- MAX/MIN: Yes
- REL: Yes
- LowZ: Yes
- V-LoZ: Yes
- VA screen: Yes
- Body Material: ABS
- Power: 3xAAA(1.5V)Batteries
- Weight: 320g
- Operating temperature range: 0~40°C
- Size: 240*85*47mm
- Jaw opening: 40mm
- Jaw Size: ø35*60mm
- Safety Rating: EN61010-1,-2-030 EN61010-2-033, EN61326-1 CAT III 1000V
- Packaging: Color Carton
- Accessories: probe, EVA toolkit, manual
