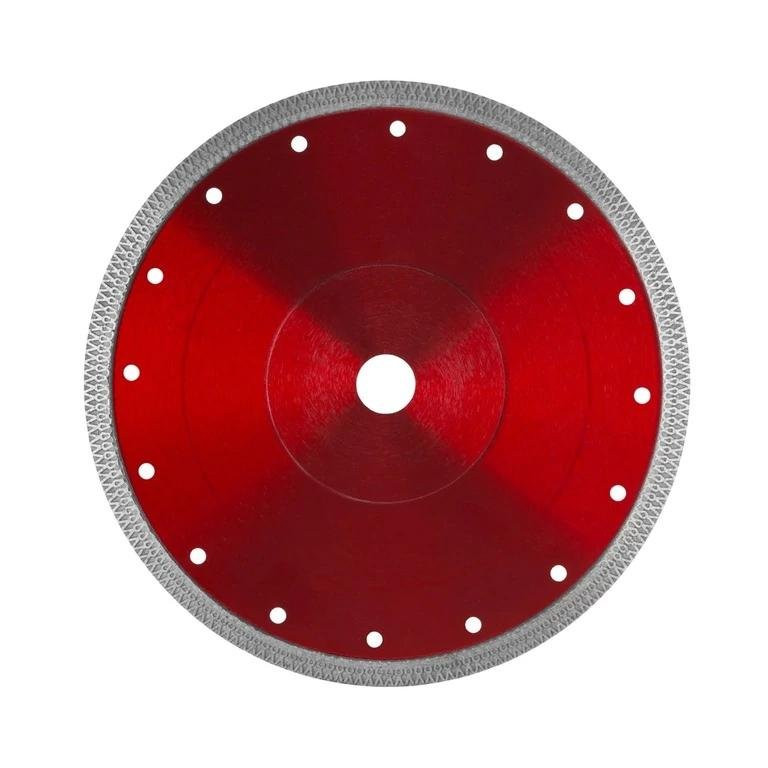

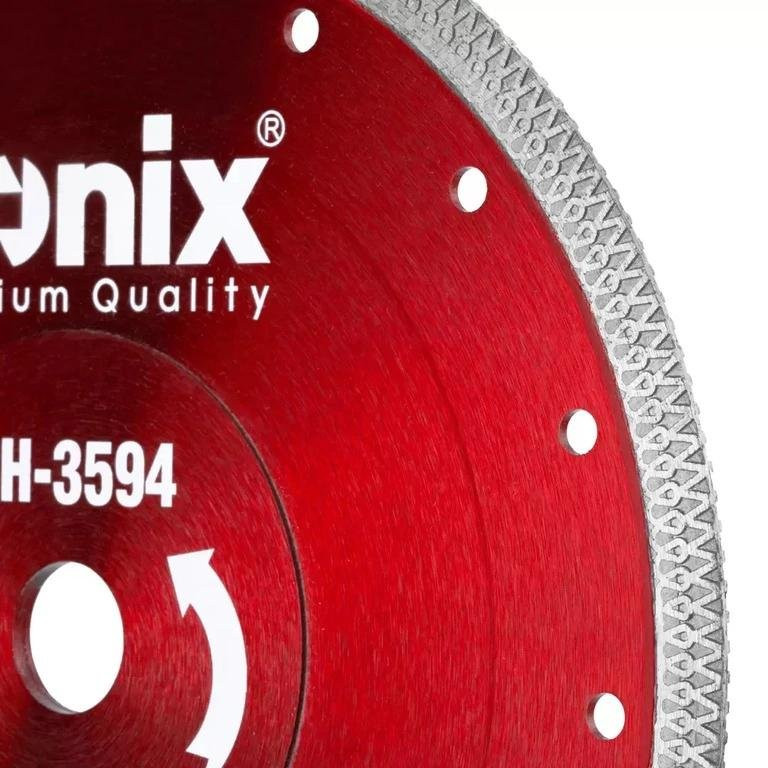

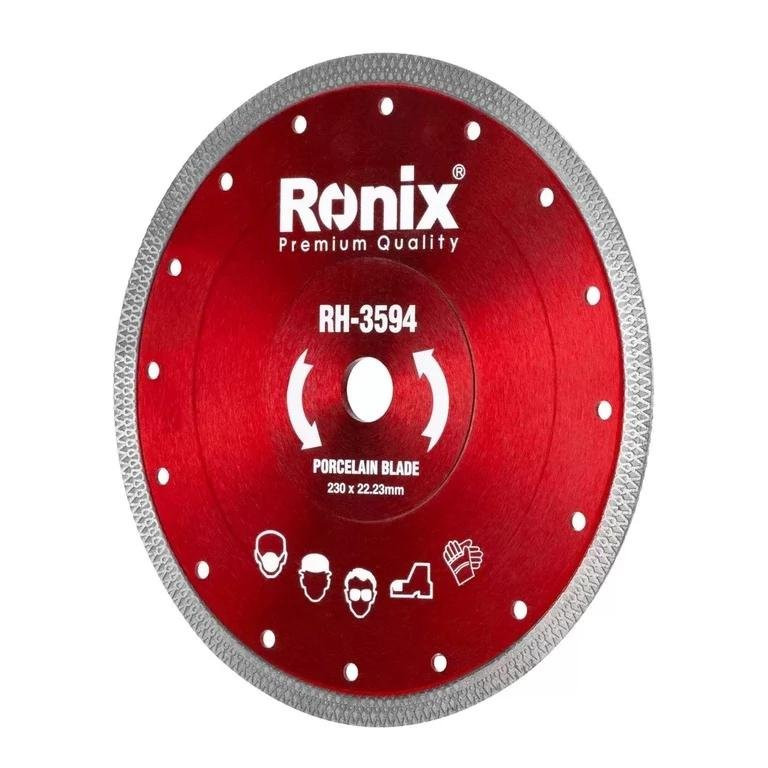

The Ronix RH-3594 is an industrial-grade diamond cutting disc designed for professionals who require the smoothest, most precise finishes on the toughest materials. Featuring a specialized X-Turbo segment type, this 230mm blade is engineered to glide through surfaces with minimal friction, delivering a faster and cooler cut compared to standard discs. It is constructed from premium 65Mn steel with a superior bending resistance of 18 kgf·cm, ensuring maximum durability and stability during high-pressure industrial applications.
The cutting edge utilizes a sophisticated formulation of high-strength synthetic diamonds and rare metal alloys, optimized to slice through hard porcelain, marble, granite, glass, and ceramic tiles with absolute ease. With a 10mm rim height, the RH-3594 offers an exceptionally long service life and is fully compatible with both dry and wet cutting methods. Whether you are using a large angle grinder, a marble machine, or a table saw, this blade provides the speed and precision necessary for high-end masonry and tiling projects.
Features
- X-Turbo Segment Design: Specialized rim geometry ensures rapid material removal and an ultra-smooth gliding sensation for chip-free results.
- Industrial 65Mn Steel Body: Features 18 kgf·cm bending resistance to maintain blade integrity and safety under extreme pressure.
- Premium Diamond & Alloy Tips: High-quality raw material formulation reduces heat buildup and friction for a faster, cooler cutting experience.
- 10mm Extended Rim Height: A taller segment height ensures an extended operational lifespan and superior cost-effectiveness for heavy-duty users.
- Wet & Dry Versatility: Engineered to perform at peak efficiency in both dry cutting and water-cooled applications.
- Multi-Material Mastery: The ultimate blade for cutting hard porcelain, marble, pottery, ceramic tiles, glass, and granite.
- Advanced Precision Manufacturing: Produced using fully automated technology to ensure a perfectly balanced disc and consistent industrial performance.
- High-Velocity Efficiency: Rated for a maximum speed of 6650 RPM and a cutting speed of 80 m/s for rapid completion of large-scale tasks.
Specifications
- Brand: Ronix
- Model: RH-3594
- Disk Diameter: 230 mm
- Arbor Size: 22.23 mm
- Segment Type: X-Turbo
- Segment Height: 10 mm
- Segment Thickness: 2 mm
- Body Material: 65Mn Steel
- Max Speed: 6650 RPM (80 m/s)
- Net Weight: 0.62 kg
- Tools Compatibility: Angle Grinder, Marble Machine, Table Saw

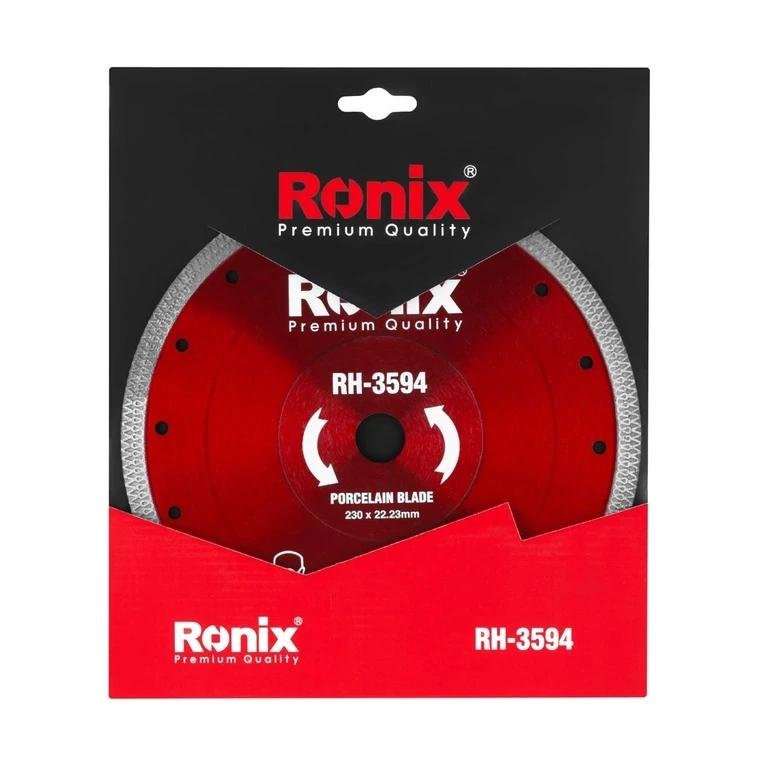

- Packaging: Ronix Color Box
