Features:

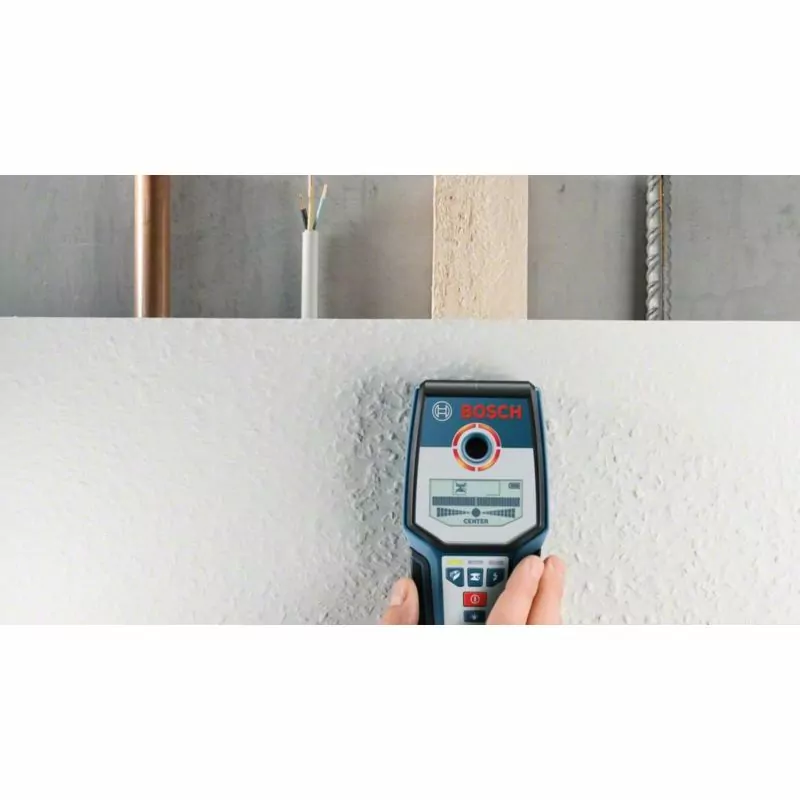

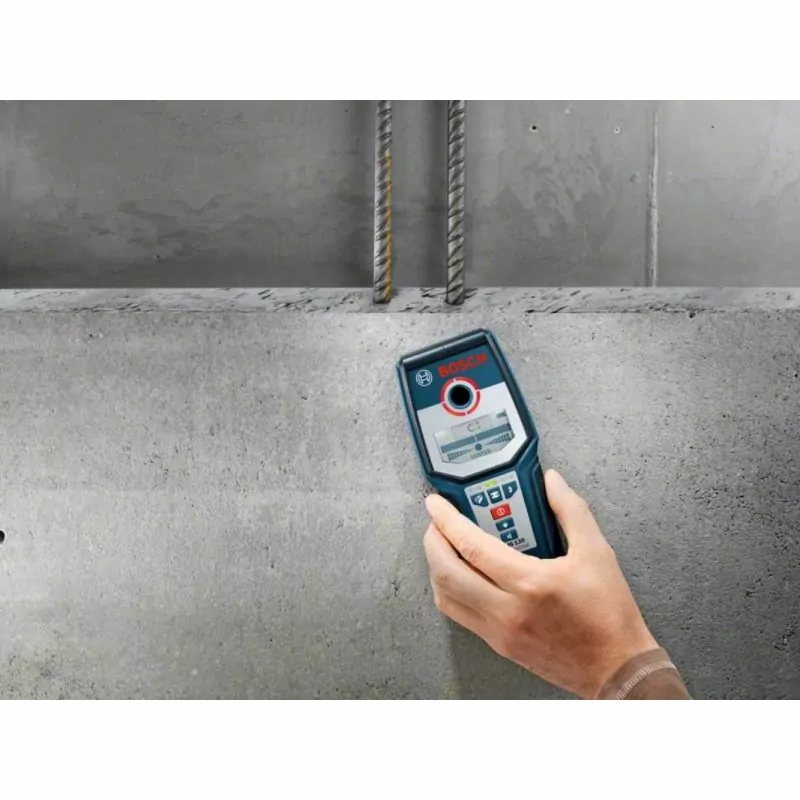

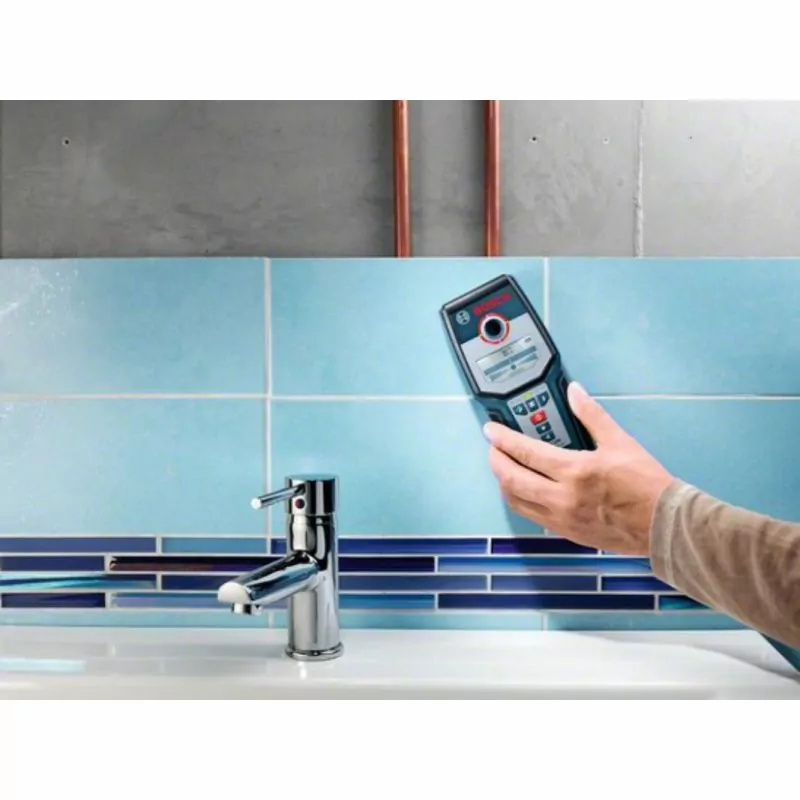

- Detection: The Bosch GMS120 Digital Wall Scanner features multi-mode laser detection for wood studs, metal objects (rebar, studs and steel/copper pipes) and live wiring
- Performance: Features the latest 3 sensor laser technology, offering a wide range of detection performance of up to 4 3/4 inches deep in cured concrete, up to 2 inches for live wiring, up to 3 1/8 inches for copper and up to 1 1/2 inches for wood studs; The accuracy of the product is 0.0625
- Self calibrating: Includes 3 selection modes for wood, metal, and AC wiring; The GMS120 offers automatic calibration from the start and continues to self calibrate through the course of the project for easy and precise detection
- Display: Features an illuminated graphical LCD display to indicate mode, detection strength, and more; The large detection ring flashes green for no object found, orange for object near and red for object found within the sensor range
- Center Finder: This wall scanner includes a center finder that pinpoints the object center with an audible detection signal with an on/off button
Technical data
- Bosch Radar Technology:no
- Max. detection depth:120 mm
- Detectable objects:magnetic metals (e.g. iron), non-magnetic metals (e.g. copper), live cables, wooden substructures
- Detection depth, magnetic metal, max.:120 mm
- Detection depth, non-magnetic metal, max.:80 mm
- Detection depth, live cables, max.:50 mm
- Detection depth, wooden substructures, max.:38 mm
- Wall types
- Drywall, Universal
- Dust and splash protection:IP 54
- Material identification
- Live cable, Metal
- Power supply:1 x 9 V 6LR61
- Automatic deactivation, approx.:5 minutes
- Weight, approx.:0.27 kg
