Samsung 36,000 BTU Floor Standing Inverter Air Conditioner, Heat & Cool, Touch Control AC036TNPPEH/IQ

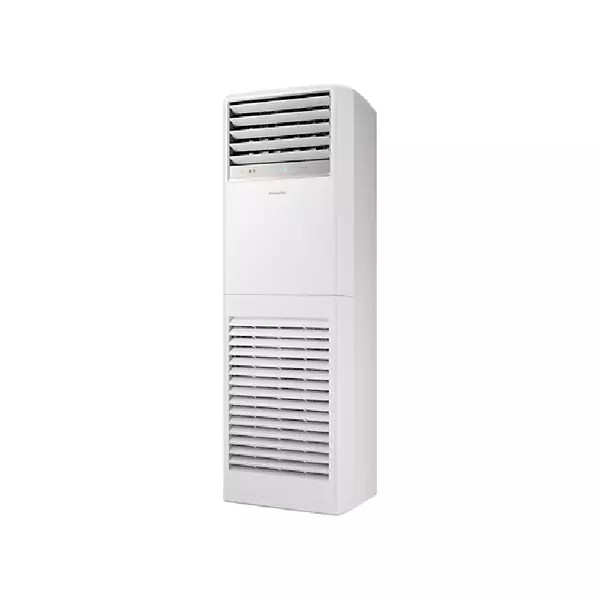

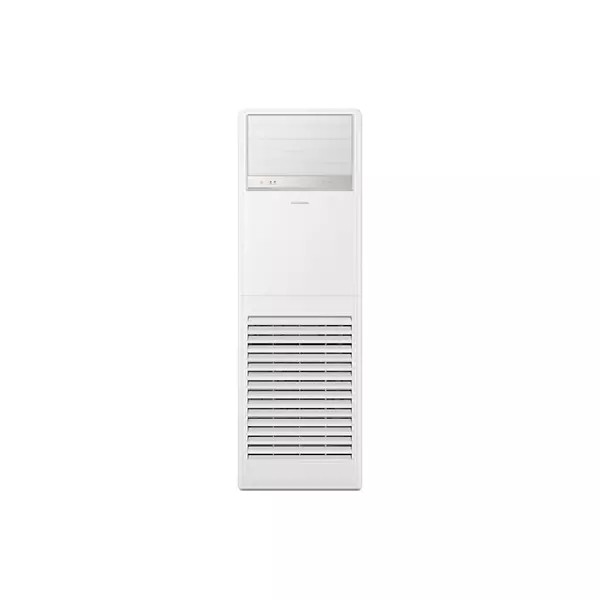

Samsung 36,000 BTU Floor Standing Air Conditioner – Powerful Cooling & Heating for Large Spaces

Cool and heat large rooms effortlessly with this advanced Samsung 36,000 BTU Packaged Air Conditioner (PAC). Designed to deliver even, efficient airflow across wide areas, this floor-standing unit combines powerful performance with smart features to maximize comfort and convenience.

Key Features

1. Broad Coverage & Powerful Airflow:
2. With a fan capable of blowing air up to 20 meters*, this unit cools or heats large spaces quickly and evenly from corner to corner. The enlarged air outlet and powerful fan motor ensure consistent temperature distribution.
3. *Note: 20m airflow and 4-way auto swing are available on 48kW & 60kW models; airflow distance may vary depending on conditions.
4. 4-Way Auto Swing:
5. Automatically circulates air in all directions for thorough room coverage, improving comfort by eliminating cold or hot spots.
6. Auto Shutter:
7. Keeps your AC’s interior clean and hygienic by automatically opening the air vent flaps when in use and closing them when off to prevent dust buildup.
8. Hidden Display & Touch Control:
9. A sleek, minimalist panel design lets you adjust settings easily with a gentle touch. The hidden display keeps the front clean while remaining easy to read.
10. Energy Efficient Heat Pump System:
11. Equipped with a Twin BLDC Rotary compressor and R-410A refrigerant, the system balances powerful cooling and heating performance with energy savings.

Technical Specifications

1. Type: Packaged Air Conditioner (PAC)
2. System Mode: Heat Pump
3. Indoor Unit Model: AC036TNPPEH/IQ
4. Outdoor Unit Model: AC036TXQREH/IQ

Cooling & Heating Capacity:

1. Cooling Capacity: 10.10 kW (11,300 / 34,500 / 42,700 Btu/h)
2. Heating Capacity: 3.0 / 10.8 / 15.5 kW

Energy Efficiency:

1. EER (Cooling): 10.33
2. COP (Heating): 3.42
3. Energy Grade (Cooling): C

Power Specifications:

1. Power Input Cooling: 0.60 / 3.34 / 5.10 kW
2. Power Input Heating: 0.65 / 3.16 / 5.20 kW
3. Current Input Cooling: 3.2 / 15.0 / 22.5 A
4. Current Input Heating: 3.5 / 14.2 / 24.0 A
5. Power Supply (Indoor & Outdoor): Single phase, 220-240V, 50Hz

Piping Connections:

1. Liquid Pipe Diameter: 9.52 mm
2. Gas Pipe Diameter: 15.88 mm
3. Maximum Installation Length: 50 meters
4. Maximum Installation Height: 30 meters

Refrigerant:

1. Type: R-410A
2. Factory Charge: 2.6 kg

Indoor Unit Features:

1. Fan Type: Sirocco
2. Motor Output: 154 W
3. Airflow Rate (High / Mid / Low): 30 / 27 / 23 cubic meters per minute (CMM)
4. Sound Pressure Levels (High / Mid / Low): 47 / 44 / 41 dBA

Indoor Unit Dimensions & Weight:

1. Net Dimensions (W x H x D): 610 x 1850 x 400 mm
2. Net Weight: 44.5 kg
3. Shipping Dimensions (W x H x D): 705 x 1963 x 493 mm
4. Shipping Weight: 50.5 kg

Outdoor Unit Features:

1. Compressor Type: Twin BLDC Rotary
2. Compressor Output: 2.82 kW
3. Oil Type: POE (Polyolester)
4. Initial Oil Charge: 1200 cc
5. Fan Air Flow Rate (Cooling): 76 CMM
6. Sound Pressure Level (Cooling / Heating): 55 dBA

Outdoor Unit Dimensions & Weight:

1. Net Dimensions (W x H x D): 940 x 998 x 330 mm
2. Net Weight: 72.5 kg
3. Shipping Dimensions (W x H x D): 995 x 1096 x 426 mm
4. Shipping Weight: 77.5 kg

Operating Temperature Range:

1. Cooling: -15°C to 54°C
2. Heating: -20°C to 24°C
