Using the inverter technology, Ronix offers the RH-4631 welding inverter for a more compact and efficient device. The device uses high-frequency inverters to switch between AC and DC rapidly. This way, you’ll have a smoother welding arc and as a result, better control over the whole welding process. It allows you to work best with different types of metals with varied thicknesses. The Ronix RH-4631 welding inverter is also portable and rather lightweight so you can take it to different job sites.
Key Features:
Ronix RH-4631 DC Arc Welding Inverter: Compact, Efficient, Portable
The IGBT technology used in this welding inverter provides you with a higher-quality welding session. Also, the reduced energy consumption in this device makes it exceptionally efficient.
Body

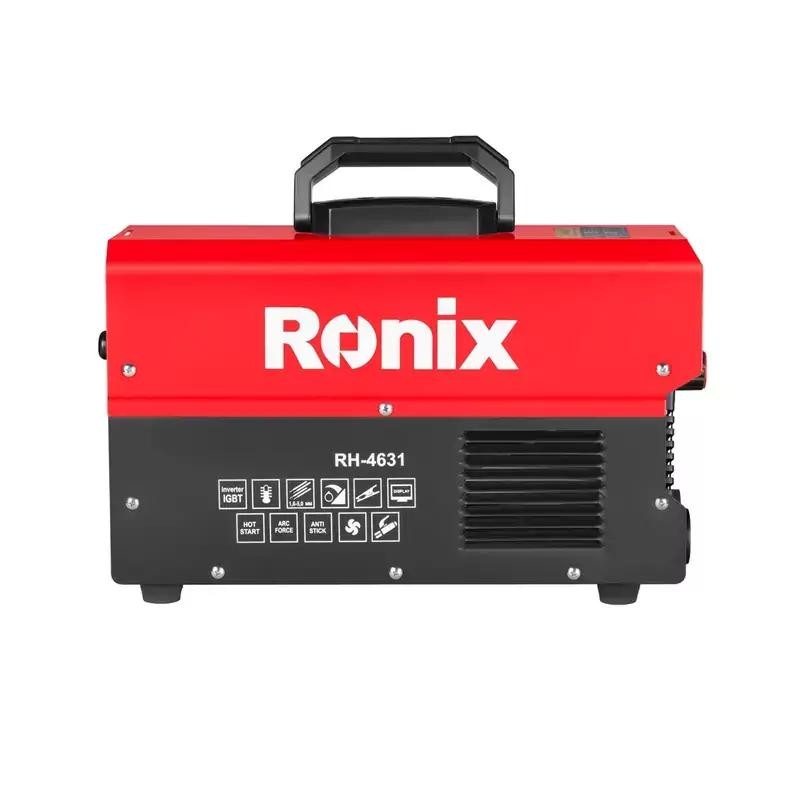

The RH-4631 DC arc welding inverter is your problem-solver when you’re looking for a compact and portable inverter to be applied to a large number of jobs. So, if you’re a hobbyist or a professional welder, you’ll benefit from the easy transportation of this device. Also, the compactness of the RH-4631 allows for more convenience in tiny work spaces.

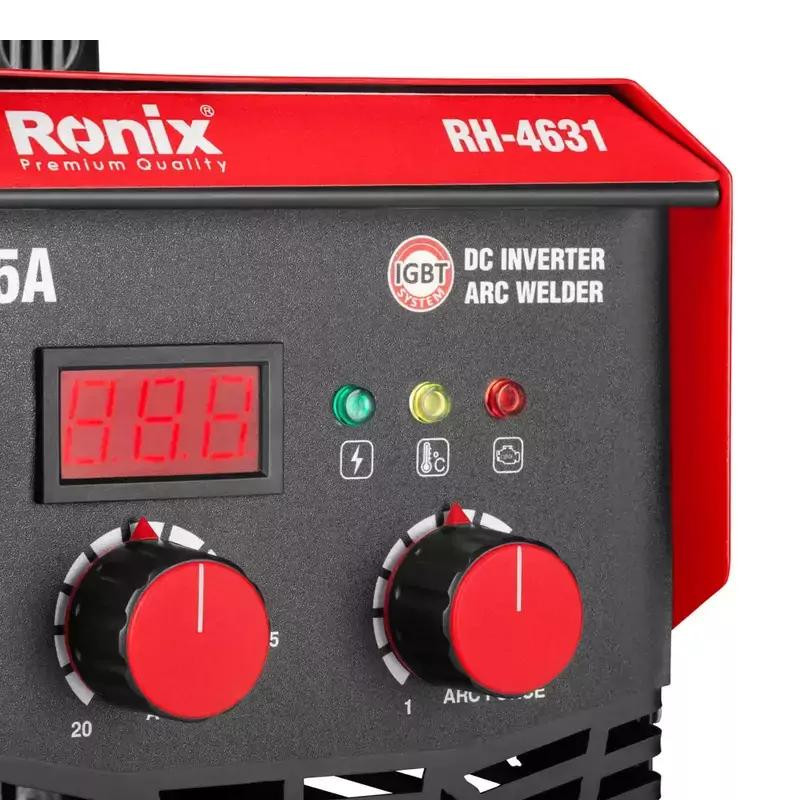

The tool also has a digital display that shows you the current. Also, there are knobs on the body to adjust the current and the arc force.

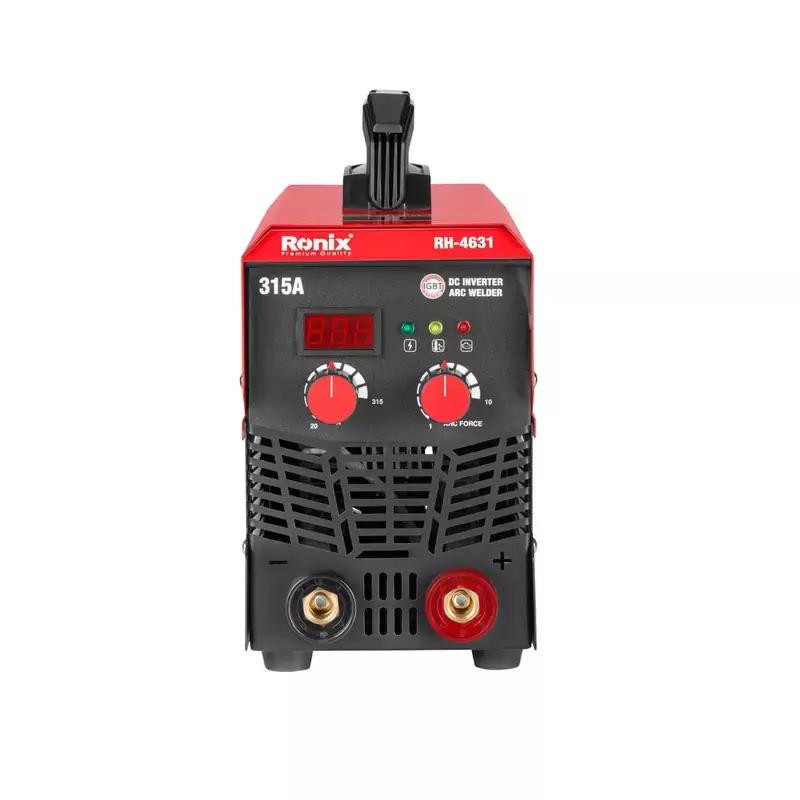

You can also find two connectors on the body: a negative connector and a positive connector.

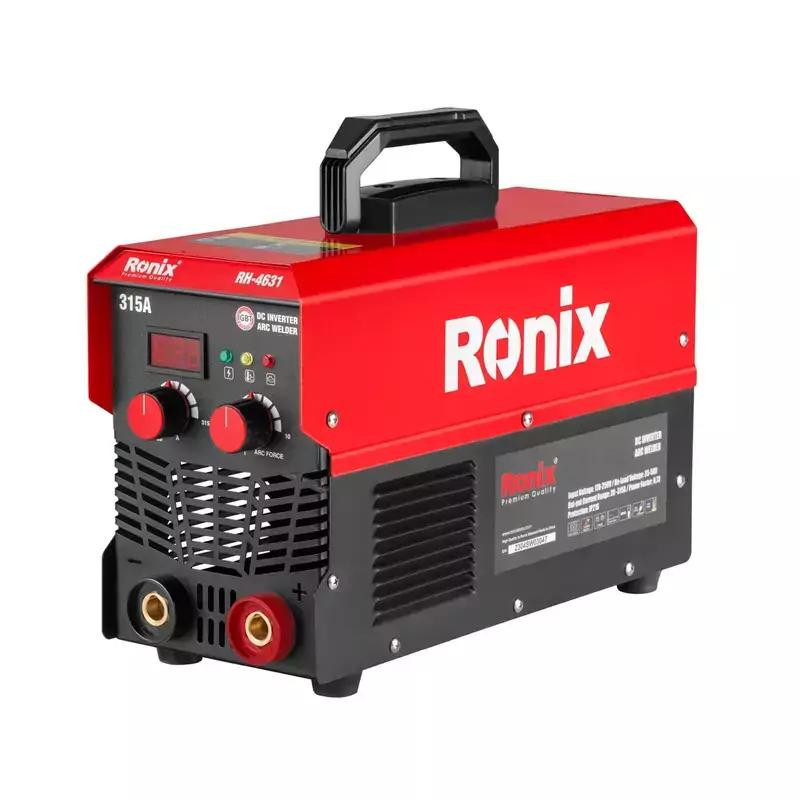

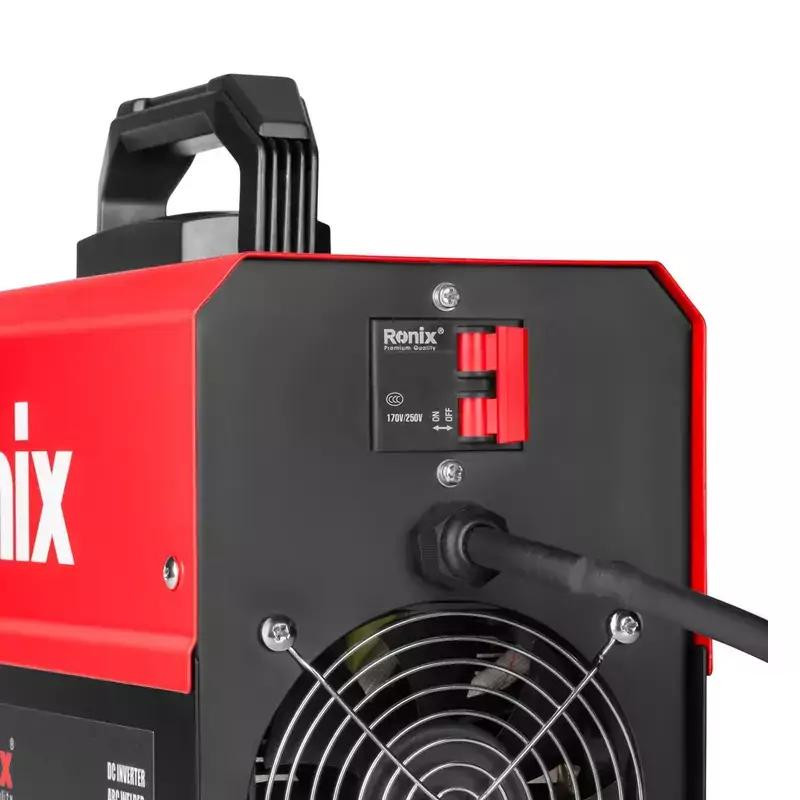

The portability of the Ronix RH-4631, alongside the compact design and the lighter weight, is provided by the handle placed on the top of the device.
Safety
The RH-4631 welding inverter is equipped with automatic short-circuit current protection that gives you extra safety while working with the machine. The other features of this device include easy ignition, less spark, and excellent arc strike performance on rusted surfaces.
The device offers you multi-protection of over voltage, over heat, over current, and overload. This way, you can rest assured that you’ll have a safe welding session without wearing your device down or causing damage.
Electrode
The electrode diameter of RH-4631 ranges from 1.6 to 5.0 mm which means you can get a wide range of tasks done with just a single welding inverter.
Anti-Stick Function
The anti-sticking feature helps the fact that you can use this tool with different welding electrodes.
Cooling System
The RH-4631 is equipped with a professional cooling system and this helps with efficiency and work longevity.
The Circuit
The RH-4631 welding inverter has a full bridge inverter circuit that allows for the conversion of DC into AC with better efficiency and control. Also, the device is equipped with 3-board technology for better performance, efficiency, or functionality.
Packaging

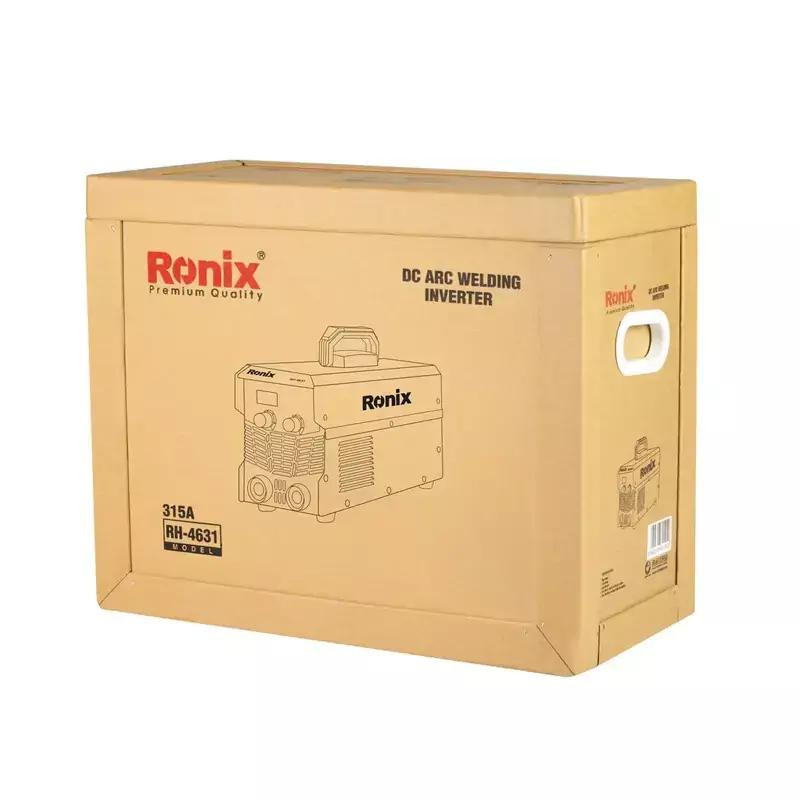

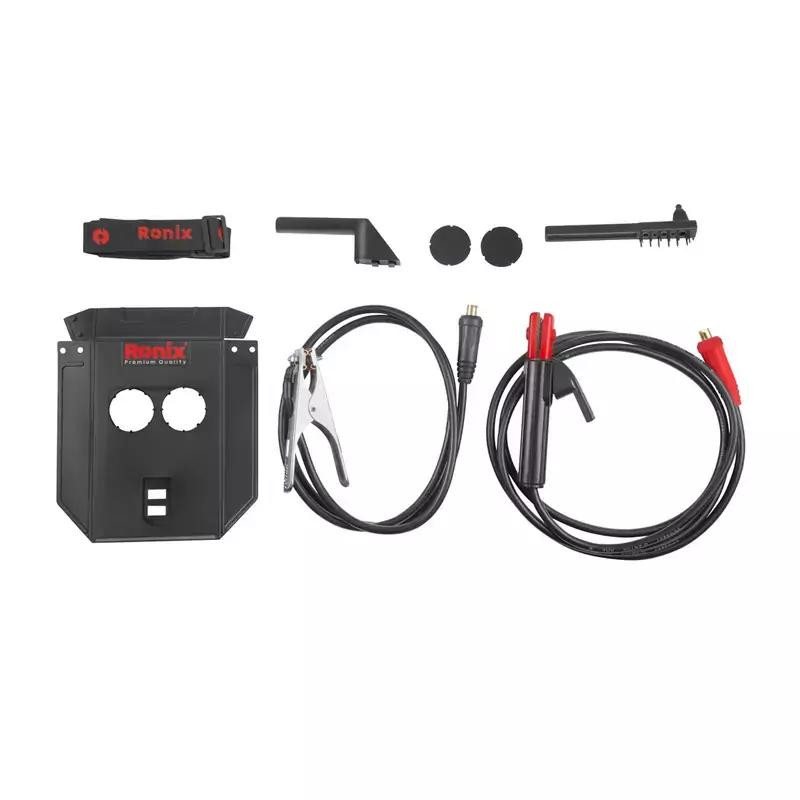

The Ronix RH-4631 comes with one piece of 3×25 MM CCA cable with a 300 A holder, a piece of 2×25 MM CCA cable with a 300 A earth clamp, a mask, a brush, a strap and packaged in a color box.
Features:
- IGBT technology for better welding quality , greater welding penetration ,reduced energy consumption and increased efficiency
- Unbeatable automatic short circuit current protection, easy ignition, less spark, provides excellent arc strike performance at rust surface
- Multi protection of over voltage, over heat, over current and over load protection
- Hot start, anti-stick, less spark, reliable. Ideal welding equipment for entry-level welder.
- Digital display provides highly accurate welding
- Professional cooling system in order to increase efficiency and continuance welding
- Equipped with full bridge inverter circuit and 3 board technology
Specifications:
- Brand: Ronix
- Model: RH-4631

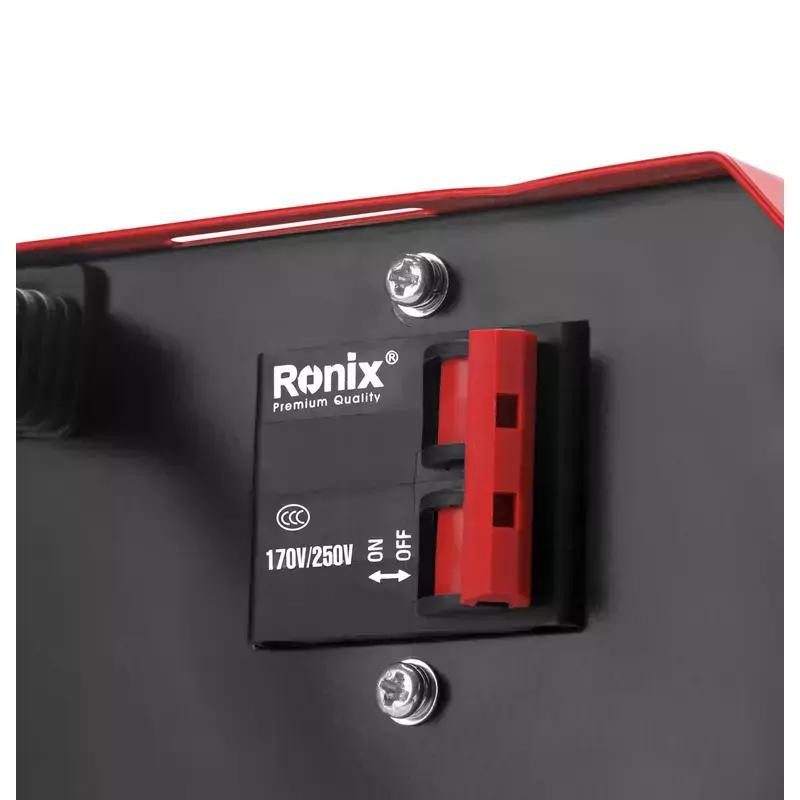

- Input voltage: 170V-250V
- No-Load voltage: 65-75V
- Out-put Current Range: 20-315A
- Rated Out-put Voltage: 20.8-30V
- Max Input Power Capacity: 12KVA
- Max Input Current: 55A
- Power Factor: 0.73
- Duty-cycle (25°C): 100%
- Insulation Class: F
- Protection Class: IP21S
- Electrode Diameter: 1.6-5.0mm
- Supplied in: honey-con box
- Accessories: "3*25MM CCA cable with 300A holder 1pc, 2*25MM CCA cable with 300A earth clamp 1pc, mask 1pc, brush 1pc Strap 1pc"
