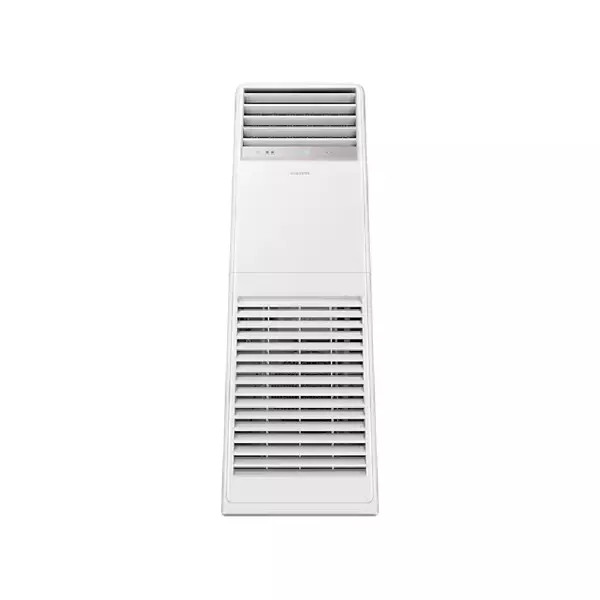

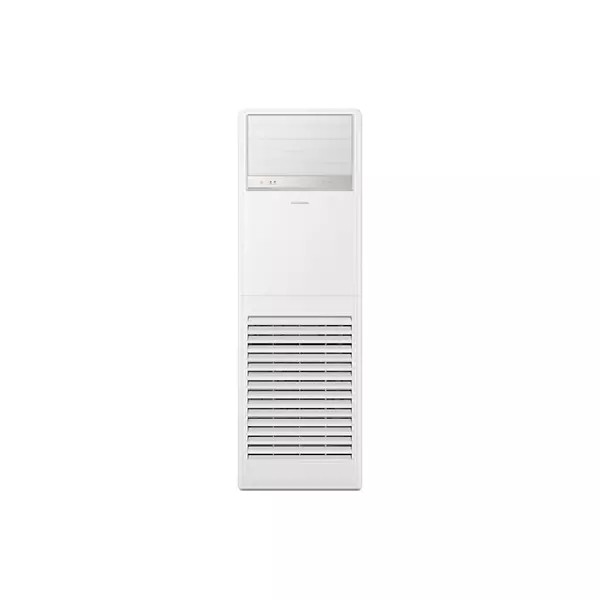

Samsung Air Conditioner, 48k BTU Hot & Cold, Floor Standing AC, Auto Shutter, Hidden Display & Touch Control, 20m Long Wind with 4-way Auto Swing AC048TNPPEH/IQ

General Specifications

1. Type: PAC (Packaged Air Conditioner)
2. System Mode: Heat Pump
3. Indoor Unit Model: AC048TNPPEH/IQ
4. Outdoor Unit Model: AC048TXQREH/IQ

Cooling & Heating Capacity

1. Cooling Capacity:
2. 13.20 kW
3. 12,600 / 45,000 / 51,900 Btu/h
4. Heating Capacity:
5. 3.5 / 14.7 / 17.0 kW

Energy Efficiency

1. EER (Cooling): 10.42
2. COP (Heating): 3.3
3. Energy Grade (Cooling): C

Power Specifications

1. Power Input:
2. Cooling: 0.90 / 4.32 / 5.70 kW
3. Heating: 0.70 / 4.45 / 7.10 kW
4. Current Input:
5. Cooling: 3.5 / 19.2 / 25.9 A
6. Heating: 3.8 / 19.7 / 32.0 A
7. Power Supply (Indoor and Outdoor): 1Φ, 220-240V, 50Hz

Piping Connections

1. Liquid Pipe Diameter: 9.52 mm
2. Gas Pipe Diameter: 15.88 mm
3. Max. Installation Length: 75 m
4. Max. Installation Height: 30 m

Refrigerant

1. Type: R-410A
2. Factory Charge: 2.9 kg

Indoor Unit Features

1. Fan Type: Sirocco
2. Motor Output: 154 W
3. Airflow Rate:
4. High: 37 CMM
5. Mid: 32 CMM
6. Low: 27 CMM
7. Sound Pressure Levels:
8. High: 51 dBA
9. Mid: 48 dBA
10. Low: 45 dBA

Dimensions and Weight (Indoor Unit)

1. Net Dimensions (WxHxD): 610 x 1850 x 400 mm
2. Shipping Dimensions (WxHxD): 705 x 1963 x 493 mm
3. Net Weight: 44.5 kg
4. Shipping Weight: 50.5 kg

Outdoor Unit Features

1. Compressor Type: Twin BLDC Rotary
2. Compressor Output: 4.19 kW
3. Oil Type: POE (1700 cc initial charge)
4. Fan Air Flow Rate: 110 CMM
5. Sound Pressure Levels:
6. Cooling / Heating: 55 dBA

Dimensions and Weight (Outdoor Unit)

1. Net Dimensions (WxHxD): 940 x 1210 x 330 mm
2. Shipping Dimensions (WxHxD): 995 x 1388 x 426 mm
3. Net Weight: 86.5 kg
4. Shipping Weight: 95.5 kg

Operating Temperature Range

1. Cooling: -15°C ~ 54°C
2. Heating: -20°C ~ 24°C

This Packaged Air Conditioner (PAC) is a high-performance solution with excellent cooling and heating capacities, an energy-efficient system, and versatile installation options. It is engineered to operate in a wide temperature range, ensuring year-round comfort in both residential and commercial environments.
