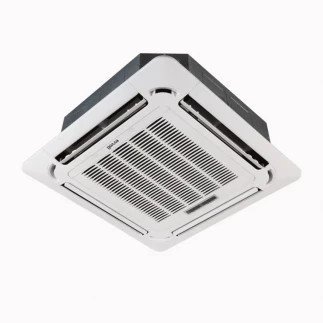

Evvoli 24,000 BTU Ceiling Cassette Air Conditioner | Inverter Cooling & Heating | R410A | Golden Fin | 360° Airflow

The Evvoli cassette-type air conditioner offers reliable, energy-efficient performance with both cooling and heating capabilities. Featuring a slim design, 360° airflow, and a golden-coated condenser and evaporator, it ensures optimal indoor comfort for medium-sized commercial or residential spaces.

Product Highlights

1. Dual Function – Efficient cooling (23,800 BTU) and heating (25,248 BTU) for year-round comfort
2. High Efficiency – Exceptional EER of 3.76 in T1 cooling and COP of 4.15 in heating
3. Golden Fin Protection – Corrosion-resistant coated condenser and evaporator for extended durability
4. 360° Air Distribution – Even airflow coverage for consistent comfort in every corner
5. Slim Body Design – Fits discreetly into ceiling grids or compact spaces
6. Internal Drain Pump – Built-in pump ensures efficient condensate removal
7. Louver Position Memory – Remembers the last airflow direction setting
8. Flexible Installation – Compatible with both remote and wired controls for added convenience

Technical Specifications

Cooling Performance:

1. Capacity (T1): 23,800 BTU/h | Current: 8.08 A | EER: 3.76 W/W
2. Capacity (T3): 21,200 BTU/h | Current: 9.97 A | EER: 2.73 W/W

Heating Performance:

1. Capacity: 25,248.8 BTU/h
2. Current: 7.83 A
3. COP: 4.15 W/W

Maximum Performance:

1. Max Power Input: 3200 W
2. Max Current: 14.1 A
3. Max Air Flow: 1490 m³/h

Refrigerant System:

1. Refrigerant Type: R410A
2. Factory Charge: 2200 g
3. Piping: Liquid Φ9.52 mm | Gas Φ15.9 mm
4. Max Discharge Pressure: 4.8 MPa
5. Max Suction Pressure: 1.5 MPa

Power Supply:

1. Voltage: 220–240 V
2. Phase: 1
3. Frequency: 50 Hz

Indoor Unit Specifications:

1. Evaporator: Copper, 2 rows, Φ7 mm pipe
2. Fan Motor: ZKFN-125-8-1
3. Max Noise Level: 47.5 dB(A)
4. Dimensions (Body): 830 × 830 × 245 mm
5. Dimensions (Panel): 950 × 950 × 55 mm
6. Net Weight (Body/Panel): 24.5 kg / 6 kg
7. Gross Weight (Body/Panel): 29.2 kg / 9 kg

Outdoor Unit Specifications:

1. Compressor: GMCC Rotary (Model: ATF235D22TMT)
2. Condenser: Copper, 2.6 rows, Φ7 mm
3. Fan Motor: ZKFN-120-8-2
4. Max Noise Level: 58 dB(A)
5. Dimensions: 946 × 410 × 810 mm
6. Net Weight: 58.6 kg
7. Gross Weight: 63.2 kg

Ideal For:

✔ Mid-sized Offices

✔ Classrooms

✔ Cafés and Restaurants

✔ Retail Stores

✔ Reception Areas
