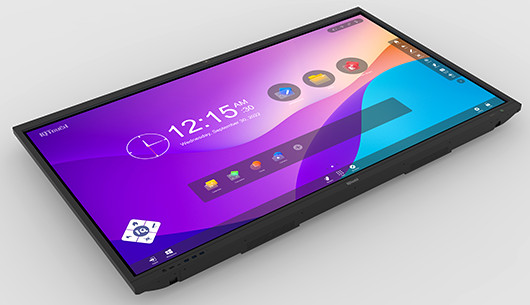

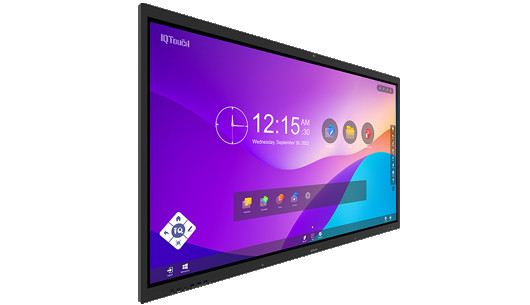

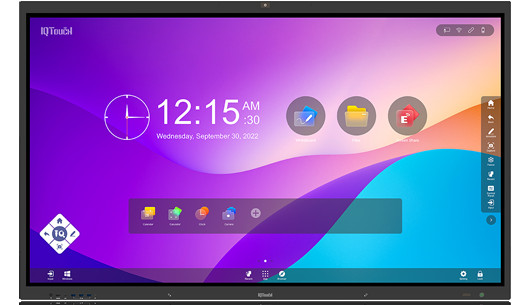

The TE1300 LE086MD is a premium 86-inch interactive flat panel designed for classrooms, conference rooms, and collaborative environments. With 4K UHD resolution, 40-point multi-touch, and built-in smart features, it delivers professional-grade performance for both education and business.
Key Features
- Display Size: 86 inches
- Resolution: 4K UHD (3840 × 2160)
- Brightness: 400 cd/m²
- Contrast Ratio: 5000:1 (Dynamic)
- Viewing Angle: 178° (H/V)
- Touch Technology: Infrared, 40-point multi-touch (Windows) / 20-point (Android)
- Writing Accuracy: ≤1mm with finger or passive stylus
- Minimum Touch Object: 2mm
- Glass: 4mm Tempered, Zero Bonding (MOHS 7 hardness)
- Built-in Camera: 13MP 4K camera for video conferencing
- Microphones: 8-array microphone system
- Speakers: 2 × 15W
- Operating System: Android 11.0 + IQ OS
- Processor: Quad-core A55, 1.9GHz
- GPU: ARM Mali-G52 MP2
- Memory & Storage: 4GB RAM + 32GB ROM
- Connectivity: Wi-Fi (2.4G/5G), Bluetooth 5.0, multiple HDMI/USB/AV inputs
- Power Consumption: ≤450W (Standby ≤0.5W)
- Backlight Lifetime: 50,000 hours
Product Specifications
- Panel Type: TFT with Direct LED (DLED) backlight
- Aspect Ratio: 16:9
- Response Time: 6ms
- Frequency: 60Hz
- Display Colors: 10-bit (1.07 billion)
- Touch Resolution: 32768 × 32768 px
- Writing Height: 3mm
- Supported OS: Windows, Mac OS, Android, Chrome OS, Linux
- Front Controls: Power button

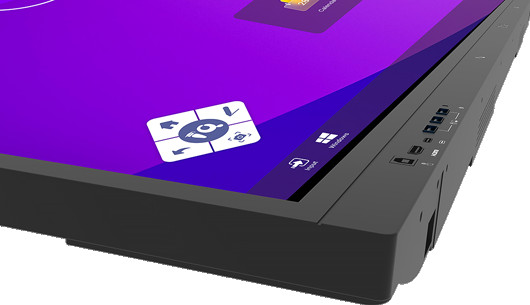

- Front Ports: 2 × USB 3.0 (Android & PC), HDMI IN 2.0, Touch-USB, Type-C (USB 2.0, Video, Audio, Touch, 65W)
- Rear/Side Inputs: HDMI, VGA, AV, RS232, YPBPR, Audio, RJ45 LAN, USB 2.0 & 3.0
- Outputs: HDMI 2.0 (4K 60fps), Coax SPDIF, AV, Earphone
- Sensors: Light and temperature monitoring
Dimensions & Weight
- Net Weight: 66 kg ±1.5
- Gross Weight: 81 kg ±1.5
- Product Size: 1959 × 1170 × 89 mm
- Packing Size: 2044 × 1262 × 200 mm
- VESA Mounting: 800 × 400 (4-M8 screw holes)
