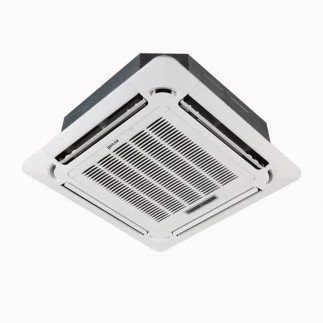

Evvoli 48,000 BTU Ceiling Cassette Air Conditioner | Inverter Cooling & Heating | Panasonic Scroll Compressor | R410

The Evvoli 48,000 BTU ceiling cassette air conditioner delivers powerful year-round comfort with high-efficiency cooling and heating. Equipped with a durable Panasonic scroll compressor, 4-way airflow distribution, and precise remote control, it's the ideal HVAC solution for commercial and large indoor spaces.

Product Highlights

1. High-Capacity Output – 48,000 BTU cooling / 50,000 BTU heating for large rooms or open-plan areas
2. All-Season Comfort – Efficient heating and cooling functions with wide operating temperature range
3. Panasonic Scroll Compressor – Reliable and efficient performance with internal thermal protection
4. 4-Way Cassette Airflow – Even air distribution across the room from ceiling mount
5. Extended Piping Capability – Up to 50m pipe length and 30m level difference for flexible installations
6. Durable Coil Design – Hydrophilic aluminum fins with inner-grooved copper tubes for optimal heat exchange
7. Quiet Indoor Operation – Low noise levels (44–51 dB(A)) make it suitable for offices and meeting rooms
8. Remote Control Included – Easily control all functions including cooling, heating, fan speed, and timer

Technical Specifications

Cooling Performance:

1. Capacity: 48,000 BTU/h
2. Input Power: 5520 W
3. Rated Current: 9.4 A
4. Energy Efficiency Ratio (EER): 2.55 W/W

Heating Performance:

1. Capacity: 50,000 BTU/h
2. Input Power: 4970 W
3. Rated Current: 8.4 A
4. Coefficient of Performance (COP): 2.95 W/W

Compressor:

1. Type: Scroll
2. Model: Panasonic C-SB373H8A
3. Input Power: 4540 W
4. Thermal Protection: Internal

Refrigerant:

1. Type: R22
2. Charge: 3.45 kg
3. Piping: 3/8″ (Liquid) & 3/4″ (Gas)
4. Max Piping Length: 50 m
5. Max Elevation: 30 m

Indoor Unit:

1. Airflow (Hi/Med/Lo): 1800 / 1600 / 1400 m³/h
2. Sound Level: 51 / 48 / 44 dB(A)
3. Dimensions (Body): 840 × 840 × 245 mm
4. Panel Dimensions: 950 × 950 × 55 mm
5. Net Weight (Body): 27.5 kg | (Panel): 5 kg

Outdoor Unit:

1. Fan Motor Qty: 2
2. Noise Level: 64 dB(A)
3. Dimensions: 900 × 350 × 1170 mm
4. Net Weight: 94 kg

Operating Conditions:

1. Indoor Temperature Range: 17–32°C (Cooling), 0–30°C (Heating)
2. Outdoor Temperature Range: 18–52°C (Cooling), -7–24°C (Heating)

Ideal For

✔ Restaurants

✔ Boardrooms

✔ Hotels

✔ Clinics

✔ Commercial Spaces up to ~90–100 m²
