Digital multimeters (DMMs) are versatile electronic instruments used for measuring various electrical parameters. They are essential tools for professionals in the electrical, electronics, and telecommunications industries, as well as for hobbyists and DIY enthusiasts. Digital multimeters work by providing precise measurements of voltage, current, resistance, and continuity. They typically feature a digital display that shows the readings, along with a selection dial or buttons to choose the desired measurement function. DMMs use probes or test leads to make electrical connections and measure the desired parameters. Ronix RH-9602 is such a multimeter that features a large LCD with the ability to read various electric parameters in addition to temperature with excellent accuracy. If you are looking for a jack-of-all-trades multimeter that offers accurate results fast, Ronix RH-9602 is the one to .
Key Features:

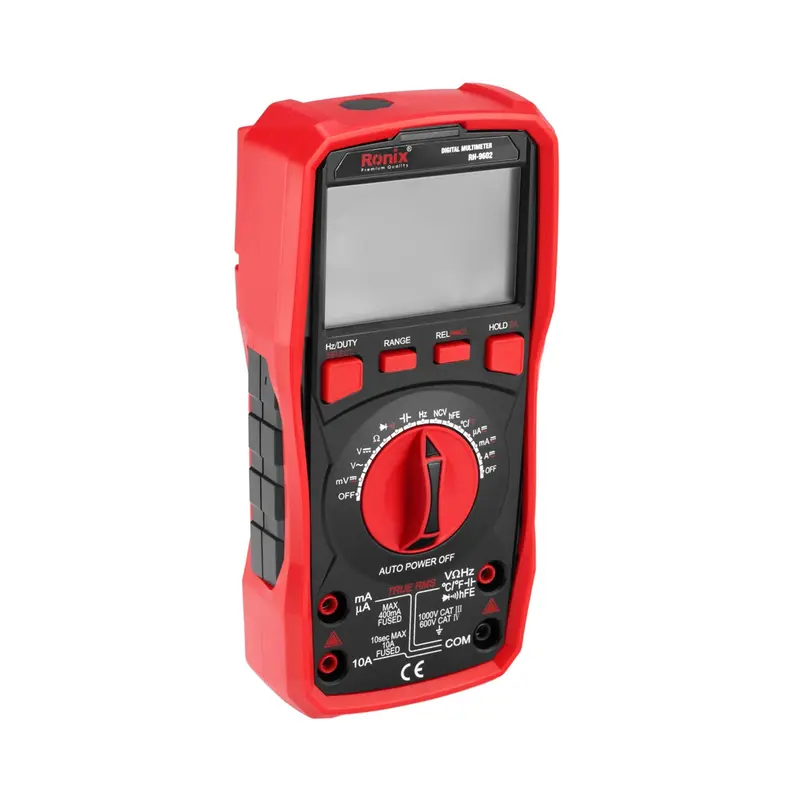

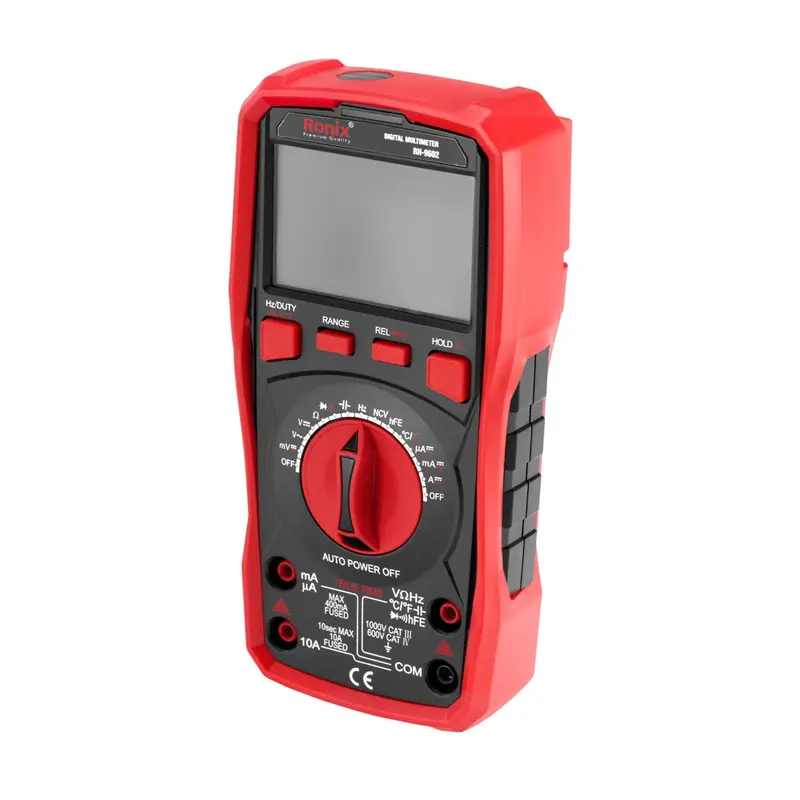

Ronix RH-9602, Digital Multimeter:

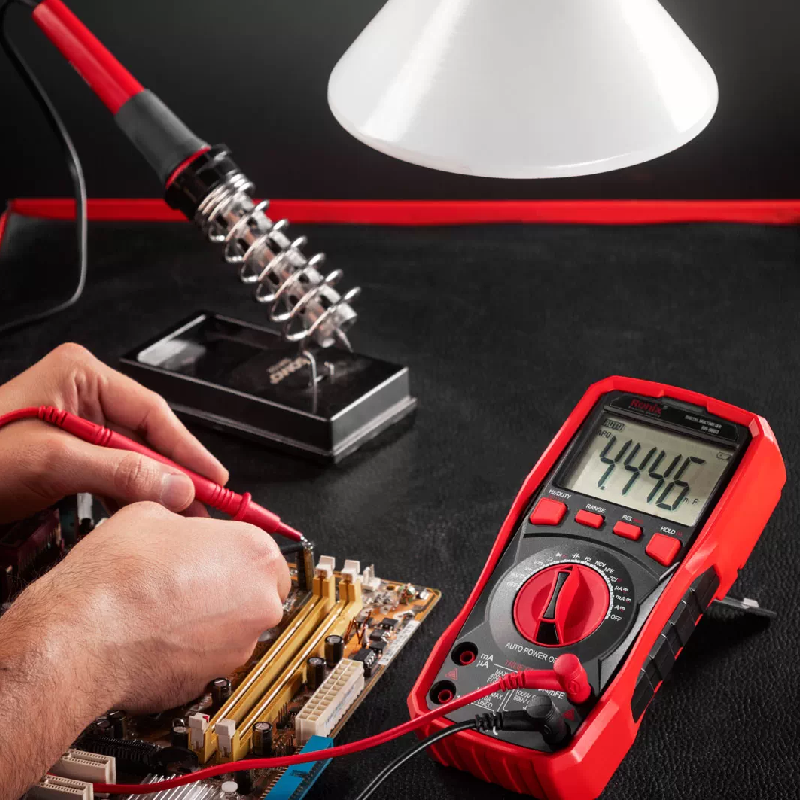

Users can benefit from digital multimeters in a range of scenarios, from troubleshooting electrical circuits and diagnosing faults in electronic devices to testing batteries, checking the integrity of wiring, and verifying the performance of various components. They are crucial for tasks like installing and repairing electrical systems, calibrating equipment, and ensuring electrical safety compliance. With their accuracy, reliability, and versatility, digital multimeters are indispensable tools for anyone working with electrical systems or engaging in electrical projects. Ronix RH-9602 is designed with all of the aforementioned scenarios and use cases in mind and is ready to help you work in any situation while also creating accurate results. Keep scrolling to learn more about its features and capabilities.
Measuring capabilities:
Multimeters are the best and the most reliable tool to offer measurements in a wide variety of scenarios and situations. Ronix RH-9602 is no exception to this and offers the following measurement capabilities. It can read DC and AC currents of 400uA/4000uA/40mA/400mA/10A in addition to AC voltages of 4V/40V/400V/750V and DC voltages of 400mV/ 4V/ 40V/ 400V/ and 1000V. When it comes to resistance, our RH-9602 model can measure 400Ω/ 4kΩ/ 40kΩ/ 400kΩ/ 4MΩ/ and 40MΩ while also having the ability to measure capacitances of 10nF 100nf/ 1uf/ 10uf/ 100uf/ 1mF/ 10mF/ and 100mF and frequencies of 100hz/ 1000hz/ 10khz/ 100khz/ 1mhz/ and 30mhz. Ronix RH-9602 is not just limited to electric measurements however, it can also help you read temperatures from -20 to 1000 degrees Celsius (-4 to 1832 degrees Fahrenheit). Our RH-9602 model has an input impedance of 10МΩ alongside a sampling rate of 3 times per second and responds to AC frequencies of 40 to 400Hz. Ronix RH-9602 can offer all of the aforementioned measuring capabilities using a few AAA batteries which are also used for powering its 70*50mm LCD that feature a bright backlight.
Body:

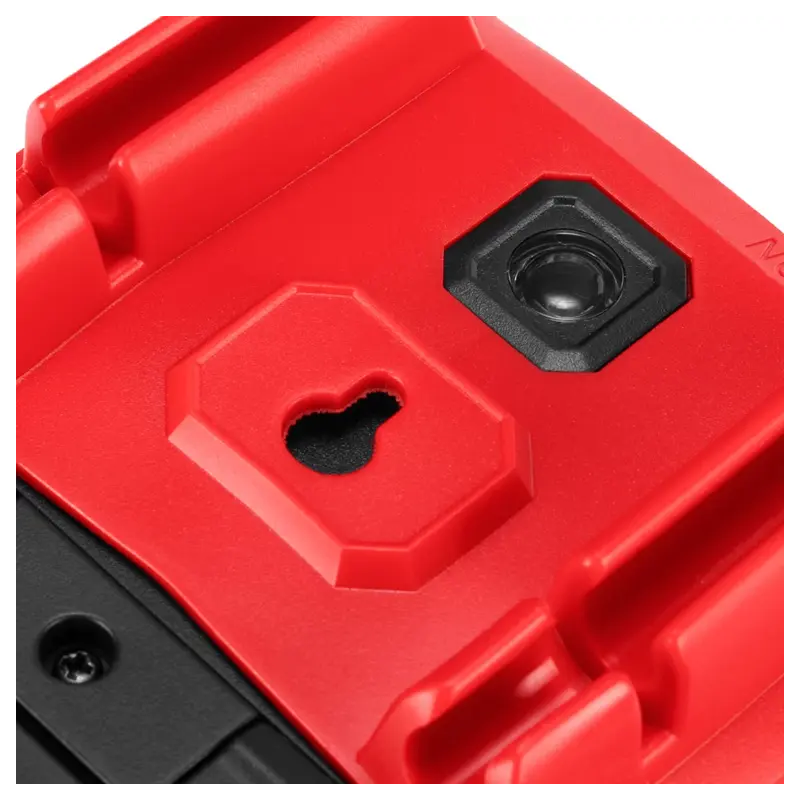

Ronix RH-9602 weighs 420g with dimensions of 190*93.5*37mm. It is made of ABS plastic and can work in environments that are 0 to 40 degrees Celsius in addition to having safety ratings of 1000V CATIII and 600V CATIV. Our RH-9602 model features a flashlight which can be quite handy while working in darker environments. Furthermore, this model is equipped with a continuous buzzer, a low battery indicator, an analog bat graph, and shockproof protection while also having the ability to save data and offer true RMS capability. When not in use, Ronix RH-9602 automatically turns off to prevent battery drainage so you can get the most out of each battery pack that you add to it.
Accessories and packaging:

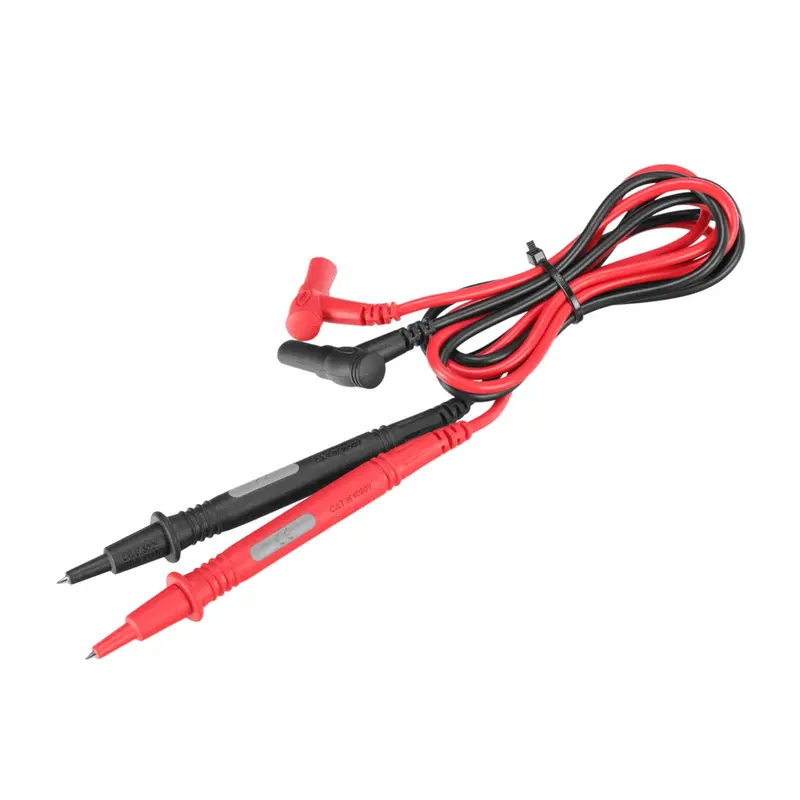

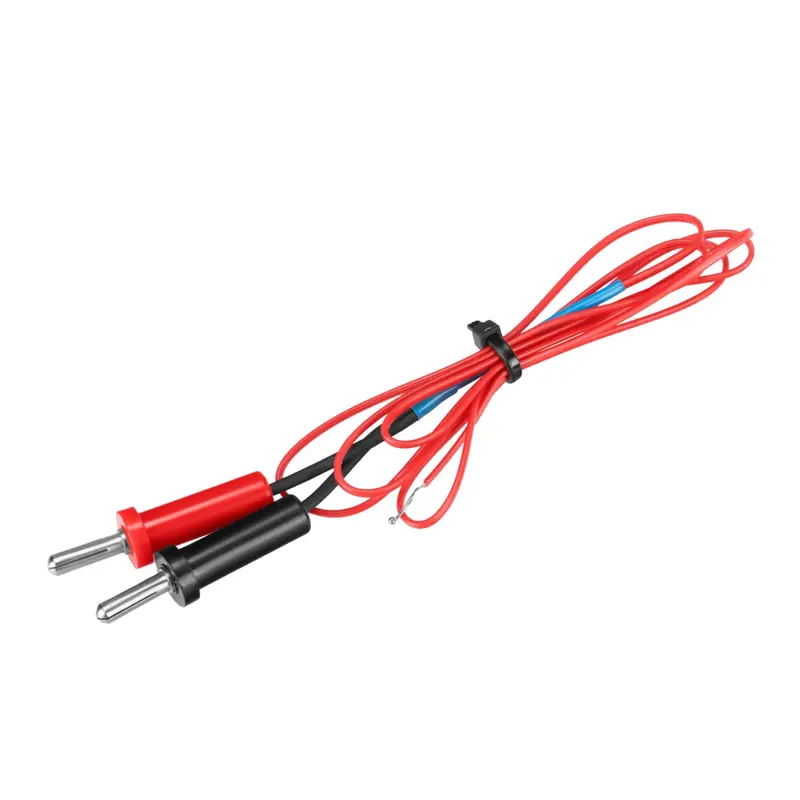

Our RH-9602 model comes included with 4 AAA batteries in addition to a test and a temperature probe. These accessories and the device itself come packaged in a Ronix color box with its iconic red color.
Features:
- Practical Digital Multimeter which can accurately measure the value of various parameters like AC/DC current, AC/DC voltage, frequency, resistance, continuity, diode, capacitance, temperature, non-contact AC Voltage (NCV) detection, and live detection.
- Overload protection for all measurement range
- Low input impedance helps to prevent false readings due to ghost voltage
- The flashlight function bring comfort and safe work in dark spaces
- Provide with Non-contact AC Voltage detection function
- Achieving a high level of safety in a compact body and lightweight design
- Robust body design with shockproof protection
- Auto power off within 15 minutes if there is no operation, helps conserve the battery
- Designed and conforms to IEC 61010-1-2010 Standard, safe and reliable
- Ideal for electrical equipment testing and maintenance
Specifications:
- Brand: Ronix
- Current DC: 400uA/4000uA/40mA/400mA/10A
- Model: RH-9602
- DC Voltage Range: "40mV/400mV/4V/40V/400V/ 1000V"
- AC Voltage Range: 40mV/400mV/4V/40V/400V/750V
- DC Current Range: 400uA/4000uA/40mA/400mA/4A/10A
- AC Current Range: 400uA/4000uA/40mA/400mA/4A/10A
- Resistance Range: 400Ω/4k Ω/40k Ω/400k Ω/4M Ω/40MΩ
- Capacitance Range: "6nF/60nF/600nF/6uF /60uF/600uF /6mF/60mF/100 mF"
- Frequency Range: 10hz/100hz/1000hz/10khz/100khz/1mhz/20mhz
- Temperature Range: (-20～1000)℃ /(-4～1832)℉
- Diode Test: yes

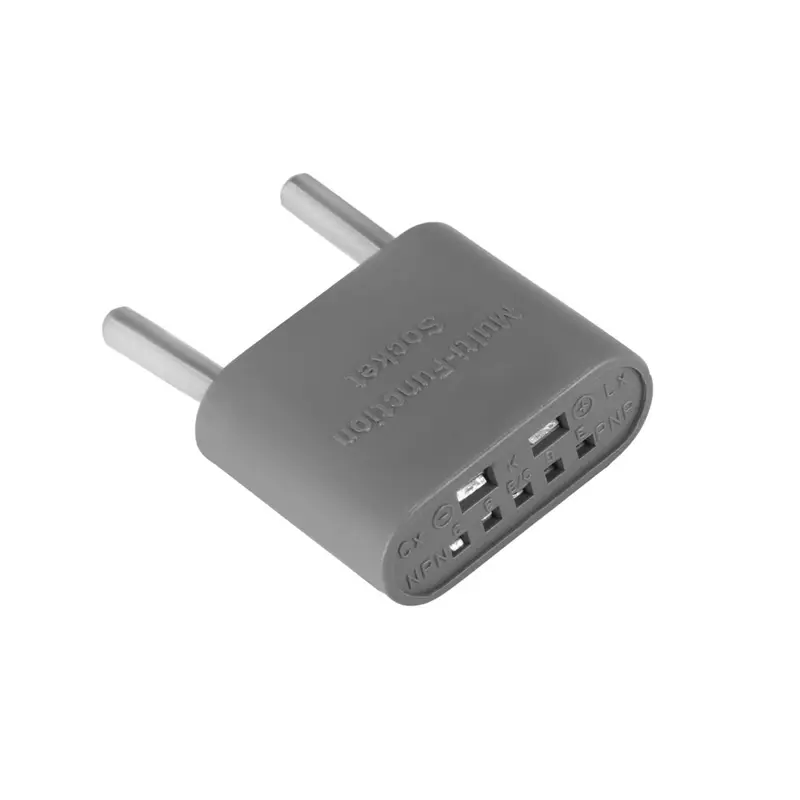

- Transistor test: Yes
- NCV: yes
- buzzer continuity: Yes
- Flashlight: Yes
- Low battery indication: Yes
- backlight: Yes
- Data hold: Yes
- True RMS: Yes
- Auto Power Off: Yes
- Analog Bar Graph: No
- shockproof protection: Yes
- Duty Cycle: yes
- input impedance: 10МΩ
- Sampling rate Approx.: 3times/second
- AC Frequency Response: 40Hz~1k Hz
- Operation Modes: Auto /manual
- Max. Exhibition: 3999Counts
- LCD Size: 68.2*47.9 mm
- Body Material: ABS
- Power Supply: 1.5V AAA battery
- operating temperature range: ℃(0 ~ 40)
- Weight Approx: 395g (include four 1.5V batteries)

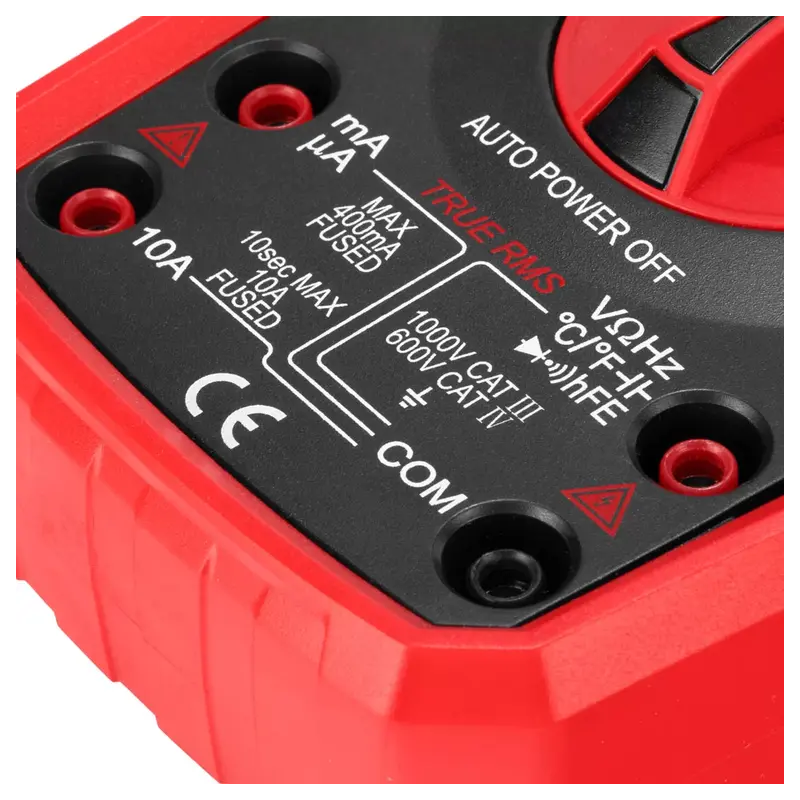

- Safety Rating: "1000V CATIII 600V CATIV"
- Dimensions: 186mm×92mm ×52mm
- Supplied In: Color box
- Includes: 4pcs AAA battery,1pc test leads,1pc temperature probe
- Accuracy Rang of DC Voltage "40mV/400mV(士(0.5%+5) 4V /40V /400V (±(0.5%+4)) 1000V ±(1.0%+6)"
- Accuracy Rang of AC Voltage 40mV/400mv +(1.0%+6) 4V/40V/400V(±(0.8%+10)) 750V±(1.2%+10)
- Accuracy Rang of DC Current 400uA/4000uA(±(1.0%+10)) 40mA/400mA(±(1.2%+8)) 4A/10A(±(1.2%+10))
- Accuracy Rang of AC Current: 400uA/4000uA/40mA/400mA (±(1.5%+10)) 4A/10A (±(2.0%+5))
- Accuracy Rang of Resistance: "400Ω(±(0.8%+5) 4k Ω/40k Ω/400k Ω/4M Ω±(0.8%+4) 40MΩ(±(1.2%+10))"
- Accuracy Rang of Capacitance: 6nF (±(5.0%+40) 60nF/600nF/6uF /60uF/600uF 士(3.5%+20) 6mF 士(5.0%+10) 60mF/100 mF ±10%
- Accuracy Rang of Frequency: 10hz/100hz/1000hz/10khz/100khz/1mhz/20mhz ±(0.5%+10)
- Accuracy Rang of Temperature: "(-20-1000)℃ <400℃ ±(1.0%+5) ≥400℃ ±(1.5%+15) (-4~1832)℉ <752℉ ±(1.0%+5) ≥752℉ ±(1.5%+15)"
