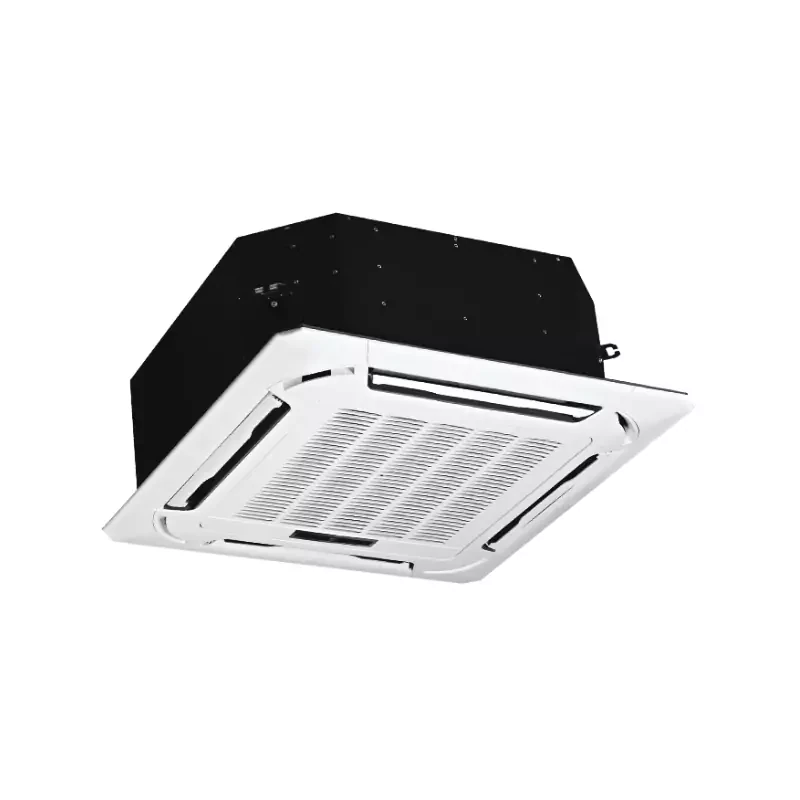

Midea Air Conditioner 48K BTU Ceilling Cassette Inverter LЕD Dіѕрlау
Indoor Unit
- Model Name: MCD1-48HRDN1
- Power Supply: 220 V / 50 Hz / 1 Ph
- Cooling Power: 3.520 - 13.600 kW
- Heating Capacity: 4.100 - 16.000 kW
- Air Flow Rate: 1,950 - 1,600 m³/h
- Noise Level: 53.50 - 48.00 dB
- Drain Pipes Diameter: 25 mm
Power Consumption:
- Cooling: 0.900 - 5.600 kW
- Heating: 0.950 - 5.500 kW
Energy Efficiency:
- SEER (cooling mode): 6.10
- SCOP (heating mode): 4.00 - 5.00
- EER (cooling mode): 2.48
- COP (heating mode): 3.05
Panel
- Model: T-MBQ4-04A1
- Color: White
- Size (WxHxD): 950 x 55 x 950 mm
- Weight: 6.00 kg
Dimensions and Weight (Indoor Unit)
- Without Package: 830 x 245 x 830 mm
- In Multiples: 910 x 290 x 910 mm
- Net Weight: 28.80 kg
- Gross Weight: 32.30 kg
Outdoor Unit
- Model Name: MOU1-48HDN1-RW
- Compressors Type: Inverter
- Compressor: GMCC ROTARY DC
- Refrigerant Type: R410A
- Refrigerant Weight: 3.65 kg
- Power Supply: 380 V / 50 Hz / 3 Ph
- Air Flow Rate: 5,000 m³/h
- Noise Level: 64.50 dB
- Min Length of Main Line: 3 m
- Max Length of Main Line: 50 m
- Max Vertical Drop: 30 m
Diameter Pipes:
- Liquid: 9.52 mm
- Gas: 15.90 mm
Dimensions and Weight (Outdoor Unit)
- Without Package: 946 x 810 x 410 mm
- In Multiples: 1090 x 885 x 500 mm
- Net Weight: 86.70 kg
- Gross Weight: 91.40 kg
