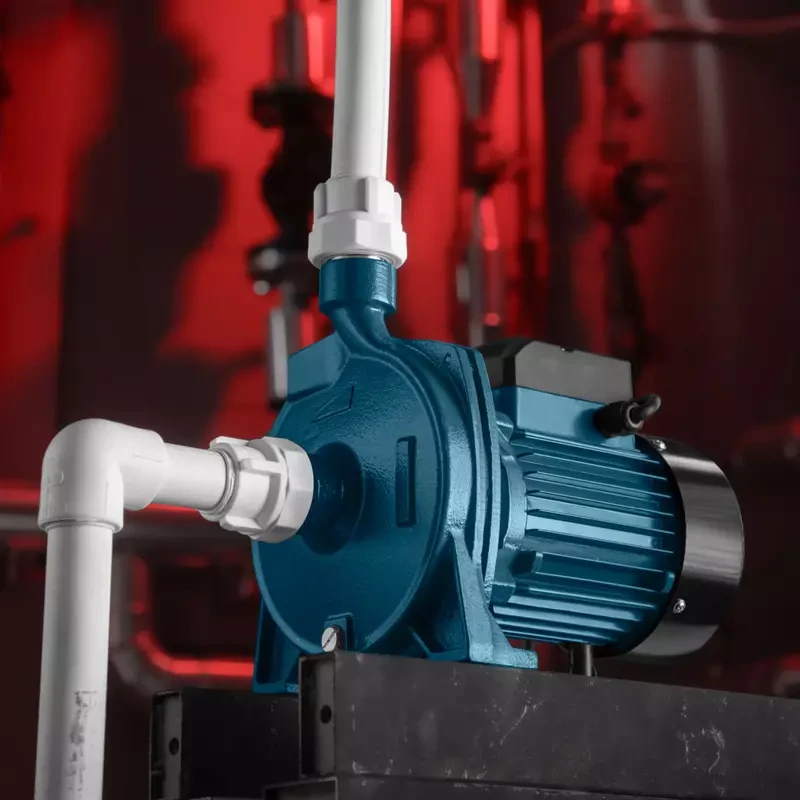

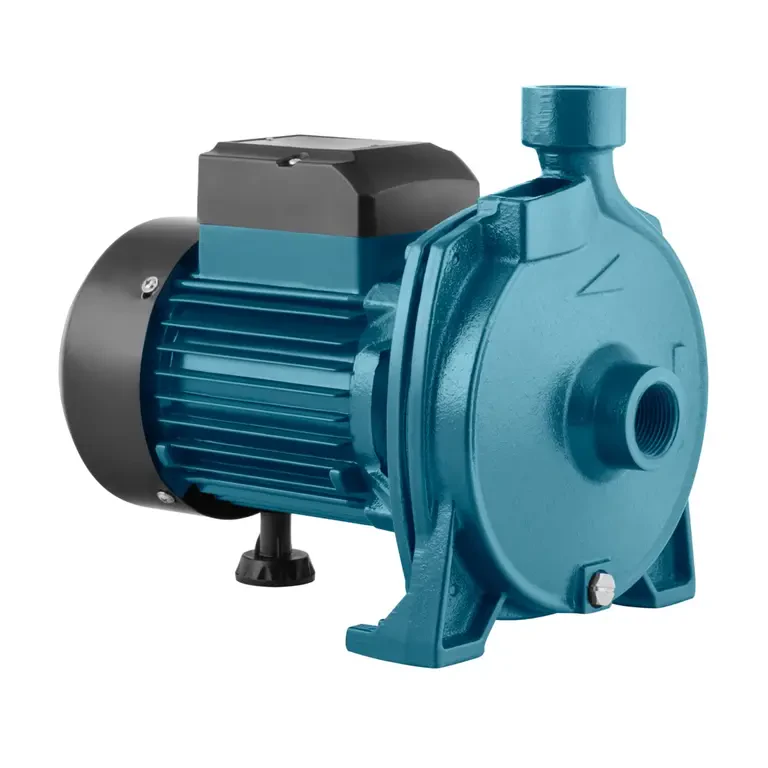

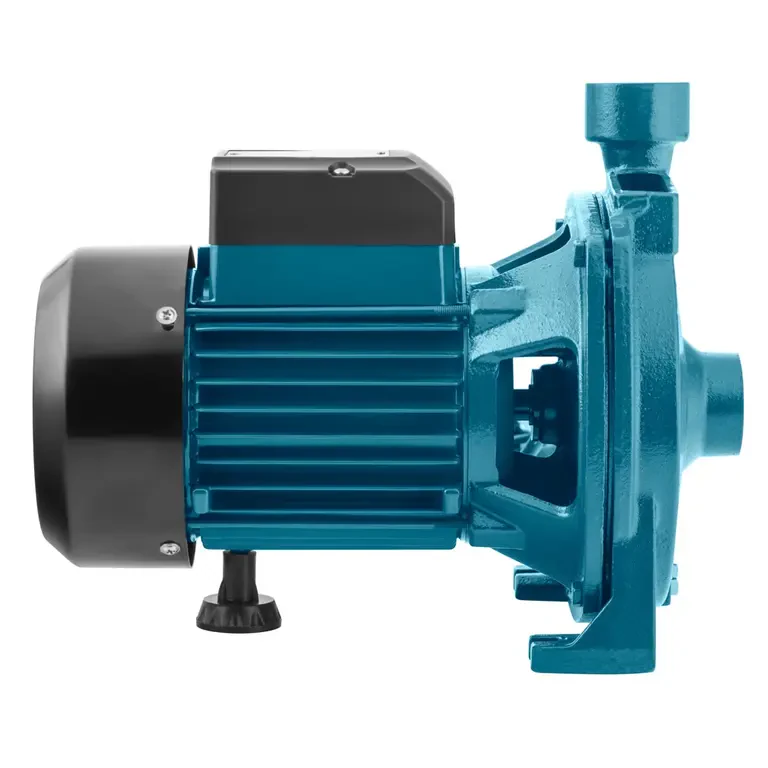

Centrifugal pumps are liquid pumps that use the kinetic energy of a rapidly rotating impeller to move fluids from one location to another. As this impeller spins, it creates a suction force that draws fluid into the pump and then expels it through the outlet. These pumps can be used in a wide range of applications, such as water supply and circulation, chemical processing, and oil and gas production. Equipped with a 1 horsepower motor encased in an aluminum housing, Ronix RH-4021 is a centrifugal pump that can offer a maximum pumping head of 32m. This model is designed with a wide range of scenarios in mind and can be used in domestic, small industrial, and civil applications for the distribution of water in small and medium-sized pressure sets. If you are in the market for a new centrifugal pump, Ronix RH-4021 is the option to look for.
Features
- Centrifugal pump with new design and capable of generating high flow
- Suitable for clean water and free of solids and abrasives, non-viscous, nonaggressive, non-crystallised and chemically neutral, clean liquids
- Properly in domestic, small industrial ,irrigation of gardens and allotments usage
- Provides with Thermal protector and insulation Class B to ensure motor long life
- ability for suction up to 8m
- More efficiency by using Ceramic/Graphite mechanical seal, brass impeller cast iron pump housing
- The motor duty type S1 and Anti lock system for impeller that all together lead to increase durability
Specification
- Model: RH-4021
- Power: 1hp
- Voltage: 220-240V
- Frequency: 50Hz
- Min.Flow: 0.3m³/h
- Max. Flow: 6.6m³/h
- Min.Head: 5m
- Max. head: 32m

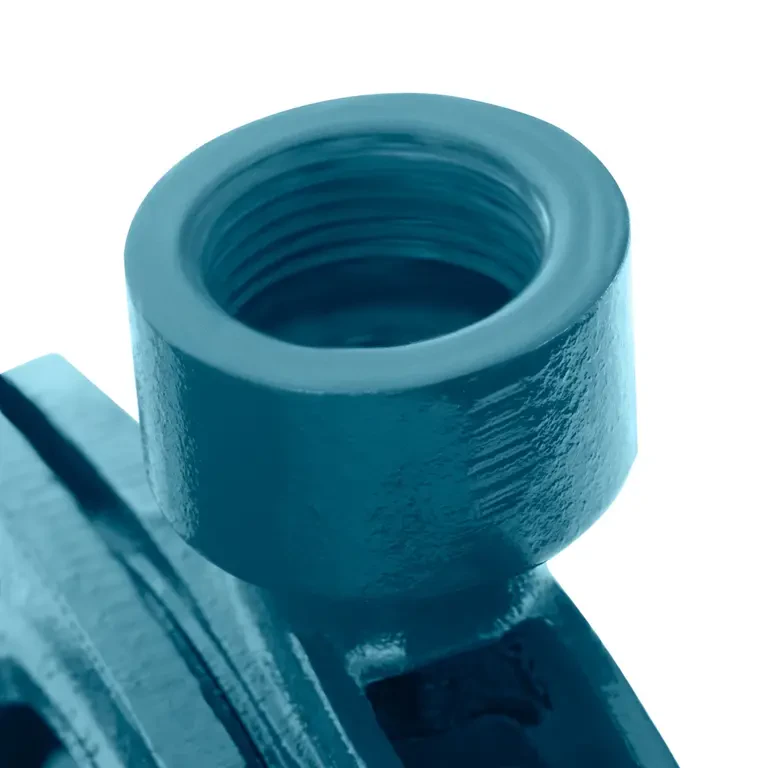

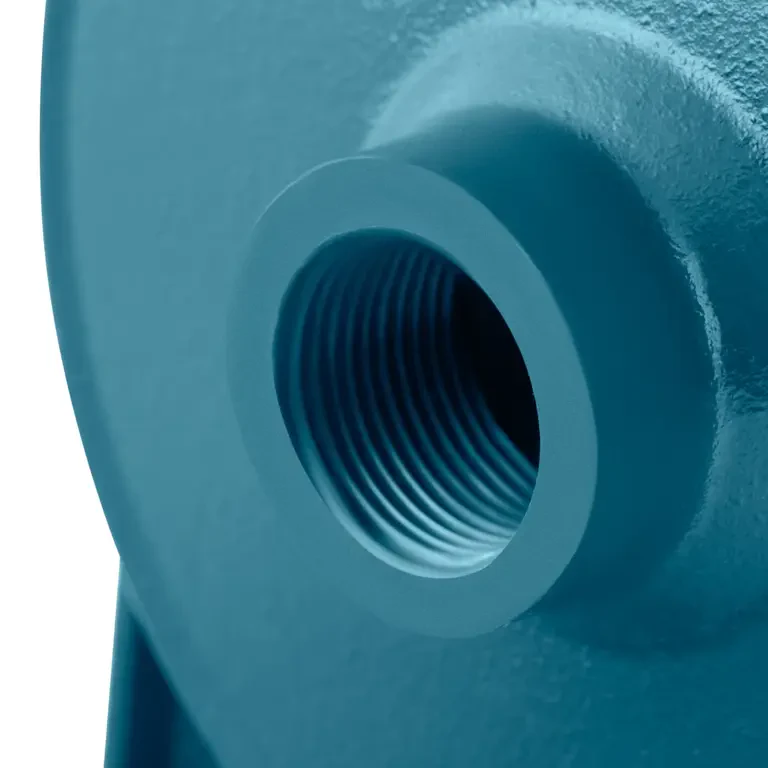

- Inlet/outlet port diameter: 1In X 1In
- Suction height: 8m
- Speed: 2850RPM
- Max. liquid temperature: ℃60
- Max. Ambient temperature: ℃40
- Working Pressure: 3.2BAR
- Protection level: IP44
- Insulation Class: CLASS B
- Pump housing material: CAST IRON
- Motor housing material: ALUMINUM
- Mechanical seal material: CERAMIC/GRAPHITE
- Safety system WITH THERMAL PROTECTOR
- Motor protection: 1
- Coil winding material: COPPER
- Impeller material: BRASS
- shaft material: SS304+45
- Weight: 13kg

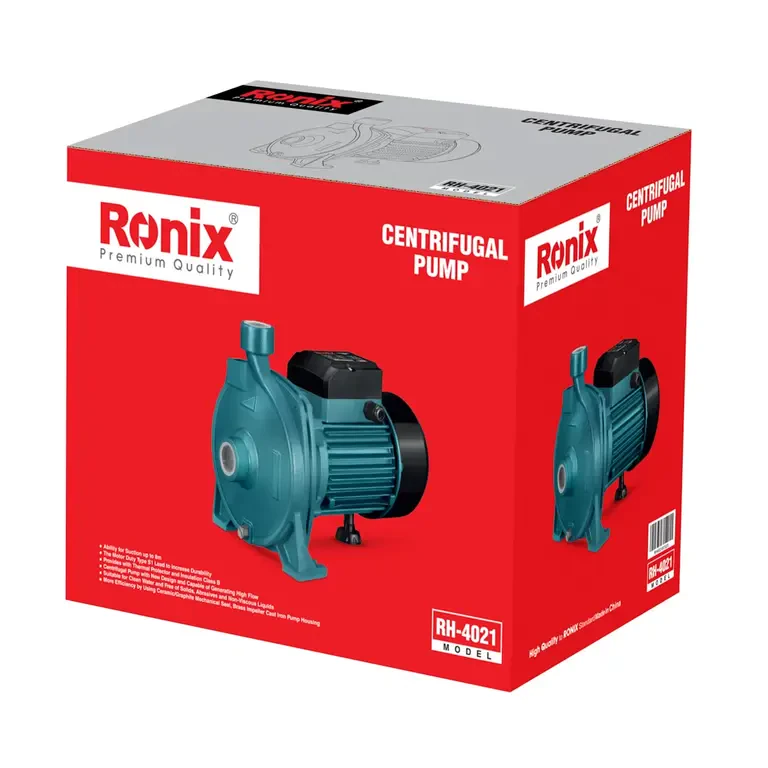

- packaging: color box
