Key Features:
A simpler way to cool bigger spaces
Cool large areas much more evenly, efficiently and easily. It simply stands on the floor, so it can be used in a much wider choice of locations. But it optimizes its speed to maximize comfort and save energy. It can also blow air up to 20 meters* and spreads air evenly in all directions**.
Even more comfort across larger areas
20m Long Wind with 4-way Auto Swing Cool much larger spaces quickly and evenly from corner to corner. It combines a powerful fan motor and an enlarged air outlet, so it can blow air up to 20 meters*. An Auto Swing function** also automatically expels cool air in every direction, so air is distributed evenly across the whole room.
Even cleaner air Auto Shutter
Keep the inside of your air conditioner clean and hygienic, so it always expels clean air. The Auto Shutter function automatically opens the flaps over the air vent when it is turned on. It then closes them when it is turned off, which prevents dust from getting inside and polluting the system.

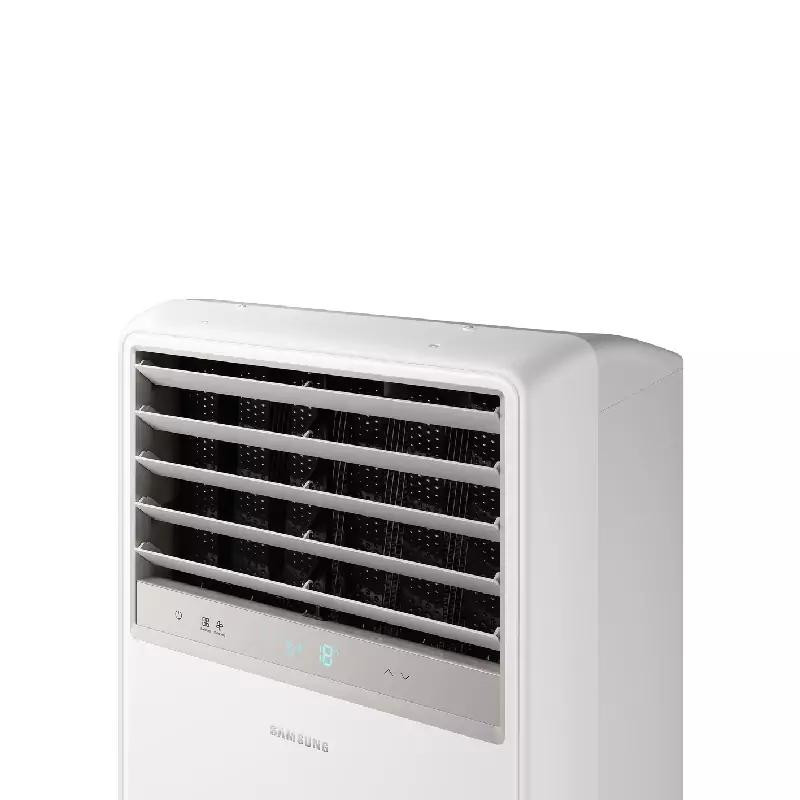

More control & style Hidden Display & Touch Control
Enjoy a stylishly modern and minimalist look and much easier control. The Touch Control panel has an intuitive button design and layout that lets you to adjust the settings with just a gentle touch. And its Hidden Display enhances the minimalist design of the front, but is still easy to read.
Specifications:
- Brand: Samsung
- Model: AC036TNPPEN
- Type: Air Conditioner
- AC Type: Floor Standing
- Capacity: 36000BTU
- Cooling [Btu/h]: 11300 / 34500 / 42700 Btu/h
- Cooling [kW]: 10.10 kW
- EER (Nominal Cooling): 10.33
- Net Dimensions (WxHxD) (mm): 940 x 998 x 330 mm
- Type: PAC
- Indoor Unit: AC036TNPPEH/IQ
- Outdoor Unit: AC036TXQREH/IQ
- Mode: Heat Pump
- Heating [kW]: 3.0 / 10.8 / 15.5 kW
- Cooling 1): 0.60 / 3.34 / 5.10 kW
- Heating 2): 0.65 / 3.16 / 5.20 kW
- Cooling: 3.2 / 15.0 / 22.5 A
- Heating: 3.5 / 14.2 / 24.0 A
- COP (Nominal Heating): 3.42
- Energy Grade (Cooling): C
- Liquid Pipe (Φ, mm): 9.52 mm
- Gas Pipe (Φ, mm): 15.88 mm
- Installation Max. Length [m]: 50 m
- Installation Max. Height [m]: 30 m
- Type: R-410A
- Factory Charging (kg): 2.6 kg
- Power Supply (Indoor Unit) [Φ, #, V, Hz]: 1,2,220-240,50
- Type: Sirocco
- Motor (Output) [W]: 154 W
- Number of Unit (EA): 1 EA
- Air Flow Rate (High / Mid / Low) [㎥/min]: 30/27/23 CMM
- Sound Pressure (High / Mid / Low) [dB(A)]: 47/44/41 dBA
- Panel Net Weight (kg): 44.5 kg
- Shipping Weight (kg): 50.5 kg
- Net Dimensions (WxHxD) (mm): 610x1850x400 mm
- Shipping Dimensions (WxHxD) (mm): 705x1963x493 mm
- Power Supply (Outdoor Unit) [Φ, #, V, Hz]: 1,2,220-240,50
- Type: Twin BLDC Rotary
- Model Name: UG8T300FUBJU
- Output(kW): 2.82 kW
- Oil (Type): POE
- Oil (Initial Charge) [cc]: 1200 cc
- Air Flow Rate (Cooling) [CMM]: 76 CMM
- Sound Pressure (Cooling / Heating) [dB(A)]: 55 dBA
- Panel Net Weight (kg): 72.5 kg
- Shipping Weight (kg): 77.5 kg
- Net Dimensions (WxHxD) (mm): 940 x 998 x 330 mm
- Shipping Dimensions (WxHxD) (mm): 995 x 1096 x 426 mm
- Cooling (℃): -15~54 ℃
- Heating (℃): -20~24 ℃
