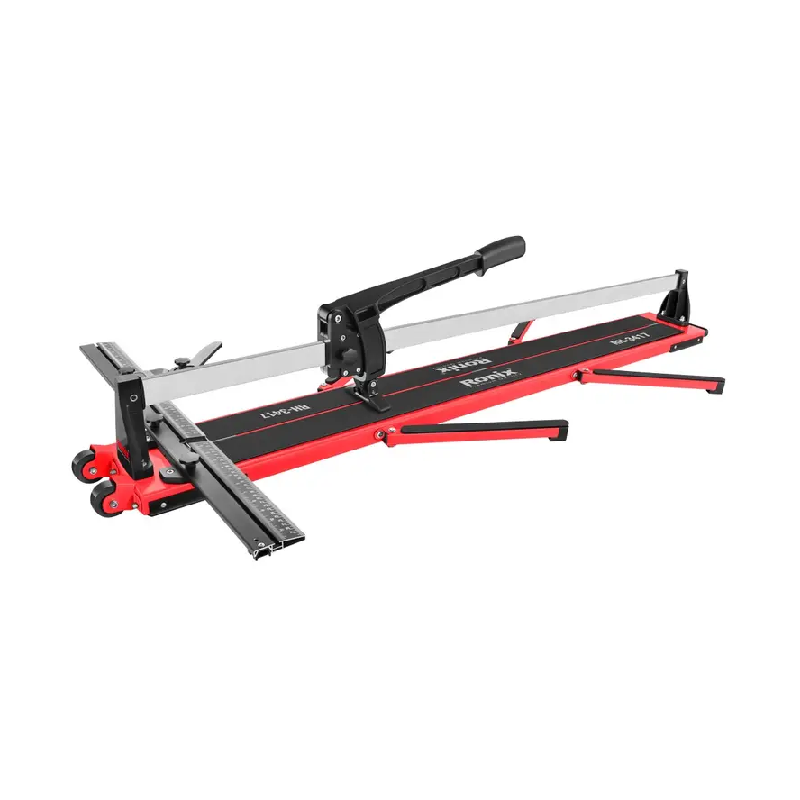

The RH-3417 1200-mm tile cutter is a heavy-duty tool engineered for precise and efficient tile cutting. Built with a sturdy steel body, it also features an ergonomically designed handle made from a combination of magnesium alloy and plastic for comfortable use. The cutter is equipped with a long-lasting Tungsten Carbide scoring wheel that ensures durability. Operating on a dual-rail system, it enables smooth and accurate cuts for tiles up to 1200 mm in length and 14 mm in thickness, and tiles up to 1200 × 1200 mm at a 45-degree angle. Perfect for both ceramic and porcelain tiles, the cutter includes an adjustable gauge for precision in every cut.
Key Features:
Dimensions
This tile cutter's dimensions are 1450 mm × 195 mm × 250 mm, and it has a weight of 15.6 kg.
Body and Handle
Featuring a robust steel body, the cutter is equipped with a handle crafted from magnesium alloy and plastic, ensuring both comfort and durability.
Scoring Wheel
This cutter includes a highly durable Tungsten Carbide scoring wheel, with measurements of 22×6×6 mm.
Rail System
Designed with a dual-rail system, the cutter ensures smooth operation.
Cutting Capacity
It can cut tiles up to 1200 mm in length and 12 mm in thickness, as well as tiles measuring up to 1200 × 1200 mm at a 45-degree angle.
Uses
This versatile and powerful tile cutter is suitable for cutting both ceramic and porcelain tiles.
Adjustability
An adjustable gauge is included for customized and precise cuts, with a length of 300 mm.
Packaging and Accessories
The product is packaged in a two-color carton and comes with a laser guide, gauge, and cutting blade.
Features:
- Versatile tile cutter for ceramic and porcelain with a Two-rod rail system allowing smooth operation
- Durable 22*6*6mm tungsten carbide scoring wheel
- cuts up to 14mm thick
- Cut tile up to 1200mm long and 14mm thick. Cut tile up to 1200 x 1200mm at a 45-degree angle.
- Includes adjustable measuring guide for precise cuts
- Ergonomic design for easy and fast cutting
- Simple and convenient replacement of the scoring wheel
Specifications:
- Brand: Ronix
- Model: RH-3417
- Scoring wheel Material: Tungsten carbide
- Body Material: STEEL
- Handle Material: magnesium alloy+Plastic
- Dimension: 1450mm*195mm*250mm
- Gauge Length: 300MM
- Weight: 15.6kg
- Max cutting thickness: 14mm
- Max cutting long: 1200mm
- Includes: GAUGE, CUTTING BLADE
- Supplied In: two color carton
