General Specifications
- Type: 10kW-1Φ-4Way
- Indoor Unit Model: AC100TN4DKC/EA
- Outdoor Unit Model: AC100TXADKC/EA
- System Mode: Cooling Only
Cooling Capacity
- Cooling Power:
- 3.0 / 10.0 / 12.0 kW
Energy Efficiency
- EER (Cooling): 3.20
Power Requirements
- Current Input (Nominal Cooling):
- 3.0 / 14.8 / 20.4 A
- MCA: 26.0 A
- MFA: 30.0 A
- Power Supply (Indoor/Outdoor): 1Φ, 220-240V, 50Hz
Piping Connections
- Liquid Pipe Diameter:
- 9.52 mm (3/8")
- Gas Pipe Diameter:
- 15.88 mm (5/8")
- Max. Installation Length: 50 m
- Max. Installation Height: 30 m
Refrigerant Details
- Type: R410A
- Control Method: EEV
- Factory Charge: 3.00 kg

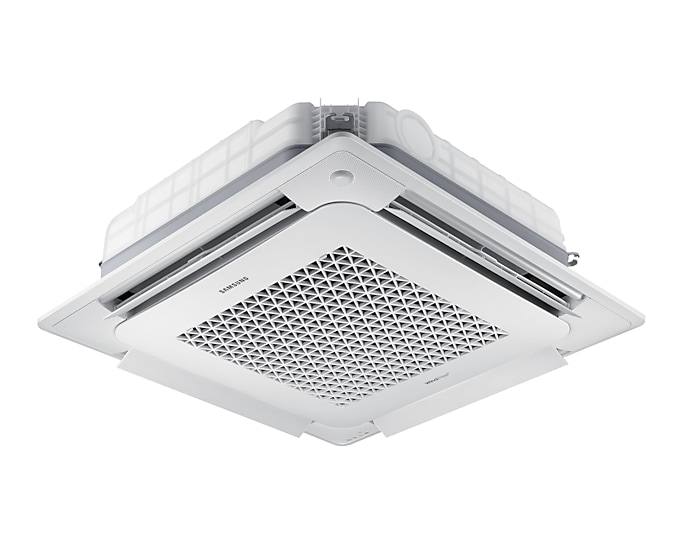

Indoor Unit Features
- Fan Type: Turbo
- Motor Output: 97 W
- Airflow Rate:
- High: 30.3 CMM
- Mid: 24.3 CMM
- Low: 19.4 CMM
- Sound Pressure Levels:
- High: 43 dBA
- Mid: 38 dBA
- Low: 33 dBA
- Drain: VP25 (OD 32, ID 25)
Indoor Unit Dimensions and Weight
- Net Dimensions (WxHxD): 840 x 288 x 840 mm
- Shipping Dimensions (WxHxD): 898 x 357 x 898 mm
- Net Weight: 20.0 kg
- Shipping Weight: 23.5 kg

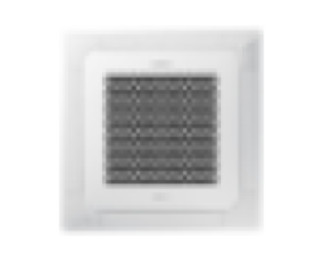

Panel Details
- Model: PC4NUFDAN
- Net Dimensions (WxHxD): 950 x 48 x 950 mm
- Shipping Dimensions (WxHxD): 1010 x 117 x 1000 mm
- Net Weight: 6.3 kg
- Shipping Weight: 8.7 kg
Outdoor Unit Features
- Compressor Type: Twin BLDC Rotary
- Compressor Output: 2.82 kW
- Oil Type: POE (1200 cc initial charge)
- Fan Airflow Rate: 76 CMM
- Sound Pressure Level (Cooling): 53 dBA
Outdoor Unit Dimensions and Weight
- Net Dimensions (WxHxD): 940 x 998 x 330 mm
- Shipping Dimensions (WxHxD): 995 x 1096 x 426 mm
- Net Weight: 71.0 kg
- Shipping Weight: 76.0 kg
Operating Temperature Range
- Cooling: -15°C to 50°C
Smart Features
- WiFi Kit: Yes
- App Connectivity: SmartThings App Support
This 10kW 4-way cooling-only air conditioner provides robust performance and energy-efficient cooling. Designed for versatile installation, it supports remote control and monitoring via the SmartThings app, ensuring user convenience and comfort.
