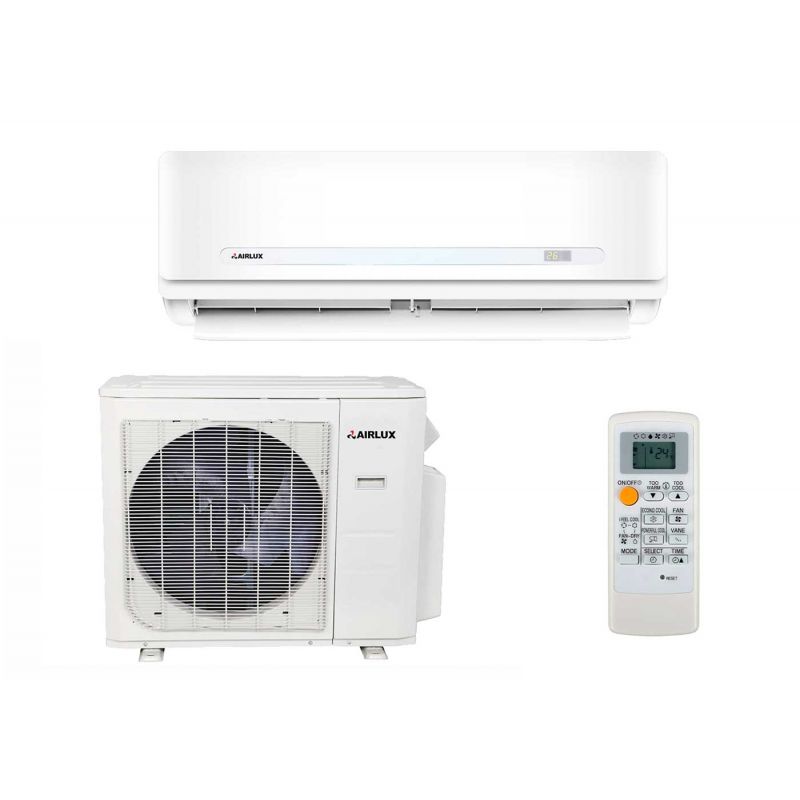

AIRLUX DC Inverter Heat Pumps / Air Conditioners provide cooling and heating with considerable energy savings. Equipped with variable speed DC Inverter compressors AIRLUX units offer compact, quiet, stylish wall-mounted design which perfectly blends into any environment. These units have optimized air duct design for a range of noise reduction measures resulting in ultra-low noise performance.
Energy saving: After the indoor temperature approaches the set temperature, Inverter Control adjusts to low capacity operation to maintain this temperature. This makes inverter models more energy-saving than non-inverter models, which must repeatedly start or stop their compressors to maintain the room temperature.
Power: Inverter air conditioners operate at maximum capacity as soon as they start up. As a result, the set temperature can be reached more quickly.
Comfort: Inverter air conditioners finely adjust capacity according to changes in the air-conditioning load and the difference between the indoor temperature and set temperature is small. These give higher comfort levels than with non-inverter air conditioners.
- Low outside operating temperature -15C.
- Environmentally friendly refrigerant R410A
- Insulated copper pipes for installation – 5 meters
- Auto Restart
- Defrosting System & Multi-fold evaporator
- Washable corrugated filter to trap very fine particles in the air

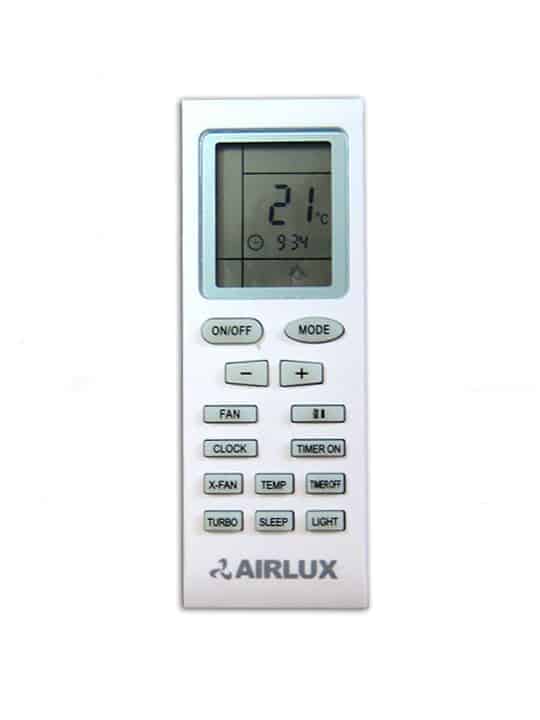

- Remote control, ON/OFF timer, sleep mode and memories
- Quick cooling & heating
- High energy efficiency & quite operation
| Outdoor | ASZ24O | ||
| Power supply | Ph-V-Hz | 208-230V~60Hz ,1Ph | |
| Cooling | Capacity | Btu/h | 24000 |
| EER | Btu/w | 12.5 | |
| SEER | Btu/w | 20.5 | |
| Heating | Capacity | Btu/h | 25000 |
| HSPF4 | Btu/w | 10 | |
| MAX.FUSE | A | 25 | |
| Indoor unit | Dimension(W*D*H) | mm | 1080x226x335 |
| Dimension(W*D*H) | inch | 42.52×8.90×13.19 | |
| Net/Gross weight | lbs. | 29.1/37.0 | |
| Outdoor noise level min/max | dB(A) | 30/61 | |
| Outdoor unit | Dimension(W*D*H) | mm | 946x410x810 |
| Dimension(W*D*H) | inch | 37.24/16.14/31.89 | |
| Net/Gross weight | lbs. | 136.69/147.27 | |
| Refrigerant type | g | R410A/2350g | |
| Refrigerant precharge | ft | 25 | |
| Additional charge for each ft | oz | 0.322 | |
| Design pressure | PSIG | 550/340 PSIG | |
| Refrigerant piping | Liquid side/ Gas side | mm(inch) | Φ9.52/Φ15.9(3/8″/5/8″) |
| Max. refrigerant pipe length | ft | 164 | |
| Max. difference in level | ft | 82 | |
| Operation temperature | Indoor(cooling/ heating) | ℃ | 17～32/0～30 |
| Outdoor(cooling/heating) | ℃ | -25～50/-25～30 |
