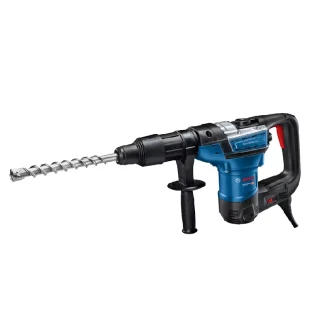

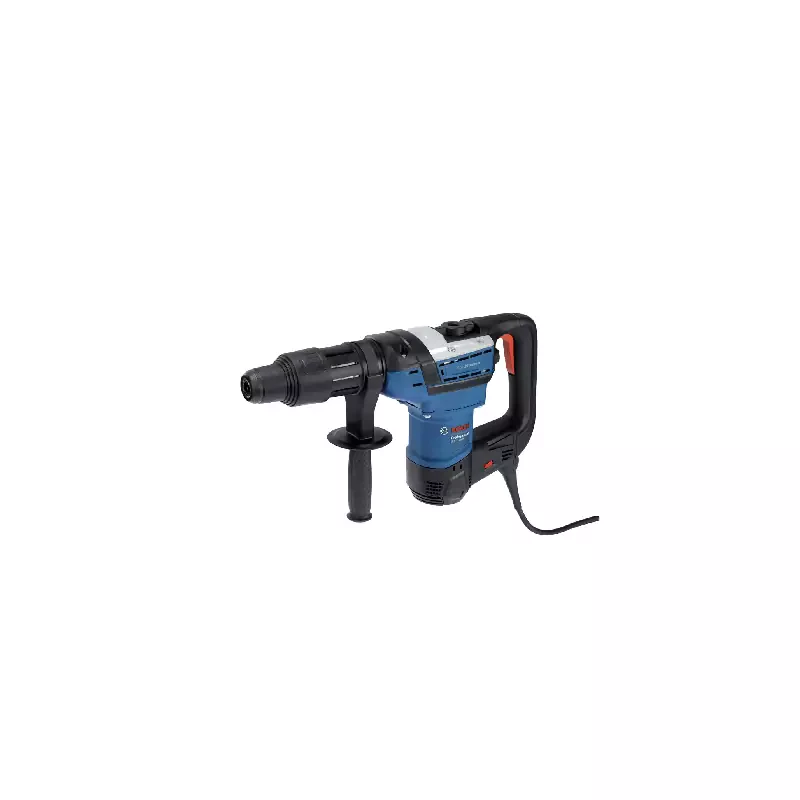

Bosch Rotary Hammer 1100W 8.5J 12- 40mm SDS Max GBH 5-40 D
The powerful hammer with the fastest drilling progress in its class
- Fastest drilling progress – 30% faster than its predecessor
- High material removal rate – 50% more impact energy than existing GBH 5-38 D
- Perfect handling – well-balanced tool for all applications
Functions & key features
- Heavy duty: Bosch heavy, Duty bosch, Heavy duty power, performance and robustness redefined
- Vario-Lock: Convenient, adjustment of the chisel position enabling you to adapt it to each work situation
- Rotation control clutch: Protection of the user & machine in the case of overload or binding, No abrupt blockage of the tool by unlatching clutch dogs and minimizing torque
Performance data
- Impact rate at rated speed: 1500 – 2,900 bpm
- Rated speed: 170 – 340 rpm
Additional data
- Rated input power: 1.100 W
- Impact energy (according to EPTA 05/2016): 8.5 J
- Weight: 6.8 kg
- Tool holder: SDS max
Drilling range
- Drilling dia. concrete, hammer drill bits: 12- 40 mm
- Opt. appl. range concrete, hammer drill bits: 18- 32 mm
- Drilling dia. concrete, breakthrough drill bits: 45- 55 mm
- Max. drilling diameter masonry, core cutters: 40- 90 mm
Total vibration values (Hammer drilling in concrete)
- Vibration emission value ah: 14 m/s²
- Uncertainty K: 1.5 m/s²
Total vibration values (Chiseling in concrete)
- Vibration emission value ah: 11.5 m/s²
- Uncertainty K: 1.5 m/s²
Hammer drilling in concrete
- Vibration emission value ah: 14 m/s²
- Uncertainty K: 1.5 m/s²
Chiseling in concrete
- Vibration emission value ah: 11.5 m/s²
- Uncertainty K: 1.5 m/s²
The A-rated noise level of the power tool is typically as follows: Sound pressure level 93.5 dB(A); Sound power level 104.5 dB(A). Uncertainty K= 3 dB.
