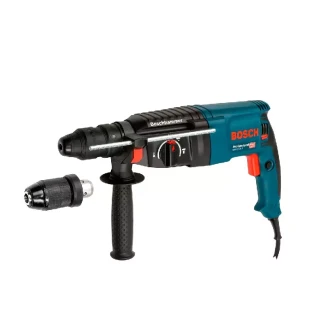

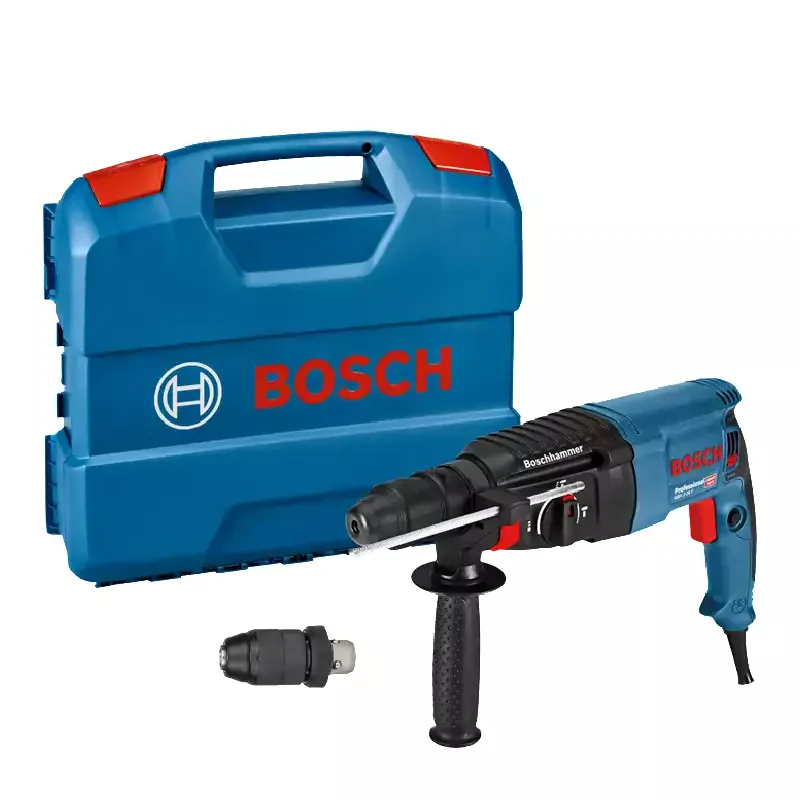

Bosch Rotary Hammer 830W 2.7J 4-26mm SDS Plus GBH 2-26 F
Fast all-rounder for daily use
- Improved performance for a fast drilling rate and high chiseling removal rate
- Reliable and robust with a long lifetime due to high-quality components
- Wide range of applications for drilling, hammer drilling, and chiseling
Functions & key features
- Chisel function: Combi hammer with chisel function, no rotary motion, impact effect only
- Variable speed: Easy and precise control of the RPM, thanks to variable speed
- Rotation control clutch: Protection of the user & machine in the case of overload or binding, No abrupt blockage of the tool by unlatching clutch dogs and minimizing torque
- Auto lock: Convenient, change of accessories, keyless, chuck opens and closes easily
- Rotation: Forward/ Reverse rotation for inserting and removing screws
Performance data
- Impact rate at rated speed: 0 – 4,000 bpm
- Rated speed: 0 – 900 rpm
Additional data
- Rated input power: 830 W
- Impact energy (according to EPTA 05/2016): 2.7 J
- Weight: 2.9 kg
- Tool holder: SDS Plus
Drilling range
- Drilling dia. concrete, hammer drill bits: 4- 26 mm
- Opt. appl. range concrete, hammer drill bits: 8- 16 mm
- Drilling diameter in concrete with core cutters: 16- 68 mm
- Max. drilling diameter masonry, core cutters: 68 mm
- Max. drilling diameter in metal: 13 mm
- Max. drilling diameter in wood: 30 mm
Total vibration values (Hammer drilling in concrete)
- Vibration emission value ah: 15.3 m/s²
- Uncertainty K: 1.5 m/s²
Total vibration values (Chiseling in concrete)
- Vibration emission value ah: 11.5 m/s²
- Uncertainty K: 1.5 m/s²
Hammer drilling in concrete
- Vibration emission value ah: 15.3 m/s²
- Uncertainty K: 1.5 m/s²
Chiseling in concrete
- Vibration emission value ah: 11.5 m/s²
- Uncertainty K: 1.5 m/s²
The A-rated noise level of the power tool is typical as follows: Sound pressure level 92 dB(A); Sound power level 103 dB(A). Uncertainty K= 3 dB.
