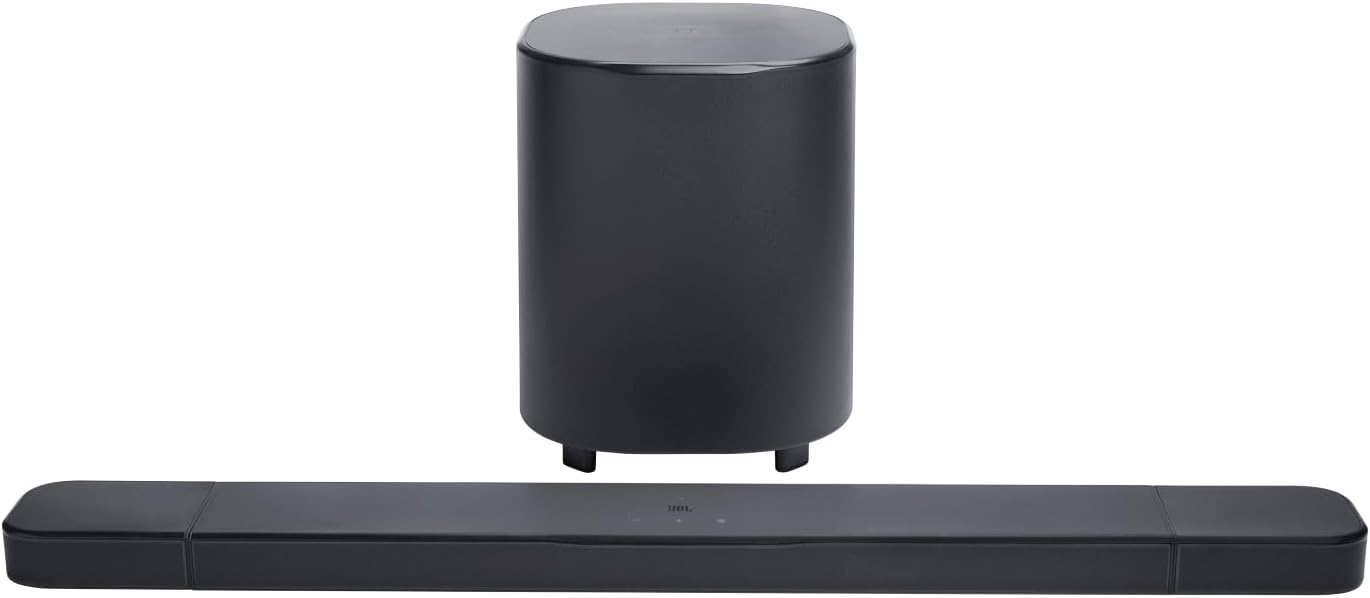

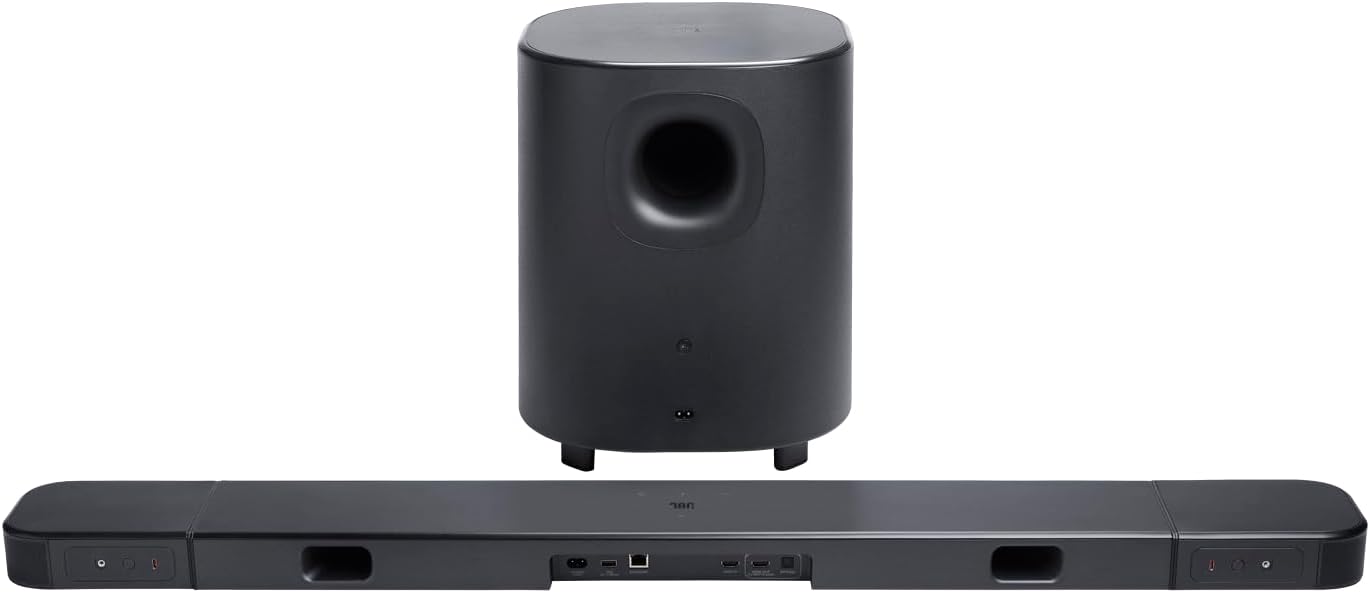

JBL BAR 800MK2 7.1 Channel Soundbar with Dolby Atmos, Detachable Wireless Surround Speakers, 780W, 10” Subwoofer, PureVoice 2.0, HDMI eARC, MultiBeam™ 3.0, Bluetooth & Wi-Fi

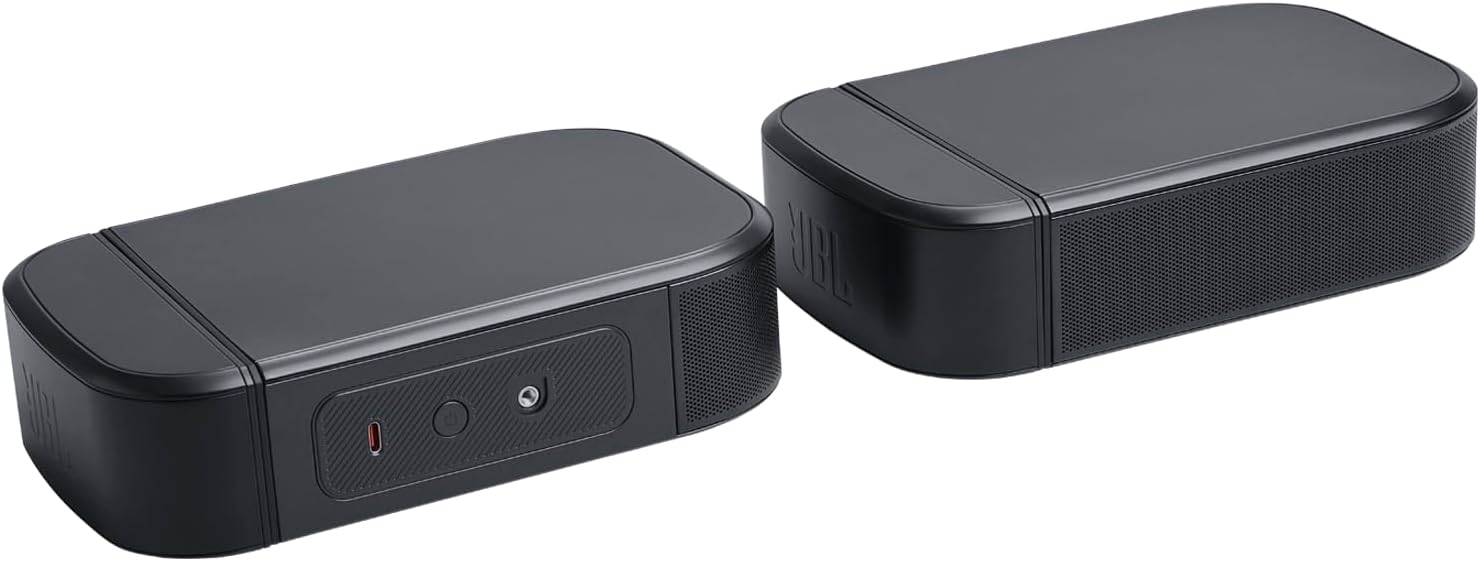

1. True 7.1 Channel Surround Sound with Dolby Atmos Enjoy immersive 3D audio with two detachable wireless surround speakers and Dolby Atmos for a cinematic soundstage in seconds.
2. Massive 780W Output & Deep Bass Power-packed performance with a 10” wireless subwoofer delivering room-shaking bass and 780W total power output.
3. MultiBeam 3.0 & PureVoice 2.0 Wide, cinema-like soundstage with enhanced dialogue clarity—hear every whisper and word clearly, even during action scenes.
4. Bluetooth, Wi-Fi, & JBL ONE App Stream music wirelessly, customize your audio with the JBL ONE app, and access EQ, software updates, and music services.
5. HDMI eARC with 4K Dolby Vision Passthrough Connect effortlessly with enhanced HDMI ARC, enjoy ultra-HD video and rich audio through a single cable for seamless setup.

Specs

General Specifications

1. Sound System: 7.1 channel
2. Power Supply: 100 – 240V AC ~ 50/60 Hz
3. Total Speaker Power Output (Max @ THD 1%): 780 W RMS
4. Soundbar Output Power (Max @ THD 1%): 400 W RMS
5. Surround Speaker Output Power (Max @ THD 1%): 2 x 40 W RMS
6. Subwoofer Output Power (Max @ THD 1%): 300 W RMS
7. Soundbar Transducers:
8. 6 x (44 x 80 mm) racetrack drivers
9. 2 x 1" (25 mm) tweeters
10. Surround Speaker Transducers:
11. 2 x (44 x 90 mm) racetrack drivers
12. Subwoofer Transducer: 10" (260 mm)
13. Networked Standby Power: < 2.0 W
14. Operating Temperature: 0°C – 45°C
15. Lithium Battery: 3.635 V / 3283 mAh
16. Detachable Surround Speaker Playtime: Up to 10 hours (varies by content and volume level)

Audio Specifications

1. Frequency Response: 35Hz – 20kHz (-6dB)
2. Audio Inputs: Optical, Bluetooth, USB
3. USB playback available in US version only; other versions use USB for service

Dimensions

1. Total Soundbar Dimensions (W x H x D): 1163 x 52 x 128 mm (45.8" x 2.0" x 5.0")
2. Main Soundbar Dimensions (W x H x D): 854 x 52 x 128 mm (35.6" x 2.0" x 5.0")
3. Detachable Surround Speaker Dimensions (each): 169 x 52 x 128 mm (6.7" x 2.0" x 5.0")
4. Subwoofer Dimensions (W x H x D): 325 x 400 x 325 mm (12.8" x 15.7" x 12.8")
5. Soundbar Weight: 5.0 kg / 11 lbs
6. Detachable Surround Speaker Weight (each): 0.7 kg / 1.6 lbs
7. Subwoofer Weight: 8.1 kg / 17.8 lbs
8. Packaging Dimensions (W x H x D): 980 x 398 x 495 mm (38.58" x 15.67" x 19.49")
9. Packaging Weight:
10. 20.8 kg / 45.9 lbs (EMEA / UK / AU / NZ)
11. 18.08 kg / 41.4 lbs (Other regions)

Control and Connection Specifications

1. USB Port: Type-A
2. USB Rating: 5V DC / 0.5A
3. Supporting File Formats: MP3
4. MP3 Codec: MPEG-1 Layer 2/3, MPEG-2 Layer 3, MPEG-2.5 Layer 3
5. MP3 Sampling Rate: 16 – 48 kHz
6. MP3 Bitrate: 80 – 320 kbps
7. Bluetooth Version: v5.3
8. Bluetooth Profile: A2DP v1.3, AVRCP v1.5
9. Bluetooth Transmitter Frequency Range: 2400 – 2483.5 MHz
10. Bluetooth Transmitter Power: < 15 dBm (EIRP)
11. Wi-Fi Network: IEEE 802.11 a/b/g/n/ac/ax (2.4 GHz / 5 GHz)
12. 2.4G Wi-Fi Frequency Range: 2412 – 2472 MHz
13. 2.4G Wi-Fi Transmitter Power: < 20 dBm (EIRP)
14. 5G Wi-Fi Frequency Range:
15. 5.15 – 5.35 GHz
16. 5.470 – 5.725 GHz
17. 5.725 – 5.825 GHz
18. 5G Wi-Fi Transmitter Power:
19. 5.15 – 5.25 GHz: < 23 dBm
20. 5.25 – 5.35 GHz & 5.470 – 5.725 GHz: < 20 dBm
21. 5.725 – 5.825 GHz: < 14 dBm (EIRP)
22. 2.4G Wireless Transmitter Frequency Range: 2406 – 2474 MHz
23. 2.4G Wireless Transmitter Power: < 10 dBm (EIRP)
24. Note: Band 5.6 – 5.64 GHz is disabled in Australia / New Zealand

Video Specifications

1. HDMI Video Input: 1
2. HDMI Video Output: 1 (with eARC)
3. HDMI HDCP Version: 2.3
4. HDR Pass-Through: HDR10+, Dolby Vision

What's in The Box?

1. 1 x Main Soundbar
2. 2 x Detachable Wireless Surround Speakers
3. 1 x Wireless Subwoofer
4. Remote Control with 2 x Batteries
5. Power Cords (up to 6 pcs, depending on region SKU)
6. 1 x HDMI Cable
7. Wall-mount Kit (L-shape brackets for main bar, U-shape brackets for surrounds, screws included)
8. 4 x Side Caps
9. Quick Start Guide
10. Safety Instruction and Warranty Card
11. Wall Mount Template
