JBL BAR 1000MK2 7.1.4 Channel Soundbar with Dolby Atmos, DTS:X, Detachable Wireless Surround Speakers, 960W Output, 10" Subwoofer, HDMI eARC, and Wi-Fi

1. Real 7.1.4 Channel Surround Sound Get true cinematic sound instantly with detachable wireless surround speakers and four up-firing drivers that deliver Dolby Atmos and DTS:X spatial effects without extra wiring or setup.
2. Powerful 960W Output with Deep Bass Experience dynamic, room-filling sound powered by 960W and a 10" wireless subwoofer that brings every explosion, beat, and whisper to life with thunderous clarity.
3. MultiBeam 3.0 and PureVoice 2.0 Technology Enjoy wide, immersive soundscapes with JBL’s MultiBeam 3.0 while never missing a word, thanks to PureVoice 2.0 which enhances dialogue based on ambient noise and volume.
4. Seamless Streaming and Smart Features Works with all music streaming services and ecosystems via Bluetooth, Wi-Fi, HDMI eARC, and optical input. Use the JBL ONE App to personalize your audio experience with EQ, updates, and more.

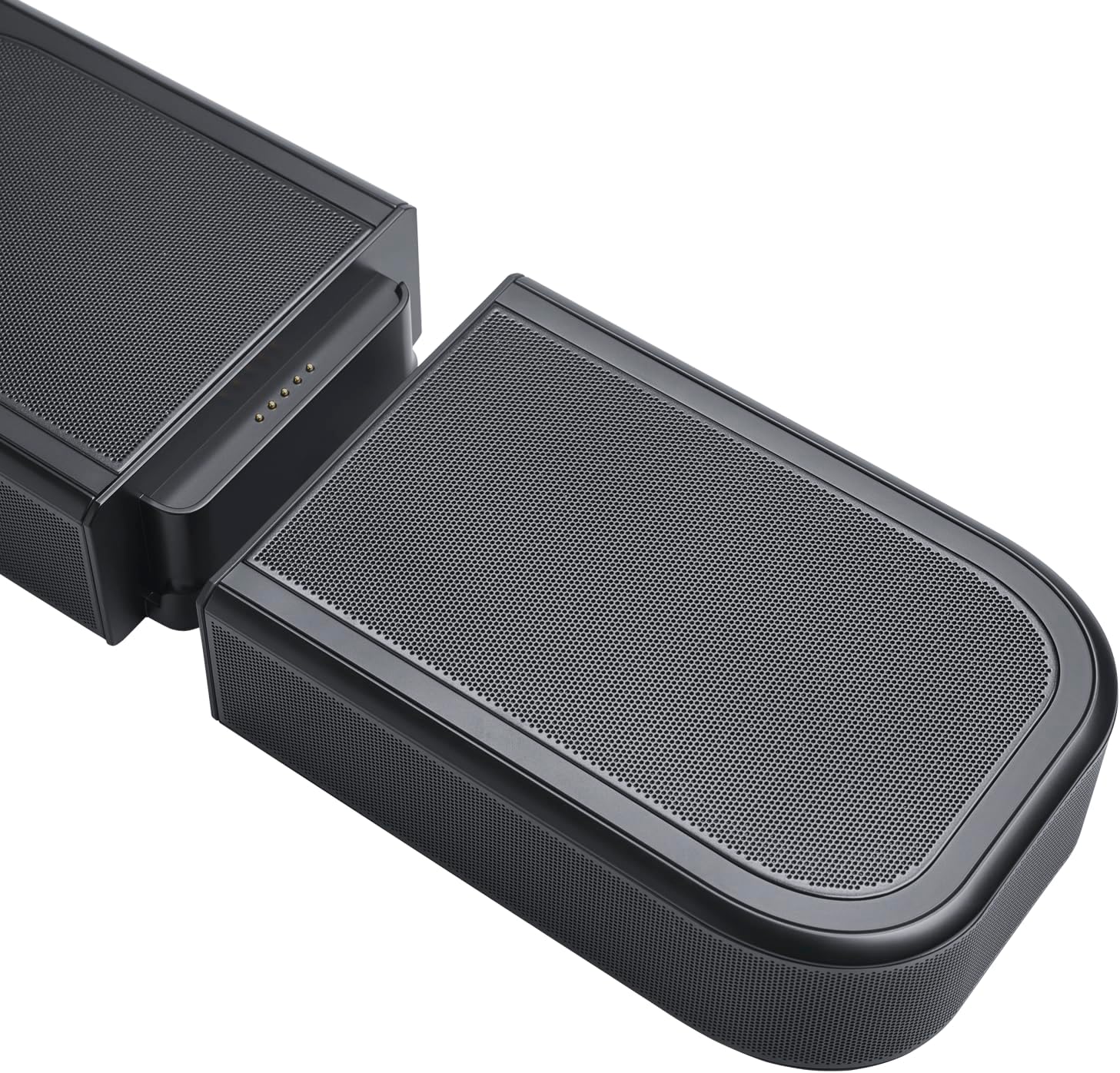

5. Portable Listening and Night Mode Bring one or both detachable speakers with you to other rooms to continue listening, or activate Night Listening mode for a personal, low-volume experience without disturbing others.

Specs

General Specifications

1. Sound System: 7.1.4 channel
2. Power Supply: 100 - 240V AC ~ 50/60 Hz
3. Total Speaker Power Output (Max @ THD 1%): 960 W RMS
4. Soundbar Output Power (Max @ THD 1%): 500 W
5. Surround Speaker Output Power (Max @ THD 1%): 2 x 80 W
6. Subwoofer Output Power (Max @ THD 1%): 300 W
7. Soundbar Transducers:
8. 6 x (44 x 80 mm) racetrack drivers
9. 2 x 1" (25 mm) tweeters
10. 2 x 2.75" (70 mm) up-firing full-range drivers
11. Surround Speaker Transducers:
12. 2 x (44 x 90 mm) racetrack drivers
13. 2 x 2.75" (70 mm) up-firing full-range drivers
14. Subwoofer Transducer: 10" (260 mm)
15. Networked Standby Power: < 2.0 W
16. Operating Temperature: 0°C – 45°C
17. Lithium Battery: 3.635 V / 6600 mAh
18. Detachable Surround Speaker Playtime: Up to 10 hours (varies by content and volume)

Audio Specifications

1. Frequency Response: 33Hz – 20kHz (-6dB)
2. Audio Inputs: Optical, Bluetooth, USB
3. USB playback available in US version only; other versions use USB for service

Dimensions

1. Total Soundbar Dimensions (W x H x D): 1203 x 52 x 128 mm (47.4" x 2.0" x 5.0")
2. Main Soundbar Dimensions (W x H x D): 854 x 52 x 128 mm (33.6" x 2.0" x 5.0")
3. Detachable Surround Speaker Dimensions (each): 189 x 52 x 128 mm (7.4" x 2.0" x 5.0")
4. Subwoofer Dimensions (W x H x D): 325 x 400 x 325 mm (12.8" x 15.7" x 12.8")
5. Soundbar Weight: 5.5 kg / 12.1 lbs
6. Detachable Surround Speaker Weight (each): 0.9 kg / 2 lbs
7. Subwoofer Weight: 9.1 kg / 20 lbs
8. Packaging Dimensions (W x H x D): 980 x 398 x 495 mm (38.58" x 15.67" x 19.49")
9. Packaging Weight:
10. 22.6 kg / 49.8 lbs (EMEA / UK / AU / NZ)
11. 19.9 kg / 44.4 lbs (Other regions)

Control and Connection Specifications

1. USB Port: Type-A
2. USB Rating: 5V DC / 0.5A
3. Supporting File Formats: MP3
4. MP3 Codec: MPEG-1 Layer 2/3, MPEG-2 Layer 3, MPEG-2.5 Layer 3
5. MP3 Sampling Rate: 16 – 48 kHz
6. MP3 Bitrate: 80 – 320 kbps
7. Bluetooth Version: v5.3
8. Bluetooth Profile: A2DP v1.3, AVRCP v1.5
9. Bluetooth Transmitter Frequency Range: 2400 – 2483.5 MHz
10. Bluetooth Transmitter Power: < 15 dBm (EIRP)
11. Wi-Fi Network: IEEE 802.11 a/b/g/n/ac/ax (2.4 GHz / 5 GHz)
12. 2.4G Wi-Fi Frequency Range: 2412 – 2472 MHz
13. 2.4G Wi-Fi Transmitter Power: < 20 dBm (EIRP)
14. 5G Wi-Fi Frequency Range:
15. 5.15 – 5.35 GHz
16. 5.470 – 5.725 GHz
17. 5.725 – 5.825 GHz
18. 5G Wi-Fi Transmitter Power:
19. 5.15 – 5.25 GHz: < 23 dBm
20. 5.25 – 5.35 GHz & 5.470 – 5.725 GHz: < 20 dBm
21. 5.725 – 5.825 GHz: < 14 dBm (EIRP)
22. 2.4G Wireless Transmitter Frequency Range: 2406 – 2474 MHz
23. 2.4G Wireless Transmitter Power: < 10 dBm (EIRP)
24. Note: Band 5.6 – 5.64 GHz disabled in Australia / New Zealand

Video Specifications

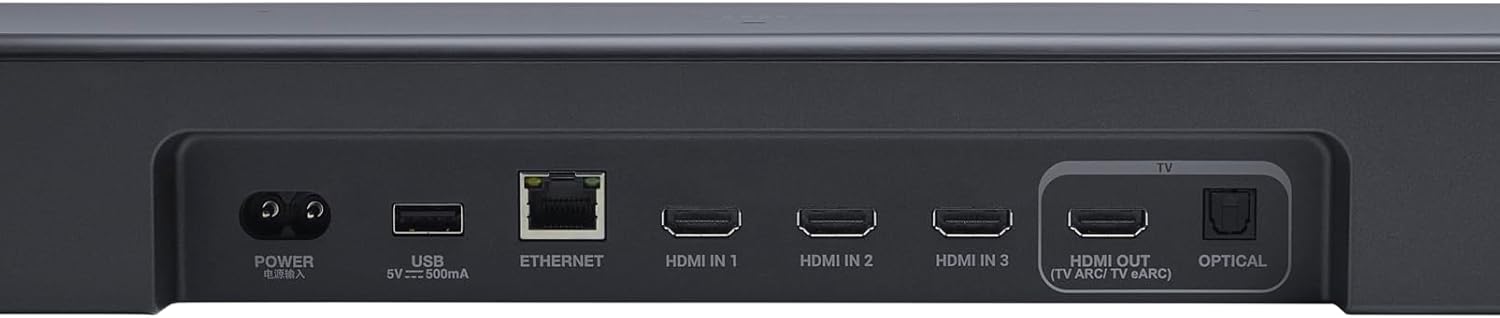

1. HDMI Video Inputs: 3
2. HDMI Video Output: 1 (with eARC)
3. HDMI HDCP Version: 2.3
4. HDR Pass-Through: HDR10+, Dolby Vision

What's in The Box?

1. 1 x Main Soundbar
2. 2 x Detachable Wireless Surround Speakers
3. 1 x Wireless Subwoofer
4. Remote Control with 2 x Batteries
5. Power Cords (up to 6 pcs, depending on region SKU)
6. 1 x HDMI Cable
7. Wall-mount Kit (L-shape brackets for main bar, U-shape brackets for surrounds, screws included)
8. 4 x Side Caps
9. Quick Start Guide
10. Safety Instruction and Warranty Card
11. Wall Mount Template
