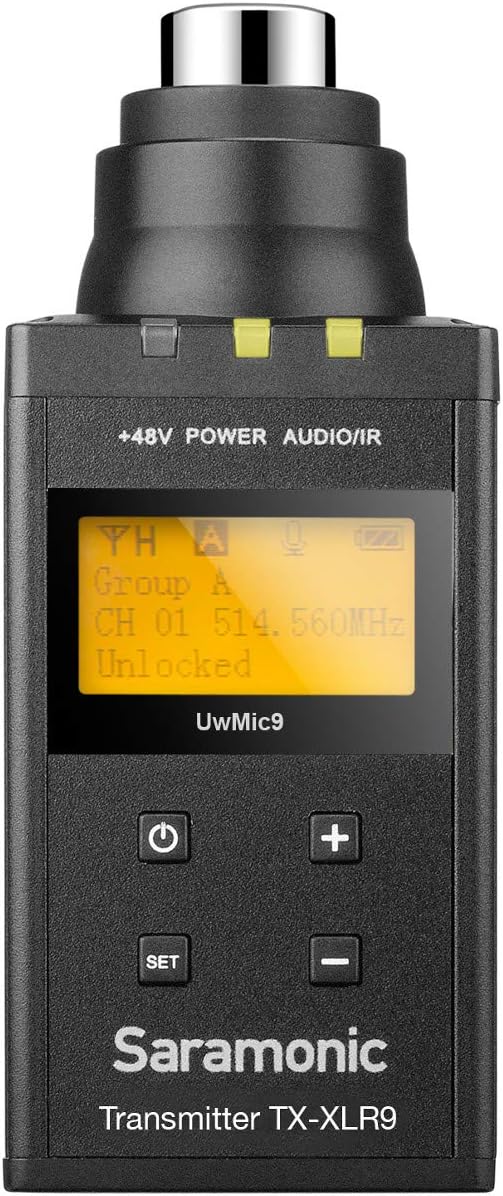

Saramonic TX-XLR9 Plug-on XLR Transmitter for UwMIC9 Digital UHF Wireless Microphone System

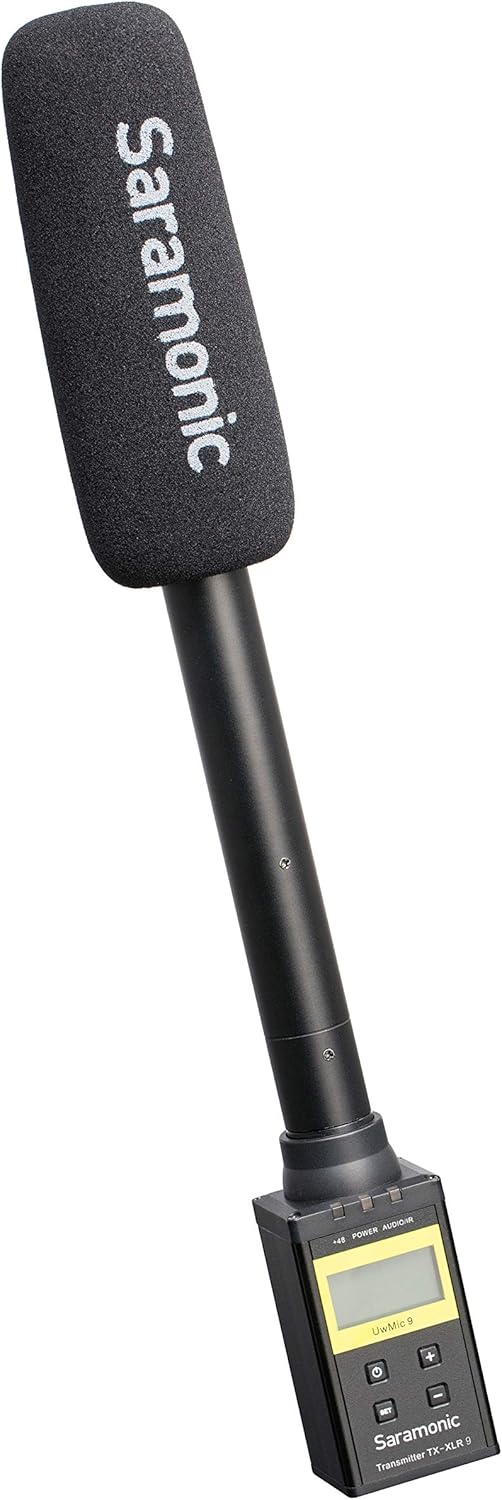

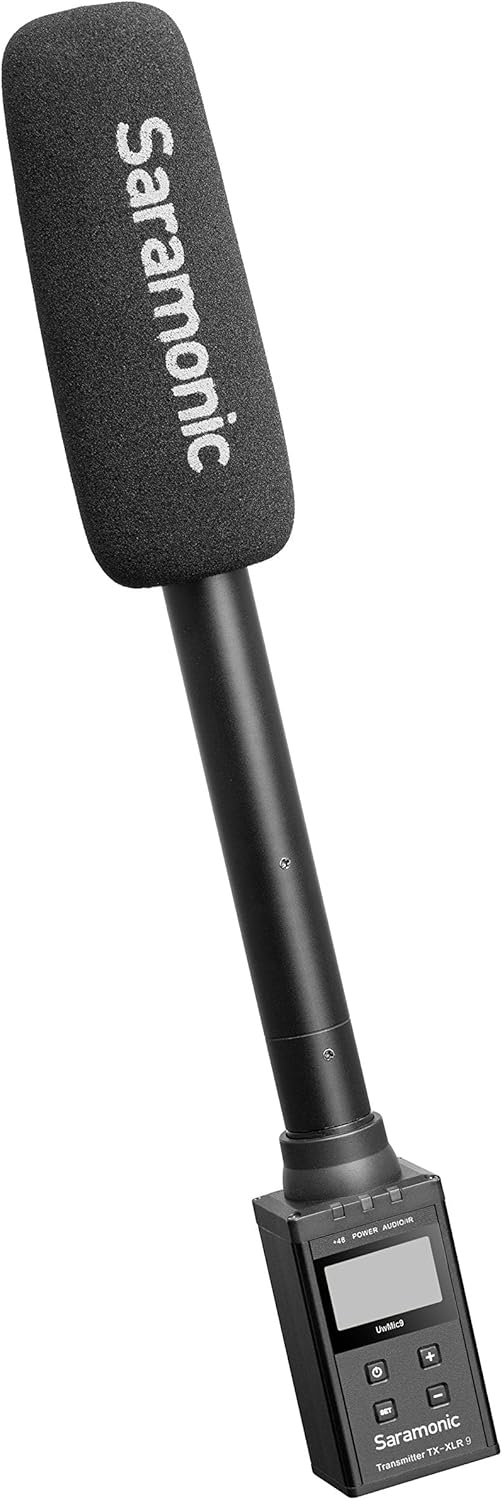

The Saramonic TX-XLR9 is a wireless UHF plug-on transmitter designed for the UwMic9 RX9 and RX-XLR9 receivers that makes any kind of XLR microphone wireless. It provides stellar, broadcast-quality sound and can easily be attached to a handheld interview microphone, like the Saramonic SR-HM7, or any other kind of XLR microphone and use it wirelessly. The TX-XLR9 can also provide +48V phantom power, allowing you to use any kind of condenser microphone wirelessly, such as the Saramonic SoundBird V1 or T3 shotgun microphone.

1. Uhf 514~596mhz
2. 96 selectable channels in 2 groups
3. Over 330-feet (100M) in Open areas or 200-feet (60M) with obstacles
4. Easy-to-read LCD displays
5. Provide +48V Phantom power
6. Channels: 96 selectable channels in 2 groups (A and B)
7. Wireless Frequency Range: 514 MHz - 596 MHz
8. Oscillator Type: PLL synthesizer
9. Input: Locking XLR Connector
10. Phantom Power: Selectable +48V Phantom Power (On/Off)
11. Reference audio input level: –60 dBV (MIC input, 0 dB attenuation)
12. Antenna: 1/4 λ wire antenna
13. Signal to Noise Ratio: 70 dB or more
14. Voice Delay: 12 ms
15. Reference Deviation: +/- 5 kHz (-60 dBV, 1 kHz input)
16. Frequency Response: 40 Hz to 18 kHz (+/- 3dB)
17. Distortion: 0.5% or less
18. Spur Suppression: -60 dB
19. Batteries: 2 LR6/AA size batteries
20. Dimensions: 4.15 x 1.69 x 1.37” (105.5 x 43 x 34.7mm)
21. Weight: 4.87 oz (138g) (without batteries)
