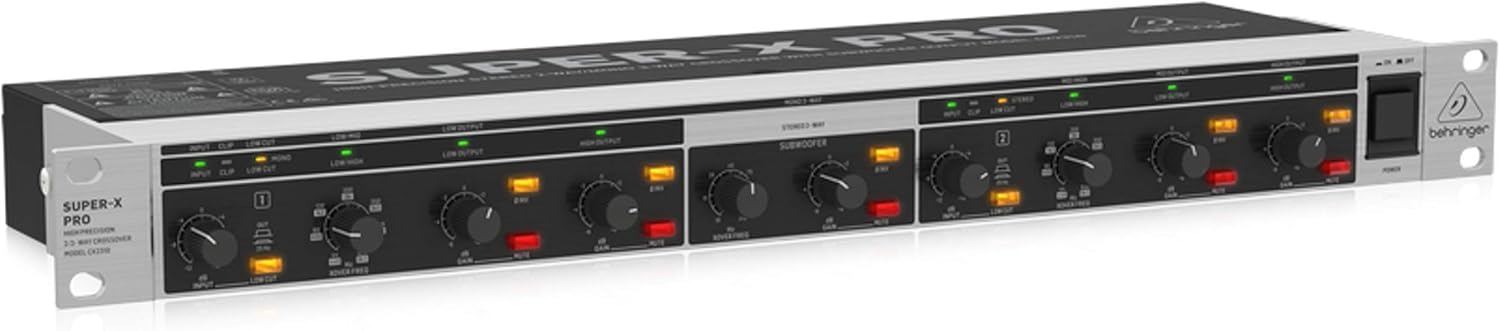

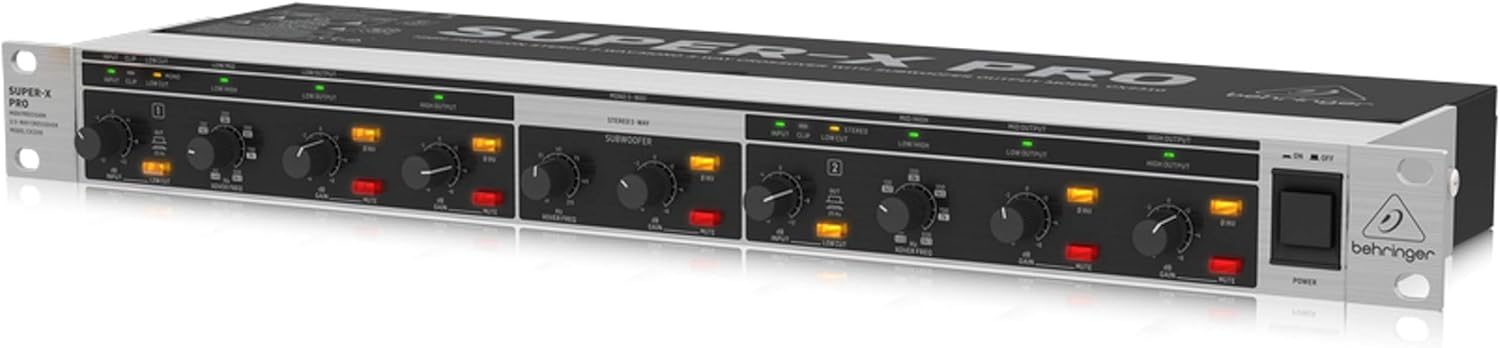

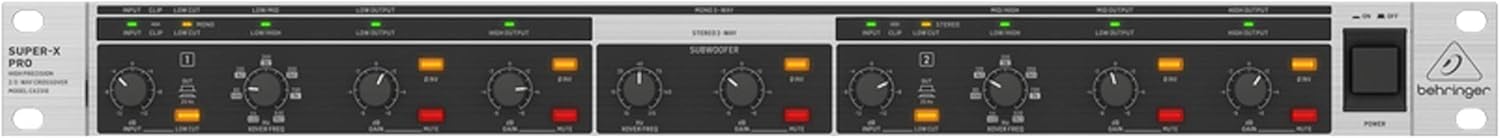

Behringer SUPER-X PRO CX2310 Professional High-Precision Stereo 2-Way/Mono 3-Way Crossover with Subwoofer Output

Key Features

1. Professional stereo 2-way or mono 3-way active crossover
2. High-quality circuitry with premium components for accurate audio performance
3. Ultra-low-noise operational amplifiers for clean, transparent sound
4. Balanced and unbalanced XLR inputs and outputs
5. Precision 24 dB/octave Linkwitz-Riley filters for seamless frequency separation
6. Additional mono subwoofer output with independent frequency (10–235 Hz) and level controls
7. 1% metal film resistors and tight-tolerance components for precise frequency selection and ultra-low thermal noise
8. Flat summed frequency response with zero phase difference
9. Individual output gain controls for each frequency band
10. Individual mute switches for quick speaker band adjustment
11. Individual phase reverse switches for instant phase correction
12. Switchable 25 Hz low-cut filter on each input to protect low-frequency drivers
13. Servo-balanced, gold-plated XLR connectors for reliable signal transmission
14. High-precision potentiometers for accurate and repeatable adjustments
15. Bright LED status matrix for clear operating mode and control indication
16. Illuminated switches for easy operation in dark environments
17. Internal universal switch-mode power supply (100–240V AC) for low noise and energy efficiency

Audio Performance

1. Delivers clean, balanced, and efficient sound reproduction
2. Produces tight, punchy bass with clear vocals and detailed instruments
3. Improves overall loudspeaker performance and system efficiency
4. Protects speaker components through accurate frequency distribution
5. Built-in mute and phase controls simplify system setup and troubleshooting

Operating Modes

1. Stereo 2-Way Mode: Separates left and right channels into low (woofer) and high (tweeter) frequencies
2. Mono 3-Way Mode: Separates audio into low, mid, and high frequency bands
3. Dedicated mono subwoofer output in both modes, effectively enabling:
4. Stereo 2-way + Mono subwoofer
5. Mono 4-way crossover configuration

Ideal For

1. Professional PA systems
2. Live sound reinforcement
3. DJs and event sound systems
4. Churches and conference venues
5. Recording studios and fixed audio installations

Specifications

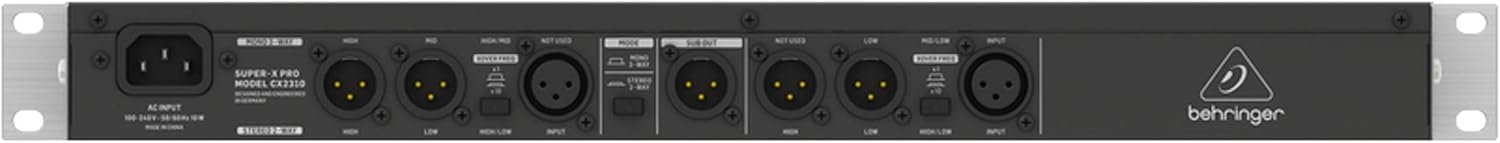

Audio Inputs & Outputs

1. Audio Inputs: 2 × XLR 3-pin line inputs
2. Audio Outputs: 5 × XLR 3-pin outputs
3. Input Impedance:52 kΩ (Balanced)
4. 26 kΩ (Unbalanced)
5. Output Impedance: <100 Ω (Balanced or Unbalanced)
6. Maximum Input Level: +22 dBu
7. Maximum Output Level: +21 dBu
8. Common Mode Rejection Ratio (CMRR): >60 dB @ 1 kHz

Audio Performance

1. Bandwidth: 20 Hz – 20 kHz (+0/-0.5 dB)
2. Frequency Response: 10 Hz – 60 kHz (+0/-3 dB)
3. Signal-to-Noise Ratio (20 Hz – 20 kHz, Unweighted):Stereo Low Output: >97 dB
4. Mono Low Output: >97 dB
5. Mono Mid Output: >98 dB
6. Stereo High Output: >95 dB
7. Mono High Output: >94 dB
8. Subwoofer Output: >97 dB
9. Interchannel Crosstalk: < -90 dB

Crossover Specifications

1. Filter Type: 24 dB/Octave Linkwitz-Riley, State Variable

Mono Mode Crossover Frequency Range

1. Low/High: 44 Hz – 930 Hz (×1), 440 Hz – 9.3 kHz (×10)
2. Low/Mid: 44 Hz – 930 Hz (×1), 440 Hz – 9.3 kHz (×10)
3. Mid/High: 44 Hz – 930 Hz (×1), 440 Hz – 9.3 kHz (×10)

Stereo Mode Crossover Frequency Range

1. Low/High: 44 Hz – 930 Hz (×1), 440 Hz – 9.3 kHz (×10)
2. Subwoofer: 10 Hz – 215 Hz (-3 dB)

Filters

1. Low-Cut Filter: 25 Hz (-3 dB), 12 dB/Octave

Power

1. Power Supply: 100–240V AC, 50/60 Hz
2. Power Consumption: 10 W
3. Power Cable: Included

Physical Specifications

1. Rack Mount: Standard 19-inch rack (2 rack ears included)
2. Color: Silver / Black
3. Dimensions (W × D × H): 483 × 147 × 44 mm (19 × 5.8 × 1.7")
4. Weight: 1.6 kg (3.5 lb)

Package Information

1. Package Weight: 2.09 kg (4.61 lb)
2. Box Dimensions (L × W × H): 20.6 × 10 × 4.2 inches

Other

1. Mobile App Support: No
2. Environmental Resistance: None specified
