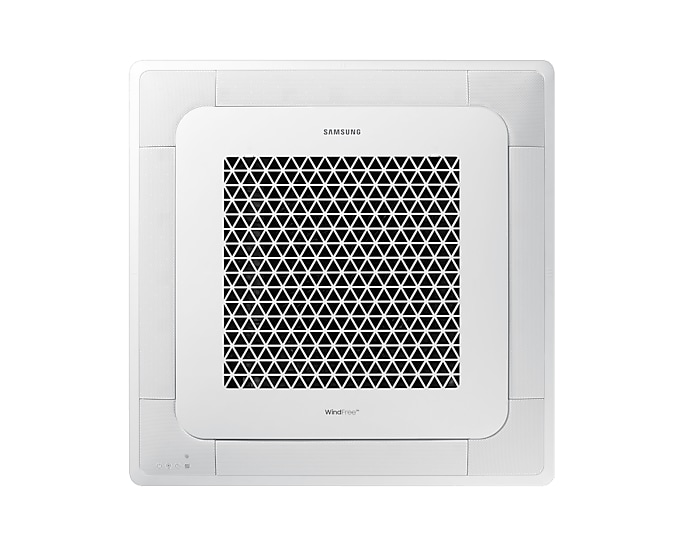

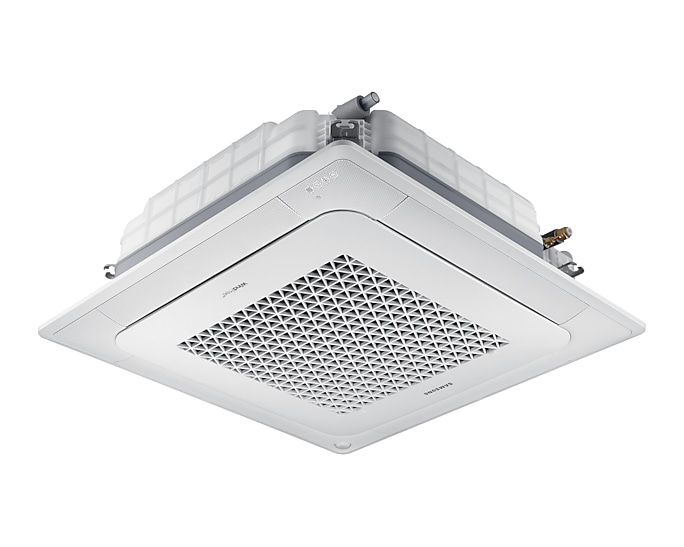

Samsung Ceiling Cassette 48000 BTU Wind Free, Energy Saving, Big Blade, Motion Detect Sensor AC100 TN4DKC/EA-48BTU

System Specifications

1. Type: 5.2kW-1Φ-4Way
2. Mode: COOLING ONLY
3. Indoor Unit Model: AC052TN4DKC/EA
4. Outdoor Unit Model: AC052TXADKC/EA

Capacity

1. Cooling Capacity [kW]: 1.0 / 5.0 / 6.0 kW

Energy Efficiency

1. EER (Nominal Cooling): 3.55

Power

1. Power Input (Nominal Cooling): 0.33 / 1.41 / 2.1 kW
2. Current Input (Nominal Cooling): 1.5 / 6.7 / 9.5 A
3. MCA (Minimum Circuit Amps): 21.5 A
4. MFA (Maximum Fuse Amps): 25.0 A

Piping Connections

1. Liquid Pipe (Φ, mm): 6.35 mm (1/4")
2. Gas Pipe (Φ, mm): 12.7 mm (1/2")
3. Installation Max. Length: 30 m
4. Installation Max. Height: 20 m

Refrigerant

1. Type: R410A
2. Control Method: EEV
3. Factory Charging: 1.30 kg

Fan (Indoor Unit)

1. Type: Turbo Fan
2. Motor Output: 65 W
3. Air Flow Rate (High / Mid / Low): 16.9 / 15.9 / 14.9 CMM

Sound Levels (Indoor Unit)

1. Sound Pressure (High / Mid / Low): 35 / 33 / 31 dB(A)

Dimensions and Weight (Indoor Unit)

1. Net Dimensions (WxHxD): 840 x 204 x 840 mm
2. Net Weight: 14.5 kg
3. Shipping Dimensions (WxHxD): 898 x 275 x 898 mm
4. Shipping Weight: 17.5 kg

Panel Size

1. Model: PC4NUFDAN
2. Net Dimensions (WxHxD): 950 x 48 x 950 mm
3. Net Weight: 6.3 kg
4. Shipping Dimensions (WxHxD): 1010 x 117 x 1000 mm
5. Shipping Weight: 8.7 kg

Drain

1. Drain Pipe: VP25 (OD 32, ID 25)
2. Drain Pump: Built-in
3. Max. Lifting Height / Displacement: 750 mm / 24

Compressor

1. Type: Twin BLDC Rotary
2. Model: UG9TK3150FE4
3. Output: 1.42 kW
4. Oil Type: POE
5. Oil Initial Charge: 500 cc

Fan (Outdoor Unit)

1. Air Flow Rate (Cooling): 43 CMM

Sound Levels (Outdoor Unit)

1. Sound Pressure (Cooling): 50 dB(A)

Dimensions and Weight (Outdoor Unit)

1. Net Dimensions (WxHxD): 880 x 638 x 310 mm
2. Net Weight: 40.5 kg
3. Shipping Dimensions (WxHxD): 1023 x 730 x 413 mm
4. Shipping Weight: 43.5 kg

Operating Temperature Range

1. Cooling: -15°C ~ 50°C

Smart Features

1. WiFi Kit: Yes
2. App Connectivity: SmartThings App Support

This air conditioner offers advanced cooling capabilities, energy efficiency, and smart control features, making it an excellent choice for various applications.
