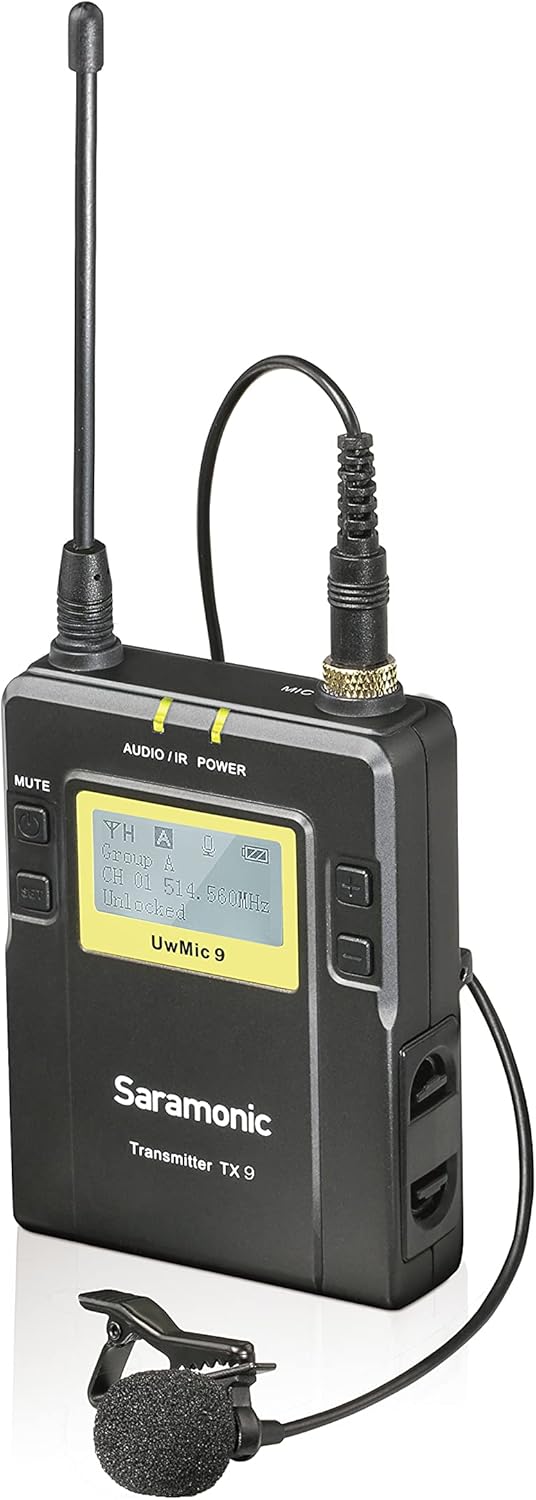

Saramonic Bodypack Transmitter & SR-M1 Omnidirectional Lavalier for UwMic9 RX9 Receiver (UwMic9 TX9)

The Saramonic UwMic9 UHF Wireless Lavalier Microphone System provides stable, interference free audio in portable, compact and low cost package. UwMic9 RX9+TX9+TX9 could support two transmitters and one receiver working simultaneously. It is a perfect fit for DSLR videography, field recording and interviews, broadcast TV, ENG, providing dependable audio broadcasting and recording.

1. Broadcast-quality UHF wireless beltpack transmitter and lavalier microphone for the RX9 dual receiver (sold separately)
2. Works right out of the box with easy plug-and-play operation, lavalier mic, mic clip, foam windscreen, and belt clip are all included
3. Professional SR-M1 omnidirectional lavalier microphone provides natural sound that’s ideal for video production
4. Durable all-metal construction with easy-to-read backlit LCD display and easy-to-use menus and controls
5. Offers up to 330-foot (100m) operating distance with infrared that makes it easy to sync channels with receiver

Transmitter

1. Number of Channels: 96
2. Channel Group: A or B
3. Display: LCD
4. Microphone: Condenser
5. Oscillator Type: PLL synthesizer
6. Carrier Frequencies: 514 – 596 MHz
7. Reference Deviation: ±5 kHz (–60 dBV, 1 kHz input)
8. Signal-to-Noise Ratio: ≥70 dB
9. Spur Suppression: –60 dB
10. Voice Delay: 12 ms
11. Antenna: 1/4 λ wire antenna
12. Audio Input Connector: 3.5 mm mini jack
13. Reference Audio Input Level: –60 dBV (MIC input, 0 dB attenuation)
14. Distortion: ≤0.5%
15. Battery: Two AA batteries
16. Transmission Range: 100 m
17. RF Output Power: <10 mW
18. Frequency Response: 20 Hz – 18 kHz
19. Weight (excl. batteries): Approx. 211.4 g
20. Dimensions: 170.9 × 63.5 × 30.0 mm

Receiver

1. Number of Channels: 96
2. Channel Group: A and B
3. Display: LCD
4. Oscillator Type: PLL synthesizer
5. Audio Output Connector: 3.5 mm mini jack
6. Headphone Output Level: 30 mW (16 Ω)
7. Antenna: 1/4 λ wire antenna
8. Receive Frequencies: 514 – 596 MHz
9. Receive Sensitivity: –95 dBm
10. Signal-to-Noise Ratio: ≥70 dB
11. Voice Delay: 12 ms
12. Reference Deviation: ±5 kHz (–60 dBV, 1 kHz input)
13. Frequency Response: 40 Hz – 18 kHz (±3 dB)
14. Distortion: ≤0.5%
15. Spur Suppression: –60 dB
16. Audio Output Level: –60 dBV
17. Battery: Two AA batteries
18. Transmission Range: 100 m
19. Weight (excl. batteries): Approx. 218 g
20. Dimensions: 170.9 × 63.5 × 30.0 mm
