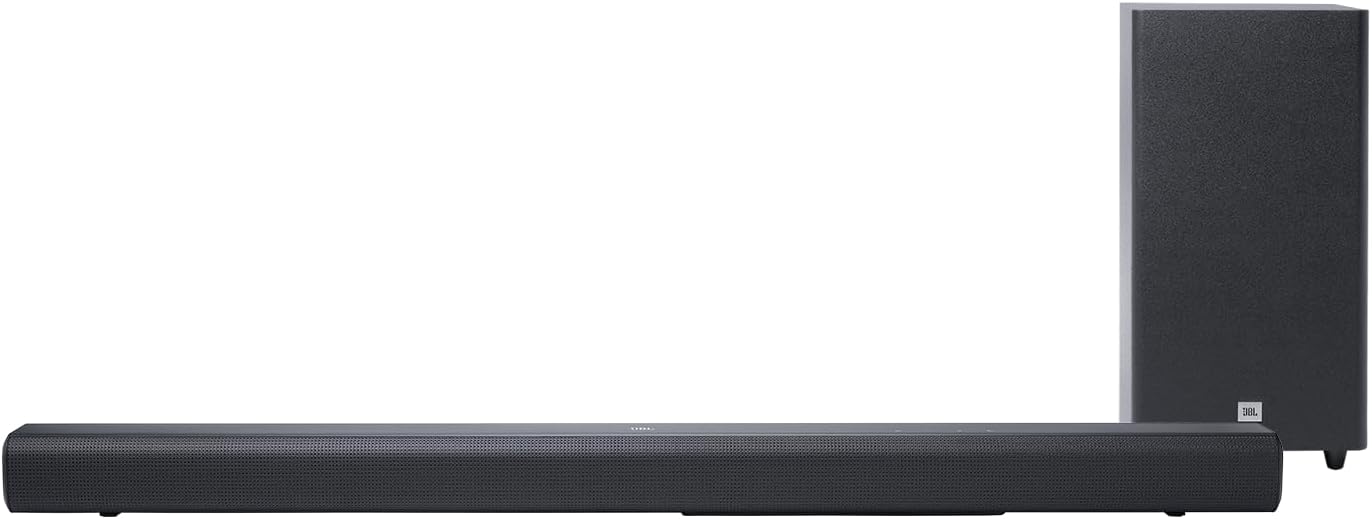

JBL Cinema SB580 3.1 Channel Soundbar with Virtual Dolby Atmos and Wireless Subwoofer - JBLSB580BLKUK, Black

Step into a world of immersive home audio with the JBL Cinema SB580 soundbar. An explosive 440 watts of powerful Virtual Dolby Atmos® sound in a compact design plus thunderous extra-deep bass from a 6.5” wireless subwoofer combine to surround you in a whole new level of sound. A dedicated center channel means TV and film dialogue is always crystal clear. High-resolution HDMI eARC, HDMI, or optical connections give you plenty of easy set-up options. And when the TV is off, seamless Bluetooth connectivity means you can use it to play all your favorite streaming music and podcasts from any device.

1. Dedicated center channel provides superior voice clarity
2. 440W power output
3. Wireless subwoofer for extra deep bass
4. Virtual Dolby Atmos
5. HDMI-in and HDMI eARC capable
6. Wireless music streaming via Bluetooth

Specifications

General Specifications

1. Model: CINEMA SB580
2. Sound System: 3.1-channel
3. Power Supply: 100–240V AC, 50/60Hz
4. Total Speaker Power Output (Max @ THD 1%): 440 W
5. Soundbar Output Power (Max @ THD 1%): 240 W
6. Subwoofer Output Power (Max @ THD 1%): 200 W

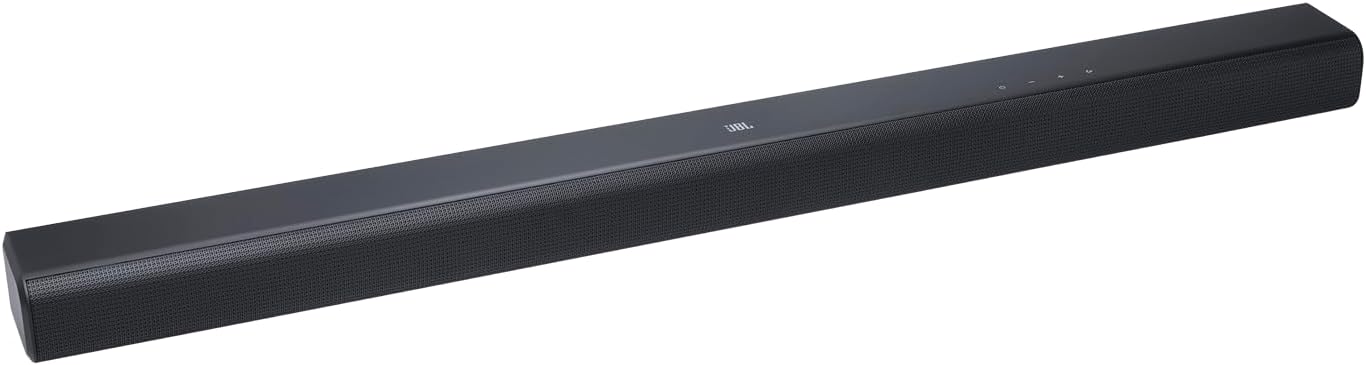

7. Soundbar Transducers:
8. 3 × (45 × 100) mm racetrack drivers
9. 3 × 13 mm tweeters

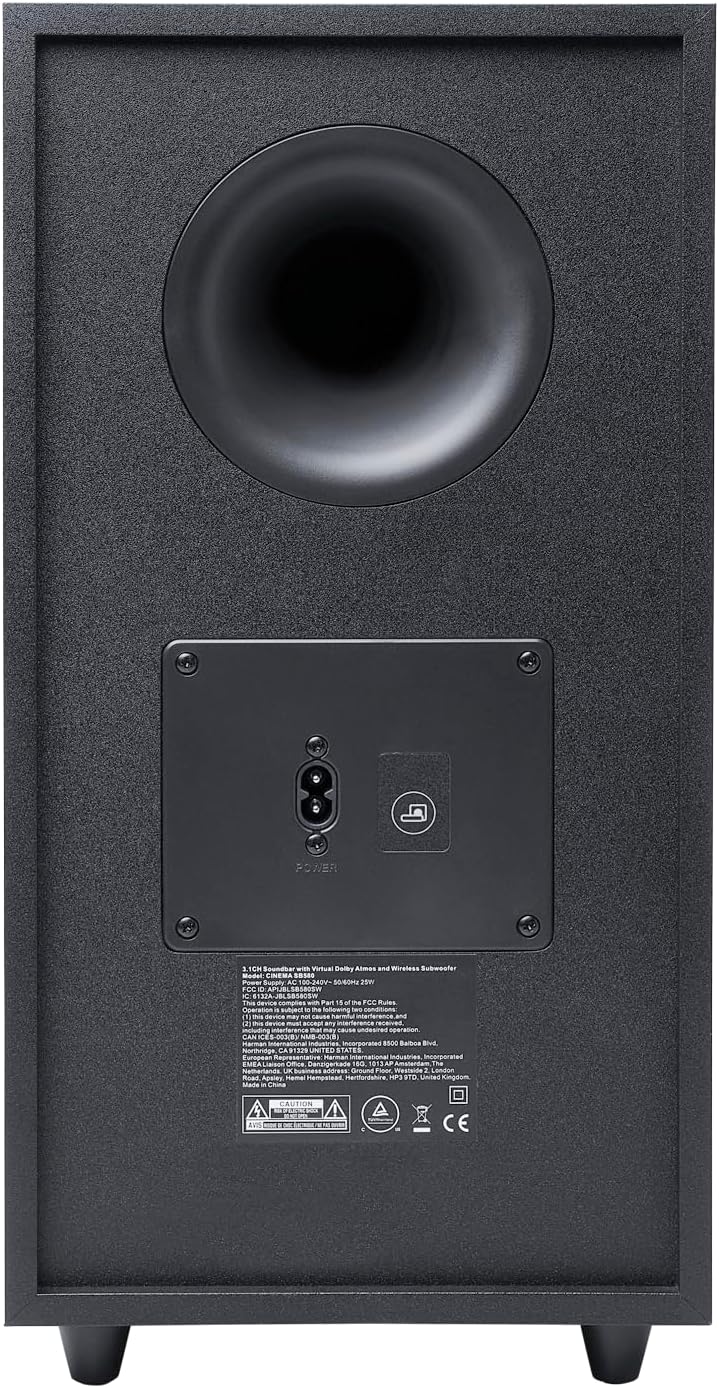

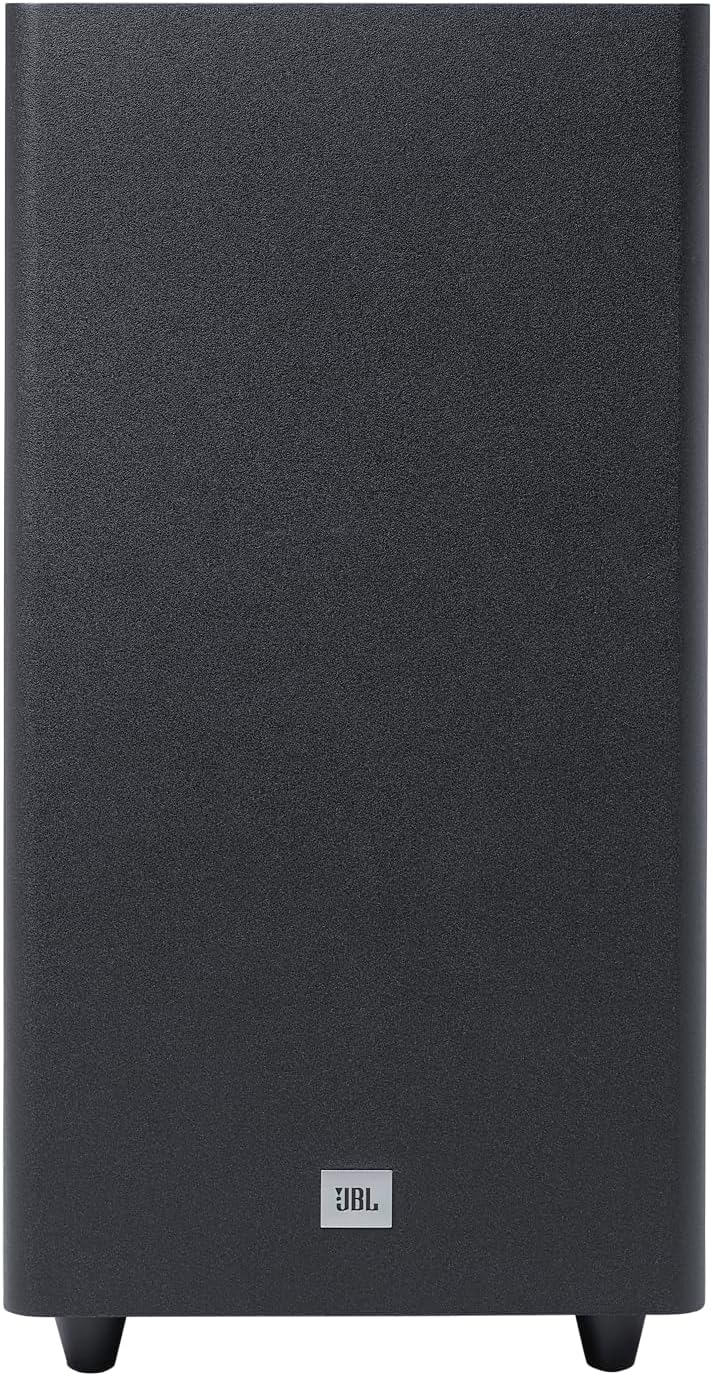

10. Subwoofer Transducer: 6.5" (165 mm) wireless subwoofer
11. Standby Power Consumption: < 0.5 W
12. Operating Temperature: 0°C – 45°C

Audio Specifications

1. Frequency Response: 40 Hz – 20 kHz (-10 dB)
2. Audio Inputs:
3. 1 × Optical
4. Bluetooth
5. USB (USB playback available in US version; service only in other versions)

Dimensions and Weight

1. Soundbar Dimensions (W × H × D):
2. 950 × 64 × 80 mm
3. 37.4" × 2.5" × 3.1"
4. Subwoofer Dimensions (W × H × D):
5. 200 × 404 × 250 mm
6. 7.9" × 15.9" × 9.9"
7. Soundbar Weight: 2.6 kg / 5.7 lbs
8. Subwoofer Weight: 5.7 kg / 12.6 lbs
9. Packaging Dimensions (W × H × D):
10. 1025 × 235 × 397 mm
11. 40.4" × 9.3" × 15.6"
12. Packaging Weight: 10.4 kg / 22.9 lbs

Control and Connectivity

1. USB Port: Type-A
2. USB Rating: 5V DC, 0.5A
3. Supported File Formats: MP3
4. MP3 Codec Support: MPEG-1 Layer 2/3, MPEG-2 Layer 3, MPEG-2.5 Layer 3
5. MP3 Sampling Rate: 16 – 48 kHz

Bluetooth and Wireless

1. Bluetooth Version: 5.3
2. Bluetooth Profiles: A2DP 1.3, AVRCP 1.6
3. Bluetooth Frequency Range: 2400 – 2483.5 MHz
4. Bluetooth Max Transmitting Power: < 10 dBm (EIRP)
5. Bluetooth Modulation: GFSK, π/4 DQPSK, 8DPSK
6. 2.4G Wireless Frequency Range: 2402 – 2481 MHz
7. 2.4G Wireless Transmitter Power: < 10 dBm (EIRP)
8. 2.4G Wireless Modulation: GFSK

Video Specifications

1. HDMI Video Input: 1
2. HDMI Video Output: 1 (with eARC)
3. HDMI HDCP Version: 2.3

What’s in the Box

1. Soundbar
2. Wireless subwoofer
3. Remote control with batteries
4. Power cords (up to 8 pcs, depending on regional SKU)
5. HDMI cable
6. Wall-mount bracket kit with screws
7. Quick start guide
8. Warranty card
9. Safety sheet
