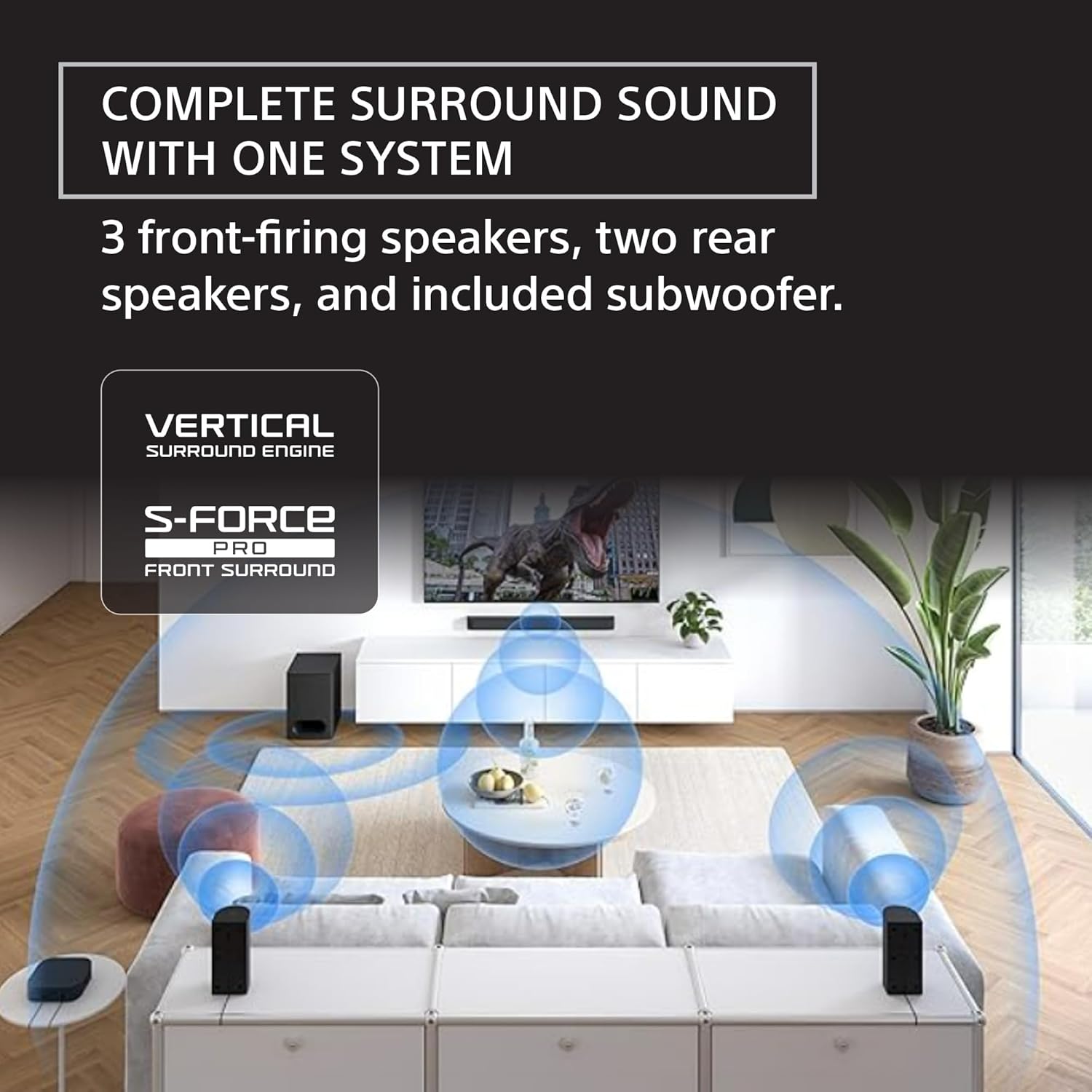

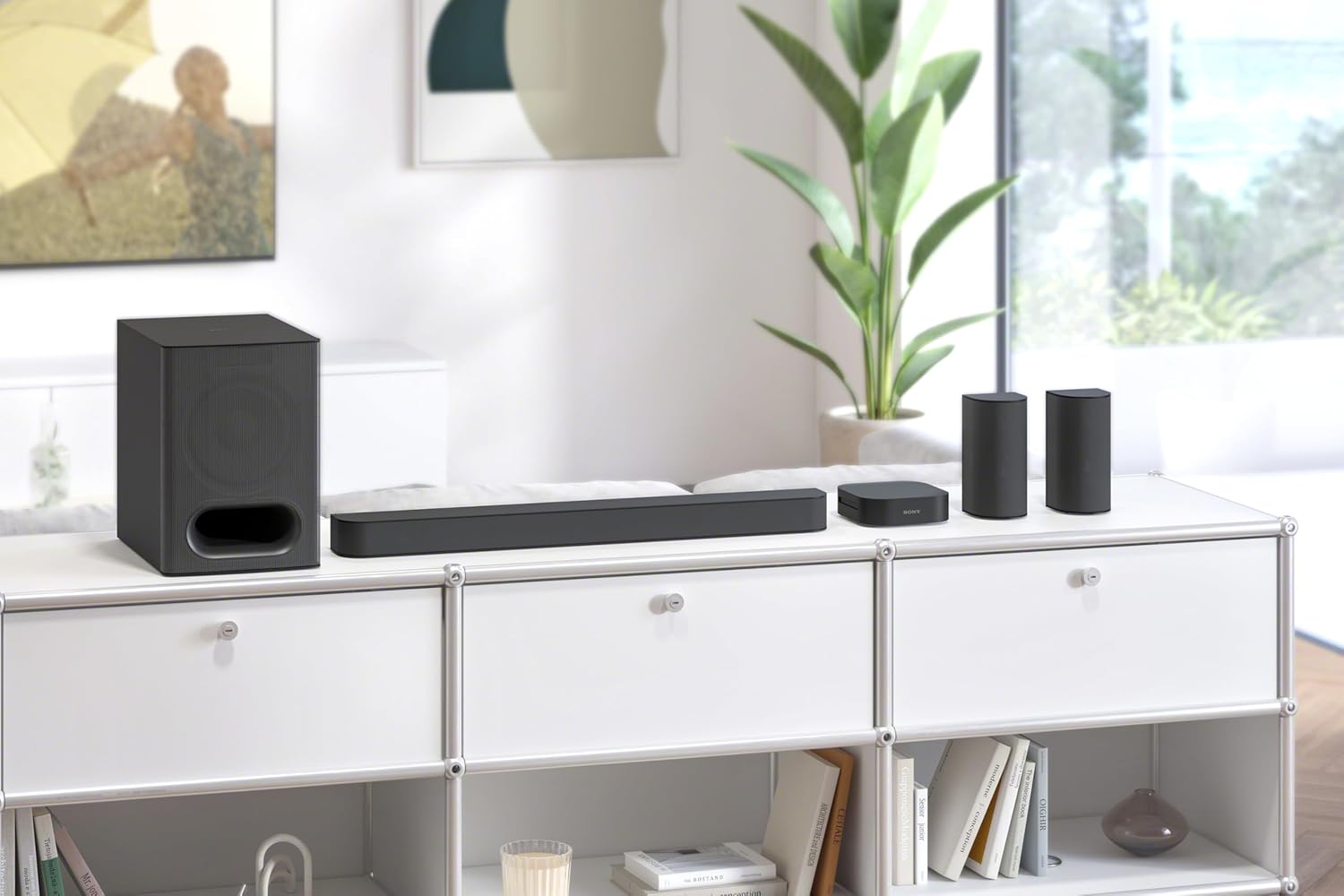

- 5.1CH SURROUND SOUND: Hear cinematic surround sound and deep bass with 3 front-firing speakers, two rear speakers, and included subwoofer.
- SOUND STRAIGHT FROM CINEMA: Get the best streaming experience with support for Dolby Atmos and DTS:X.
- CLEAR DIALOGUE: Catch every word in the scene with dedicated center channel speaker.
- ROOM FILLING SOUND: Multi Stereo enhances your listening experience by playing the same sound from all speakers, creating a room-filling sound boost.
- BRAVIA THEATER AND BRAVIA TV, THE PERFECT PAIR: Pair with compatible BRAVIA TVs to control the soundbar from the TV menu and take advantage of Voice Zoom 3 for enhanced dialogue.
- BRAVIA CONNECT APP: Use BRAVIA Connect app to easily control BRAVIA Theater from your smartphone and change volume, sound profiles, and advanced settings.
- WIRELESS BLUETOOTHS STREAMING: Enjoy wireless music streaming from your smartphone with Bluetooth technology.
- SUPREME MUSIC QUALITY: Your music is up-mixed, restoring acoustic details for a richer listening experience.

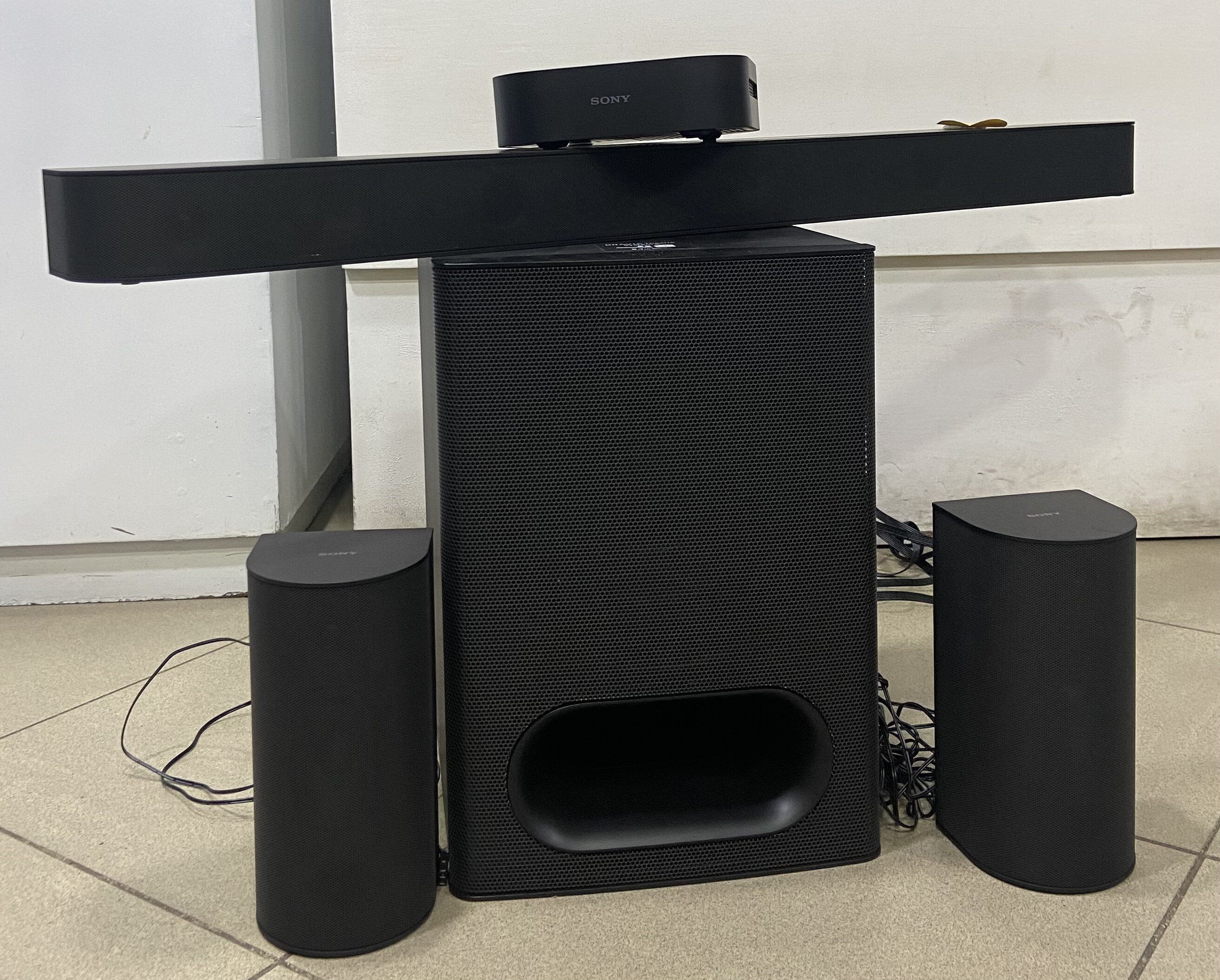

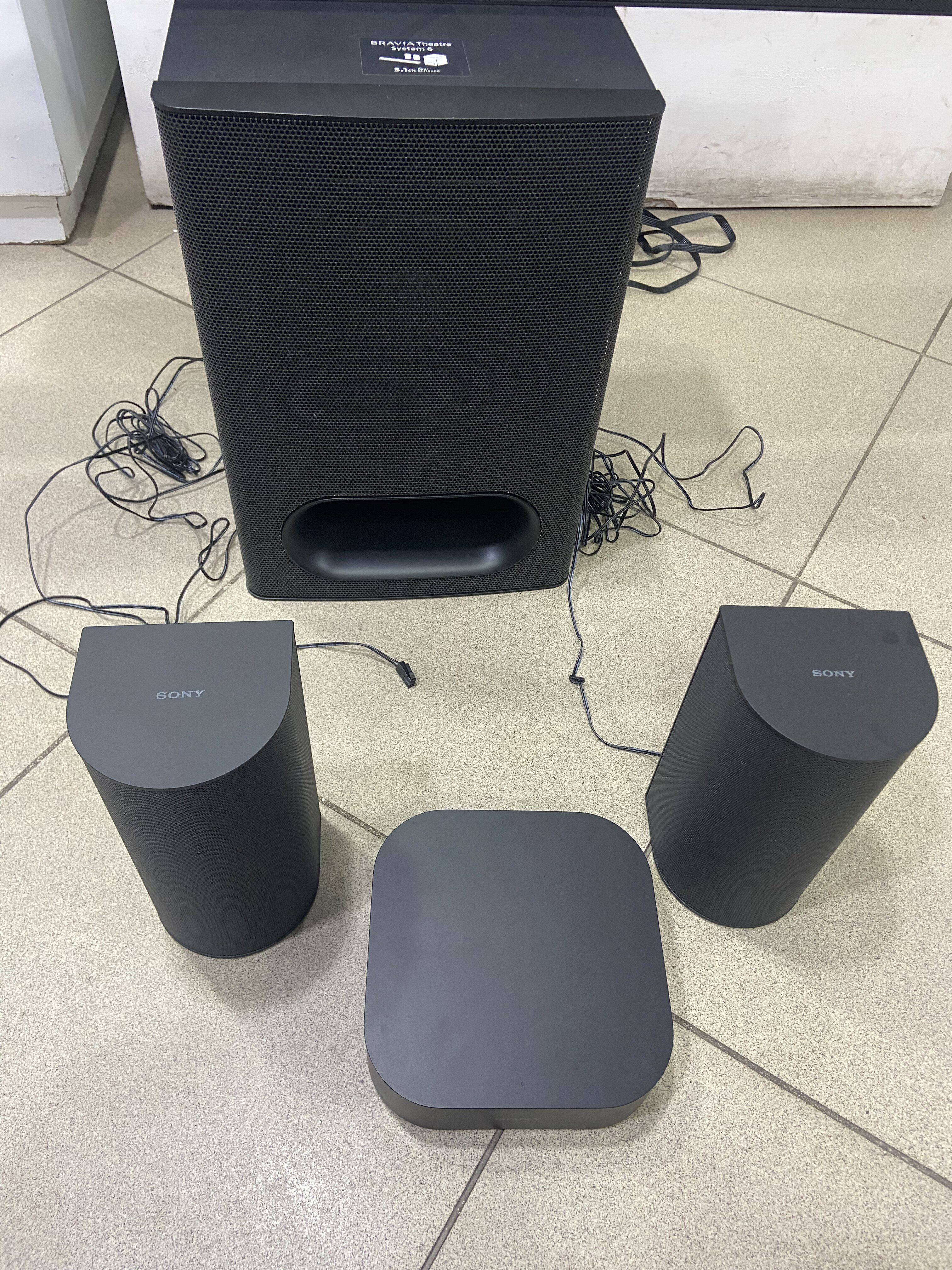

SONY BRAVIA THEATER SPECS

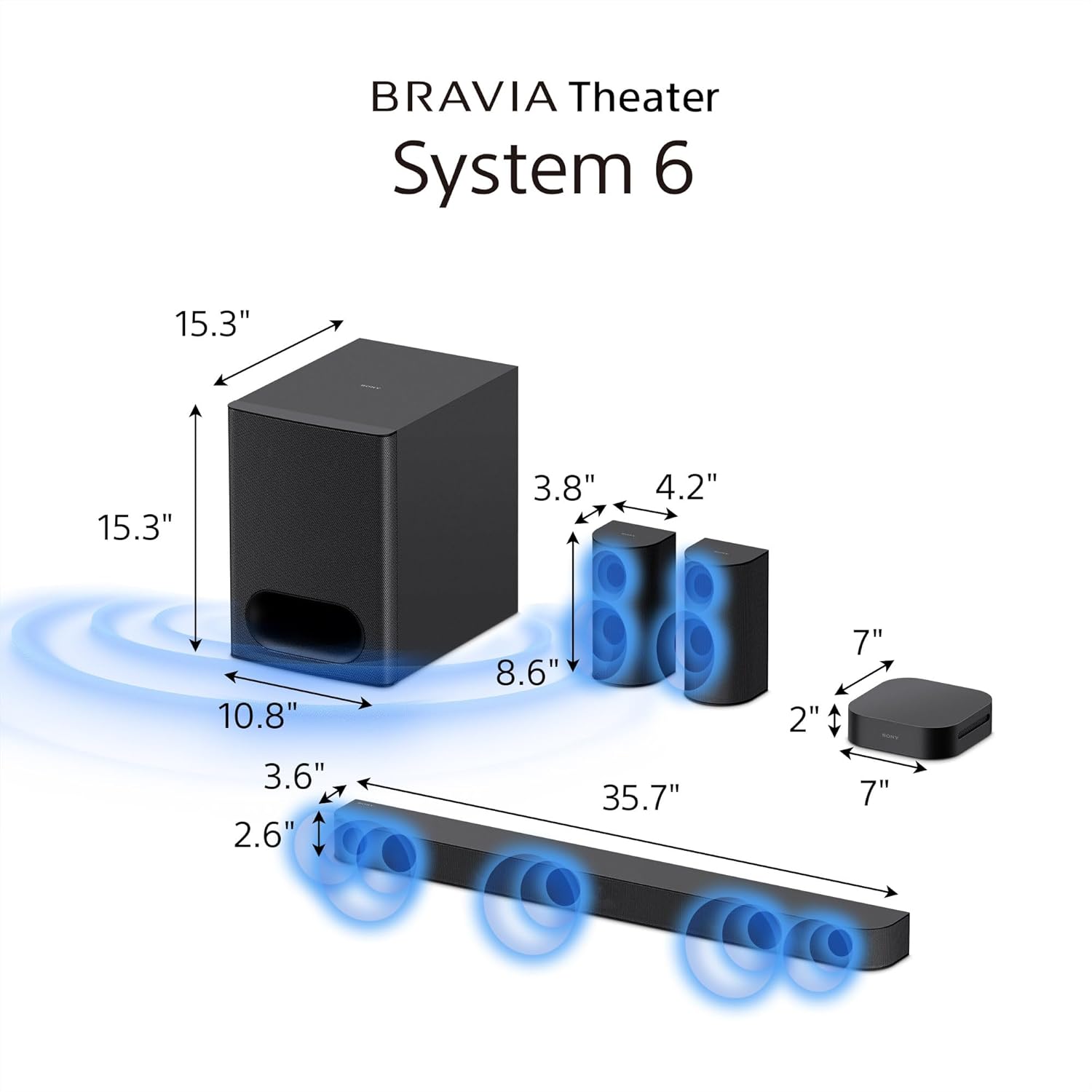

Size & Weight
- Amp Box (W x H x D): 175 x 52 x 175 mm (7 in x 2 1/8 in x 7 in)
- Amp Box Weight: 0.76 kg (1 lb 11 oz)

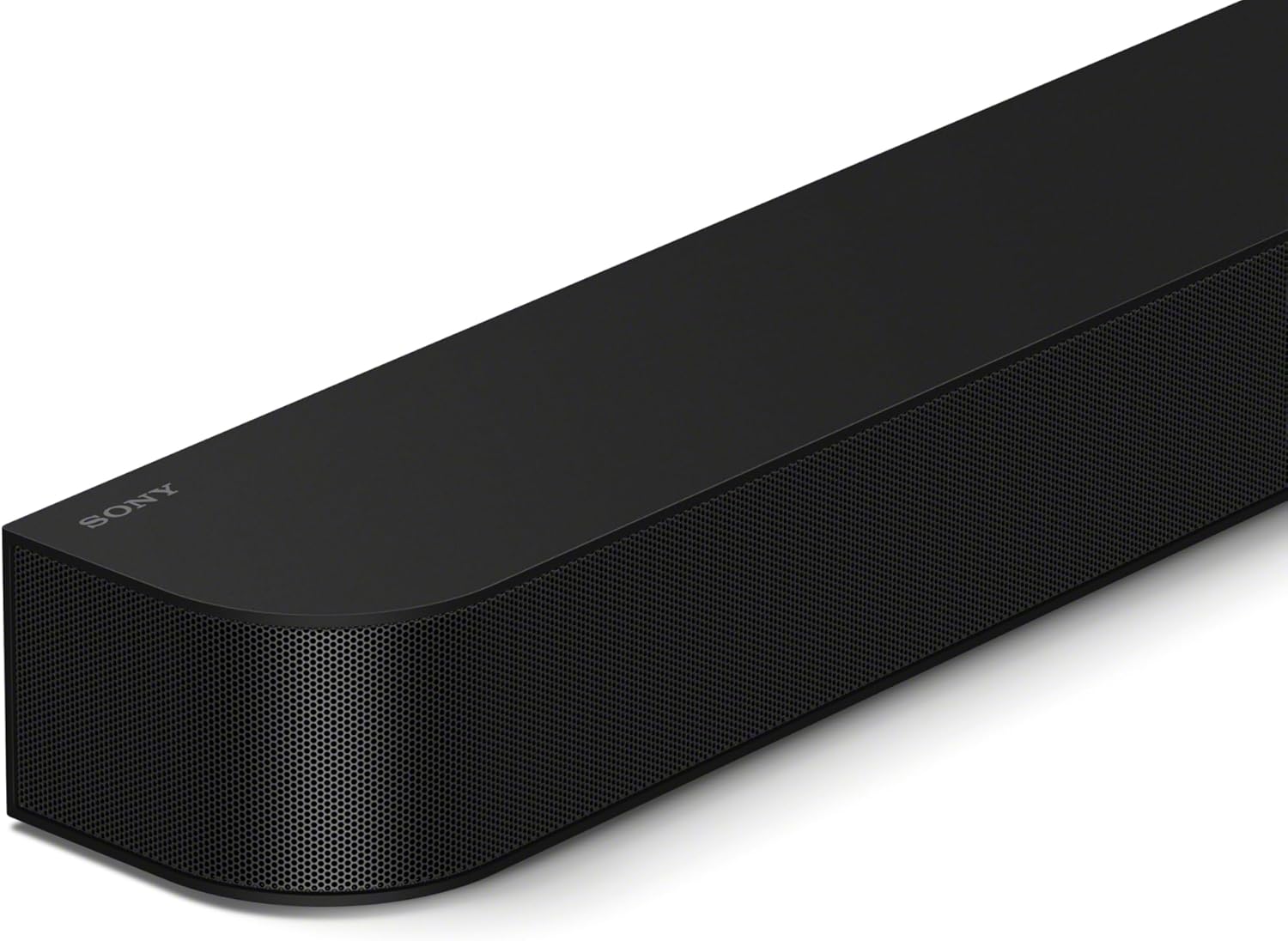

- Main Unit Size (Body Only): 907 x 64 x 90 mm (35 3/4 in x 2 5/8 in x 3 5/8 in)
- Main Unit Weight (Body Only): 2.6 kg (5 lb 12 oz)
- Subwoofer Size (W x H x D): 275 x 388 x 388 mm
- Subwoofer Weight: 11.6 kg
- Rear Speaker Size (W x H x D): 106 x 216 x 98 mm (4 1/4 in x 8 5/8 in x 3 7/8 in)
- Rear Speaker Weight: 0.89 kg (1 lb 16 oz)
Amplifier
- Channels: 5.1 ch
- Type: Digital Amplifier, S-Master
- Total Power Output: 1000 W
Subwoofer
- Type: Wired
Interface
- Bluetooth Version: 5.3
- Supported Codecs: SBC, AAC
- Input/Output Terminals: Optical audio input, Analogue audio input (stereo mini)
- HDMI: Yes, with CEC support
- Number of HDMI Ports: Input: 0 / Output: 1 (eARC / ARC)
- eARC: Yes
- BRAVIA Sync: Yes
Audio Formats
- Bluetooth Communication (Receiver): AAC, SBC
- HDMI eARC: Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS, DTS ES, DTS 96/24, DTS:X, LPCM (2ch / 5.1ch / 7.1ch)
- Optical Input: Dolby Digital, Dolby Digital Plus, Dolby Digital Plus/Atmos, DTS, LPCM 2ch
Sound Function
- Enhancement Technology: DSEE
- Virtual Surround: S-Force PRO, Vertical Surround Engine, DTS Virtual:X
- Sound Effects: Night Mode, Voice Mode
- Sound Modes: Sound Field (Upmix / Multi Stereo)

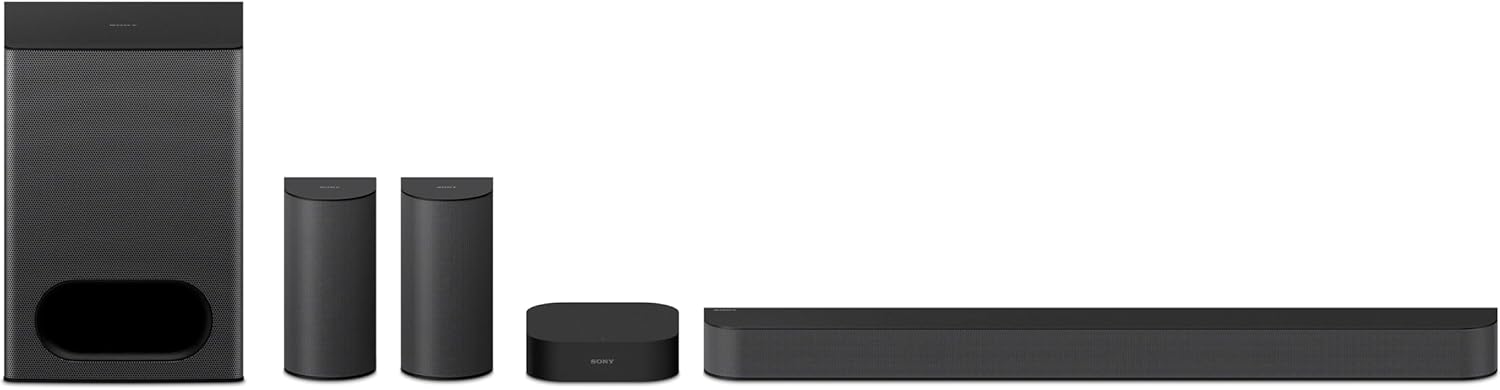

Speaker Layout
- System: 5.1 ch (10 Speaker Units)
- Subwoofer Model: SA-WS60
- Bar Speaker Model: SS-S60
- Rear Speaker Model: SS-SS60
Application
- Sony | BRAVIA Connect: Yes
- Functions with BRAVIA: Voice Zoom 3™, Quick Setting Menu
Power & Energy
- Power Consumption (Approx): Subwoofer 60 W / Wireless Amp 30 W
- Standby Power Consumption:
- Subwoofer: 0.5 W (HDMI CEC), 2.0 W (Bluetooth, all terminals & networks connected)
- Wireless Amp: 0.5 W (Wireless Audio, all terminals & networks connected)
- Networked Standby Mode: Activates after 20 minutes
- Low Power/Off Mode: Subwoofer 0.5 W, Wireless Amp 0.3 W
- Eco Features: Wireless network on/off switch
Installation
- Wall-Mountable: Yes
What's in the Box
- Remote Control
- Batteries for Remote
- HDMI Cable
- AC Cord
- Foot
- Wall Mounting Template
- Quick Setup Guide
- Reference Guide
