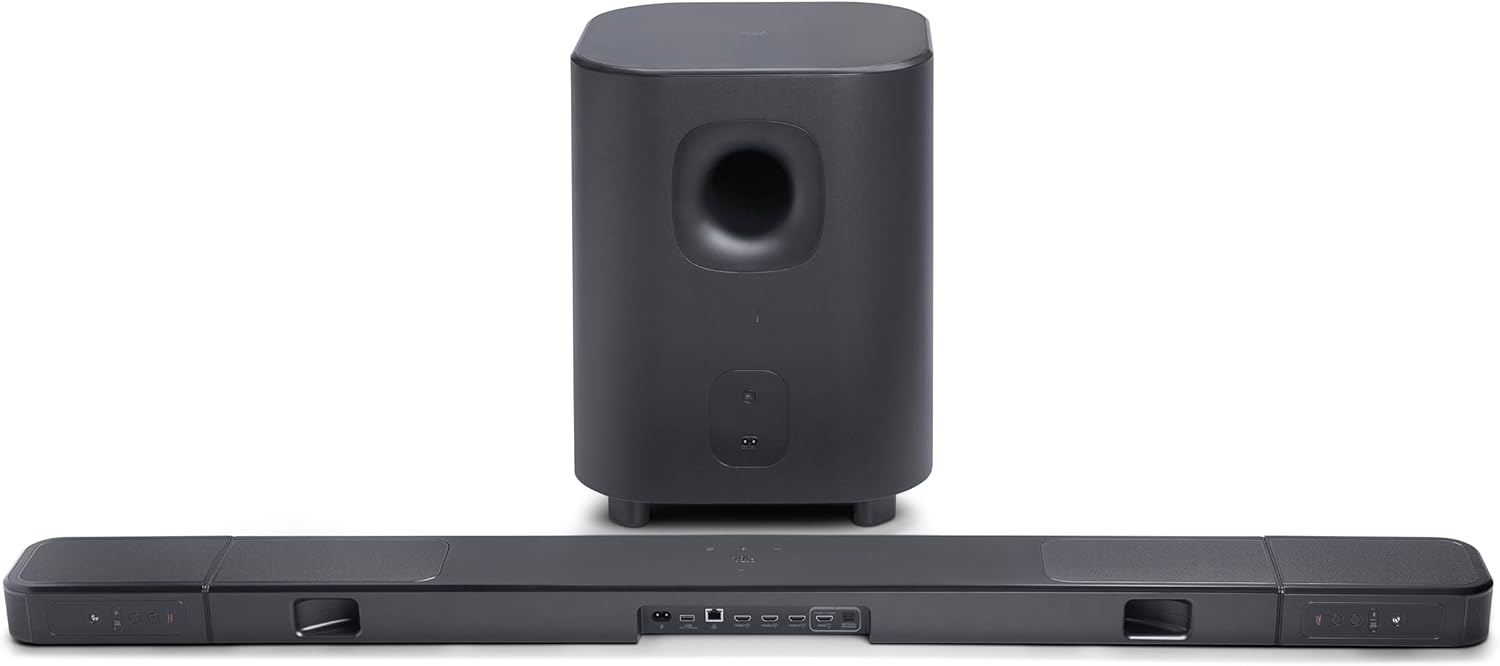

JBL Bar 1300XMK2-11.1.4 Channel soundbar System with Detachable Surround Speakers & Dolby Atmos® & DTS:X®, 2470W max Output Power & a 12" Wireless subwoofer (Black)

Get ultimate 3D spatial sound in seconds - without the wires

You can get a cinematic sound experience in seconds. One that fills your entire room with true Dolby Atmos® and DTS:X for vivid, immersive 3D spatial audio you can customize to fit any moment. Just pick up the detachable wireless speakers from either end of the JBL BAR 1300MK2 soundbar and put them behind where you're sitting. Far apart for family movie night with the new superhero hit or closer for a cozy romantic playlist—chosen from hundreds of available streaming services. Feel deep, punchy bass from a small but powerful subwoofer and enjoy the widest, most cinematic soundstage with MultiBeam™ 3.0. When you're not watching TV, pair one or both of the detachable speakers to any Bluetooth® device for portable and powerful sound anywhere in your home. And all of this works seamlessly with your TV. Your TV just can't offer the rich, powerful sound you deserve, but, JBL has meant great sound for cinemas, recording studios, and concert halls for nearly a century. Bring our level of craft to your own home.

Features

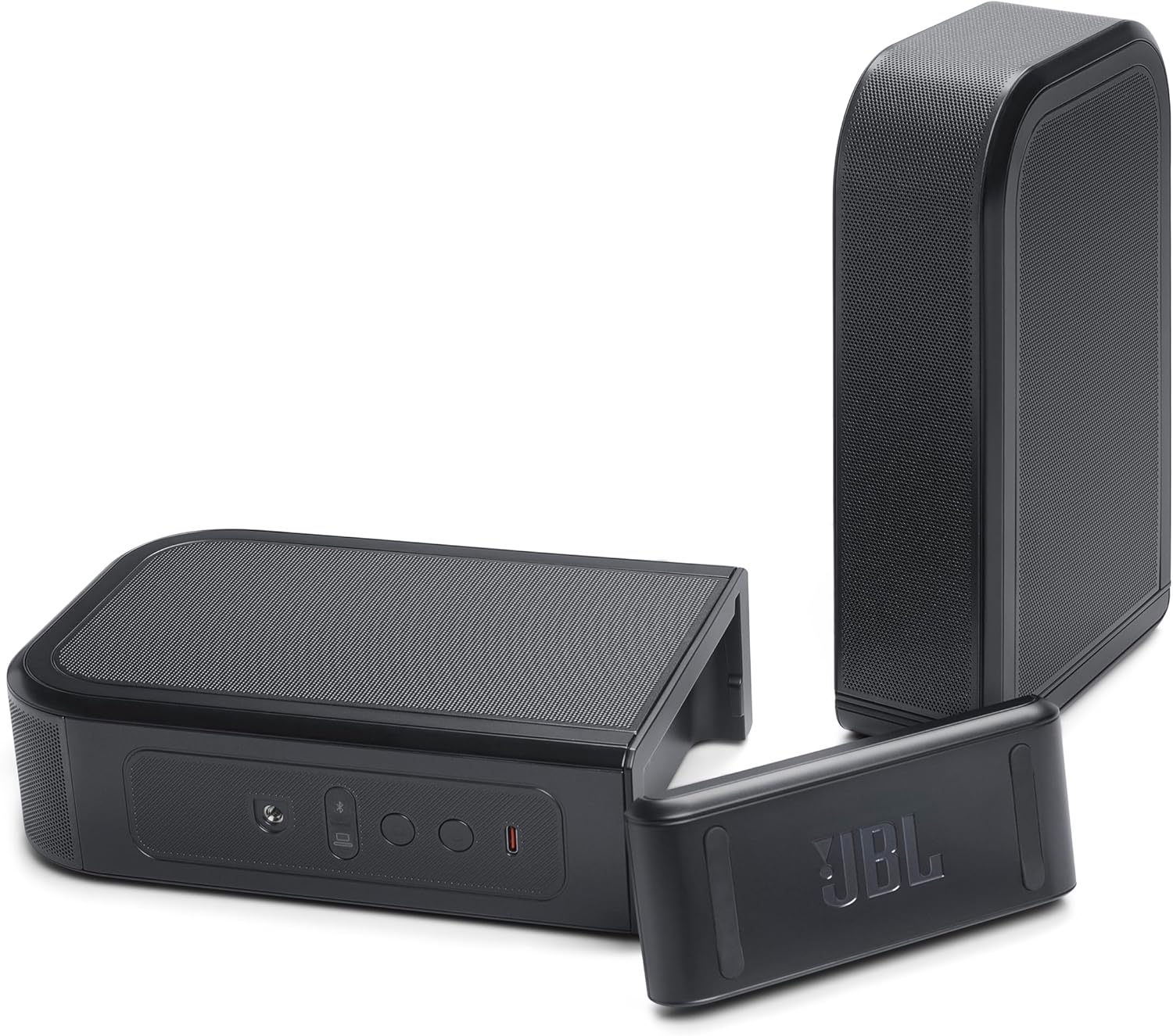

1. Experience the pinnacle of 3D surround sound with breathtaking height channels. Six up-firing speakers in the soundbar and the wireless rear speakers deliver true Dolby Atmos sound. No extra wires. No power connections. Just lift the detachable surround speakers off the soundbar—you can do it with just one hand—and place them behind where you’re sitting to create a true surround-sound experience. It’s that simple. Whether you’re binge-watching your new favorite show or hosting a movie night, the speakers’ long-lasting batteries mean you’ll enjoy immersive, cinematic surround sound for hours. And when you’re done, just place the speakers back on the bar to recharge overnight.
2. SmartDetails: Hear all the subtleties in a film’s sound mix, just like you would in the theater. From a creaking door to a faraway shout, experience every detail the way the filmmakers intended in a clear, balanced sound field, thanks to JBL’s own advanced sound enhancement technology.SmartDetails Hear all the subtleties in a film’s sound mix, just like you would in the theater. From a creaking door to a faraway shout, experience every detail the way the filmmakers intended in a clear, balanced sound field, thanks to JBL’s own advanced sound enhancement technology.
3. True Dolby Atmos and DTS:X: Plunge into theater-quality 3D spatial sound with true Dolby Atmos and DTS:X. Shiver as spaceships fill the sky overhead. Feel explosions that rumble through your body. Experience music like you're right there in the recording studio.
4. Night listening: Enjoy your favorite shows or movies without disturbing others. Just put the wireless detachable speakers in front of you and use the JBL ONE app to turn on night listening. The soundbar and the subwoofer are automatically muted, while the speakers deliver an intimate high-quality audio experience just for one. Or two.
5. MultiBeam 3.0: Wherever you're sitting, you'll be in the middle of the action. Our MultiBeam 3.0 delivers a wide, cinema-like soundstage that makes every high-speed chase or epic fight scene come alive. The sound beams perfectly fill your room, delivering truly immersive, lifelike, and realistic sound reproduction.
6. PureVoice 2.0: Never miss a softly spoken line or a whispered plot twist. JBL's own PureVoice 2.0 automatically raises or optimizes the dialogue, based on both ambient sound in the scene and your soundbar's volume. So you'll always hear every word, clearly and consistently, in cinema-quality sound.
7. Broadcasting: You don't want to miss any of the big game, even when you're in the kitchen making another batch of hot wings. Just bring one—or both, for stereo sound—of the detachable wireless speakers with you and you'll hear the same great movie-quality audio your family and guests are enjoying in the other room.
8. Works with all ecosystems and music streaming services: Enjoy all your favorite music and podcasts in stunning high-definition sound. Choose from hundreds of online music streaming services through AirPlay, Google Cast, Spotify Connect, Tidal Connect, and Roon Ready.
9. JBL ONE App: Set up the soundbar using the JBL ONE app, then make it yours. Customize the sound your way with a precise equalizer, browse your favorite music apps, and get software upgrades for all the latest features, right from your couch.

Specs

General Specifications

1. Model:
2. BAR 1300MK2 (soundbar unit)
3. BAR 1300MK2 SURROUND (detachable surround speakers)
4. BAR 1300MK2 SUB (subwoofer unit)
5. Sound System: 11.1.4-channel
6. Power Supply: 100–240V AC, 50/60Hz
7. Total Speaker Power Output (Max @ THD 1%): 2470 W
8. Soundbar Output Power (Max @ THD 1%): 950 W
9. Surround Speaker Output Power (Max @ THD 1%): 2 × 160 W
10. Subwoofer Output Power (Max @ THD 1%): 1200 W

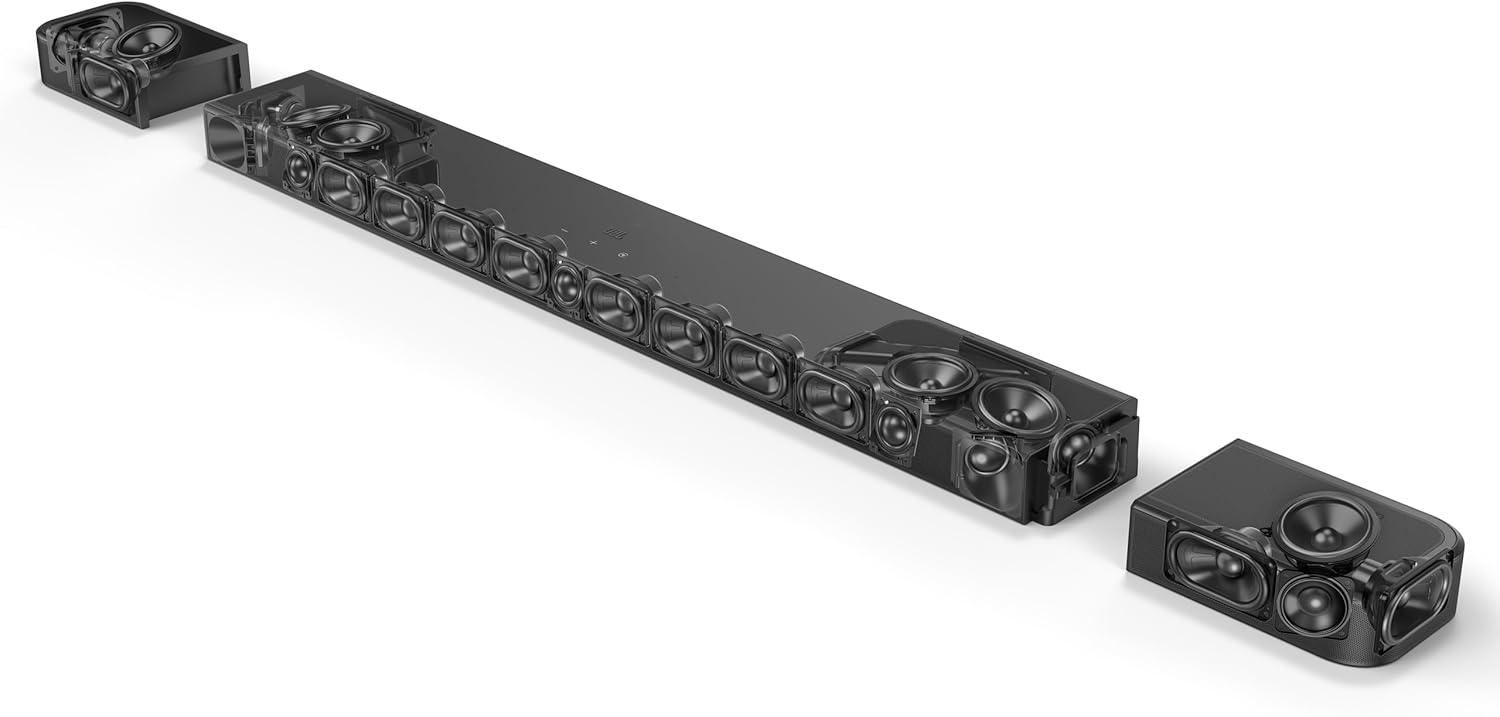

11. Soundbar Transducers:
12. 8 × (50 × 75 mm) racetrack drivers
13. 7 × 1" (25 mm) tweeters
14. 4 × 3" (75 mm) up-firing full-range drivers
15. Surround Speaker Transducers:
16. 2 × (50 × 90 mm) racetrack drivers
17. 1 × 2" (50 mm) full-range driver
18. 1 × 3" (75 mm) up-firing full-range driver
19. Subwoofer Transducers: 2 × 8" (200 mm)
20. Networked Standby Power: < 2 W
21. Operating Temperature: 0°C – 45°C
22. Lithium Battery (Detachable Speakers): 7.2 V, 4722 mAh
23. Detachable Surround Speaker Playtime: Up to 10 hours (varies by content and volume)

Audio Specifications

1. Frequency Response: 33 Hz – 20 kHz (-6 dB)
2. Audio Inputs: Optical, Bluetooth, USB
3. USB playback available in US version
4. USB used for service only in other regions

Dimensions and Weight

1. Total Soundbar Dimensions (W × H × D):
2. 1404 × 58 × 136 mm
3. 55.3" × 2.3" × 5.4"
4. Main Soundbar Dimensions (W × H × D):
5. 1030 × 58 × 136 mm
6. 40.6" × 2.3" × 5.4"
7. Detachable Surround Speaker Dimensions (Each, W × H × D):
8. 202 × 58 × 136 mm
9. 8" × 2.3" × 5.4"
10. Subwoofer Dimensions (W × H × D):
11. 315 × 277 × 275 mm
12. 12.4" × 10.9" × 10.8"
13. Soundbar Weight: 5.93 kg / 13 lbs
14. Detachable Surround Speaker Weight (Each): 1.3 kg / 2.8 lbs
15. Subwoofer Weight: 12 kg / 26.5 lbs
16. Packaging Dimensions (W × H × D):
17. 1124 × 381 × 452 mm
18. 44.3" × 15" × 17.8"
19. Packaging Weight:
20. 28.6 kg / 63.1 lbs (EMEA / UK)
21. 24.3 kg / 53.6 lbs (JP / IN / CN)
22. 28.8 kg / 63.5 lbs (AU / NZ)
23. 24.5 kg / 54.0 lbs (APAC Others)

Control and Connection Specifications

1. USB Port: Type-A
2. USB Rating: 5V DC, 0.5A
3. Supported File Formats: MP3
4. MP3 Codec Support: MPEG-1 Layer 2/3, MPEG-2 Layer 3, MPEG-2.5 Layer 3
5. MP3 Sampling Rate: 16 – 48 kHz
6. MP3 Bitrate: 80 – 320 kbps

Bluetooth and Wireless Connectivity

1. Bluetooth Version:
2. Main soundbar: v5.3
3. Detachable surround speakers: v5.4
4. Bluetooth Profiles:
5. Main soundbar: A2DP v1.3, AVRCP v1.5
6. Detachable surround speakers: As supported
7. Bluetooth Frequency Range: 2400 – 2483.5 MHz
8. Bluetooth Transmitter Power: < 15 dBm (EIRP)
9. Wi-Fi Network Support: IEEE 802.11 a/b/g/n/ac/ax (2.4 GHz / 5 GHz)
10. 2.4 GHz Wi-Fi Frequency Range: 2412 – 2472 MHz
11. 2.4 GHz Wi-Fi Transmitter Power: < 20 dBm (EIRP)
12. 5 GHz Wi-Fi Frequency Ranges:
13. 5.15 – 5.35 GHz
14. 5.470 – 5.725 GHz
15. 5.725 – 5.825 GHz
16. 5 GHz Wi-Fi Transmitter Power:
17. 5.15 – 5.25 GHz: < 23 dBm
18. 5.25 – 5.35 GHz and 5.470 – 5.725 GHz: < 20 dBm
19. 5.725 – 5.825 GHz: < 14 dBm (EIRP)
20. Regional Note:
21. Band 5.6 – 5.64 GHz is disabled in Australia and New Zealand

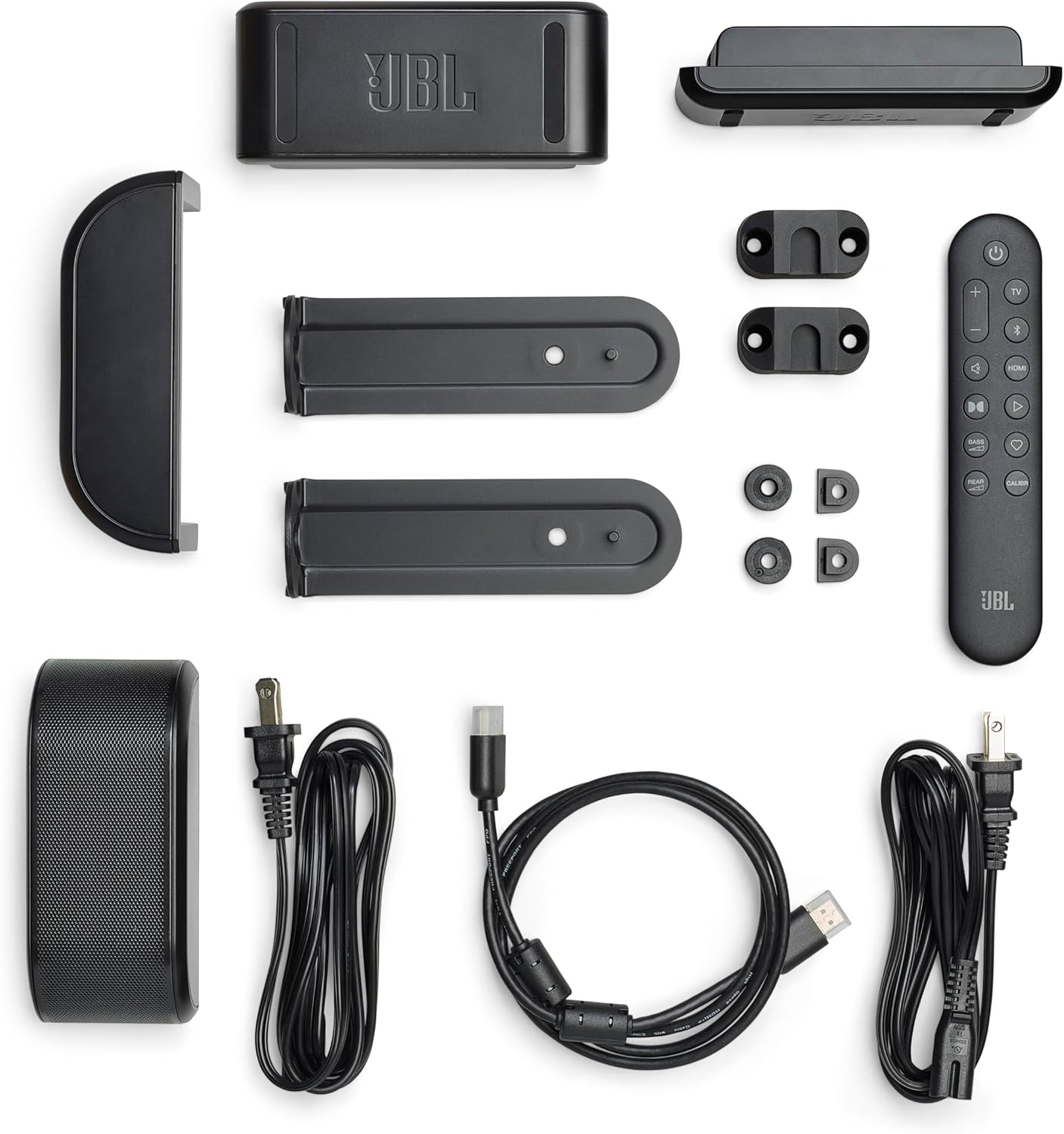

What’s in the Box

1. Main soundbar
2. 2 × Detachable wireless surround speakers
3. Wireless subwoofer
4. Remote control with 2 batteries
5. Power cords (up to 6 pieces, depending on region SKU)
6. HDMI cable
7. Wall-mount brackets:
8. 2 × L-shape brackets (main bar)
9. 2 × U-shape brackets (surround speakers)
10. Screws included
11. 4 × Side caps
12. Wall-mount template
13. Quick start guide
14. Safety instructions and warranty card
