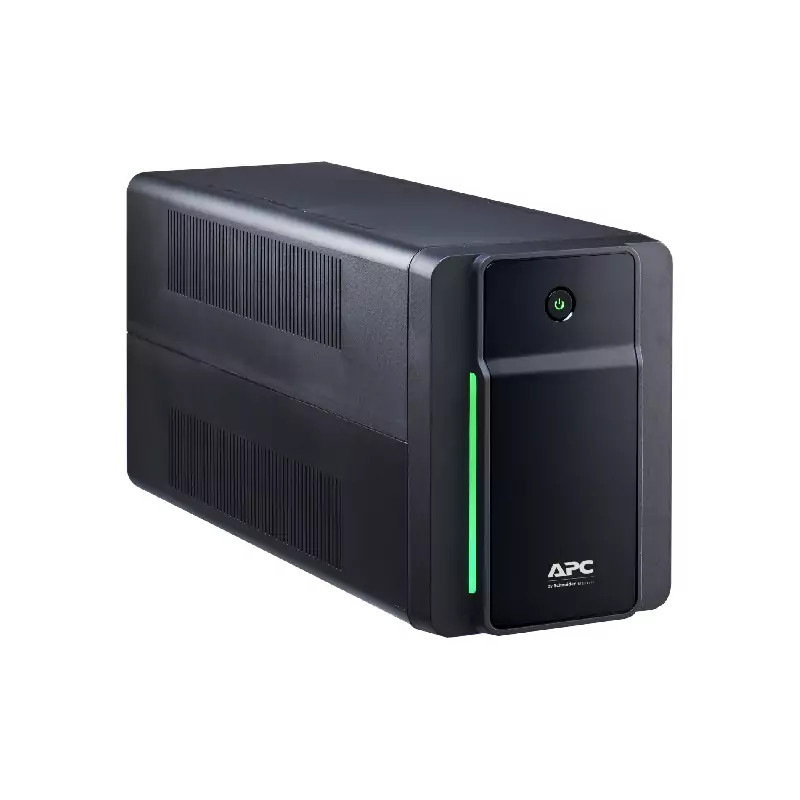

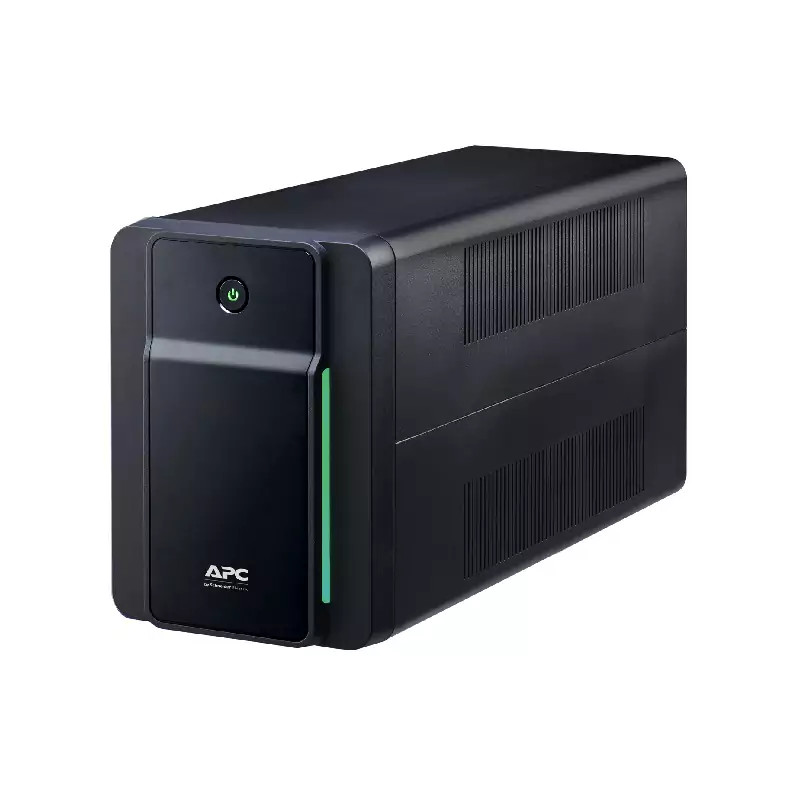

APC Back-UPS 2200VA, 230V, AVR, 4 universal outlets

APC Black Tower UPS BX2200MI-MS 2200VA is designed to provide reliable backup power and voltage protection for home and office electronics during power outages and unstable electricity conditions. With 2200VA power capacity and Automatic Voltage Regulation (AVR), this UPS helps protect desktop computers, routers, CCTV systems, gaming setups, POS machines and networking devices from sudden shutdowns and voltage fluctuations.

The APC BX2200MI-MS features 4 universal outlets with 230V support for convenient device connectivity. Its compact tower design is suitable for homes, offices and small business environments where stable backup power is important for protecting electronic equipment and maintaining productivity.

Specifications:

1. Brand: APC
2. Model: BX2200MI-MS
3. Type: Tower UPS
4. Series: Black UPS
5. Run time for load: 1200 W
6. Min-max: 120-1200 W
7. Runtime: 1min 22s
8. Max. Capacity Used: 100 %
9. Main input voltage: 230 V AC 1 phase
10. Cos phi: 0.54
11. Efficiency at full load: 140...300 V
12. Input frequency: 50/60 Hz +/- 5 Hz auto-sensing
13. Output voltage: 230 V AC 1 phase
14. Rated power in W: 1200 W
15. Rated power in VA: 2200 VA
16. Output connection: 4 universal
17. USB charging port: None
18. Maximum configurable power in VA: 2200 VA
19. Maximum configurable power in W: 1200 W
20. Transfer time: 6 ms typical : 10 ms maximum
21. UPS topology: Line interactive
22. Waveform type: Stepped approximation to a sinewave
23. Full load runtime: 00:01:00 1200 W
24. Half load runtime: 00:08:30 600 W
25. Output frequency: 50/60 Hz +/- 1 Hz sync to mains
26. Run Time: View Runtime Graph
27. Efficiency: View Efficiency Graph
28. Battery type: Lead-acid internal included
29. Control panel: LED Status display with on line : on battery
30. UPS connectivity: None
31. Surge energy rating: 273 J
32. Cable length: 1.2 m
33. Number of cables: 1
34. Color: Black
35. Height: 190 mm
36. Width: 140 mm
37. Depth: 390 mm
38. Product weight: 12.3 kg
39. Mounting preference: No preference
40. Mounting mode: Not rack-mountable
41. Two post mountable: 0
42. USB compatible: Yes
43. Mounting mode: Tower
44. Number of power module filled slots: 0
45. Number of power module free slots: 0
46. Redundant: No
47. Range of product: Back-UPS
48. Product or component type: Uninterruptible power supply (UPS)
49. Product certification: CE
50. Standard: EN/IEC 62040-1:2019/A11:2021
51. Standard: EN/IEC 62040-2:2006/AC:2006
52. Standard: EN/IEC 62040-2:2018
53. Ambient air temperature for operation: 0…40 °C
54. Ambient air temperature for storage: -15…40 °C
55. Storage altitude: 0…3000 m
56. IP protection: IP20
57. Relative humidity: 0…95 % non-condensing
58. Storage relative humidity: 0…95 % non-condensing
59. Acoustic level: 40 dBA
60. Operating altitude: 0...3000 m
61. Battery type: Lead-acid battery
62. Battery voltage: 24 V
63. Battery graph comment: Curve fit to measured runtime data. All measurements taken with new, fully charged batteries, at typical environmental conditions, with no electrical input and balanced resistive load (PF = 1.0) output.
64. Extendable runtime: 0
65. Included battery module: 0
66. Empty battery slot: 0
67. Typical recharge time: 8 h
68. Battery life: 3…5 year(s)
69. Unit Type of Package 1: PCE
70. Number of Units in Package 1: 1
71. Package 1 Height: 29.7 cm
72. Package 1 Width: 49.5 cm
73. Package 1 Length: 23.5 cm
74. Package 1 Weight: 13.3 kg
