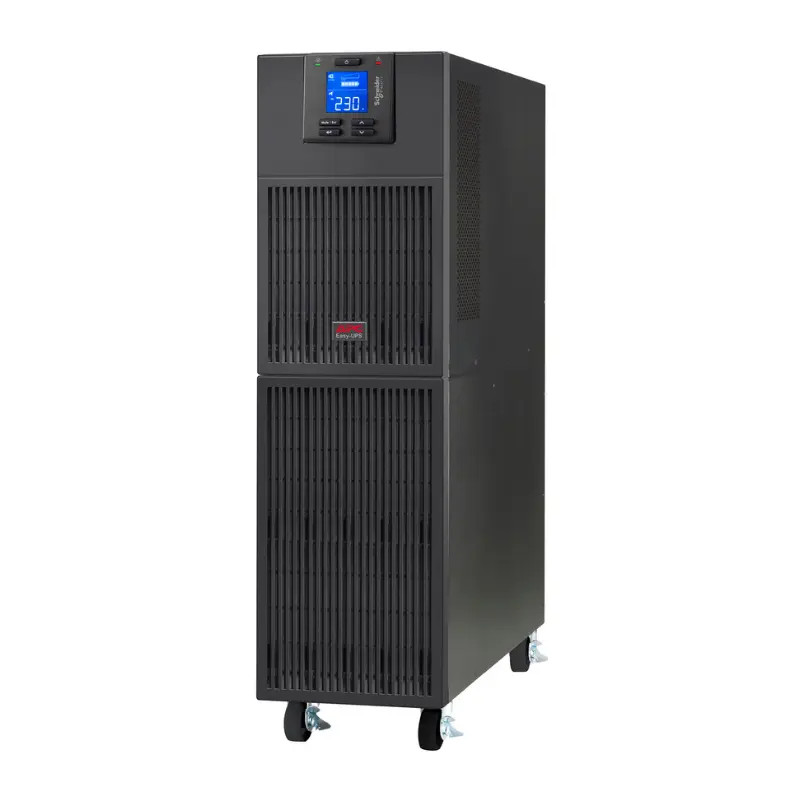

APC Easy UPS On-Line, 10kVA/10kW, Tower, 230V, Hard wire 3-wire(1P+N+E) outlet, Intelligent Card Slot, LCD SRV10KI

The APC Easy UPS On-Line 10kVA is a high-quality, single-phase, double-conversion UPS designed to deliver reliable power protection in unstable electrical environments. It provides pure sine wave output and continuous power conditioning, making it suitable for IT infrastructure, network equipment, and other critical electronics where uptime and power quality are essential.

This tower UPS is ideal for businesses that require robust protection, wide input voltage tolerance, and high efficiency at full load.

Key Features

1. 10kVA / 10kW double-conversion on-line UPS
2. Pure sine wave output with zero transfer time
3. Wide input voltage range for unstable power conditions
4. High efficiency up to 94% at full load
5. Internal automatic and manual bypass
6. Multifunction LCD display for status and control
7. Emergency Power Off (EPO) support

Electrical Specifications

Input

1. Nominal Input Voltage: 230 V AC, single phase
2. Input Voltage Options: 220 V / 240 V
3. Input Voltage Range:
4. 176–300 V (full load)
5. 110–300 V (60% load)
6. Input Frequency: 40–70 Hz (auto-sensing)
7. Input Connection: Hard wire, 3-wire (Line + Neutral + Earth)

Output

1. Output Power Capacity:
2. 10,000 VA
3. 10,000 W
4. Output Voltage: 220 / 230 / 240 V AC, single phase
5. Output Frequency: 50/60 Hz ±3 Hz (sync to mains)
6. Waveform: Pure sine wave
7. Efficiency: Up to 94% (full load)
8. Harmonic Distortion: 1%
9. Crest Factor: 3:1

Battery & Runtime

1. Battery Type: Internal lead-acid battery
2. Battery Voltage: 192 V
3. Typical Runtime at Full Load (10,000 W): 2 minutes 52 seconds
4. Battery Recharge Time: 5 hours
5. Battery Life Expectancy: 3–5 years
6. User-Replaceable Battery: Yes

Management & Connectivity

1. USB port
2. Serial port
3. Expansion slot available
4. Audible alarms (on battery, low battery, overload)
5. Emergency Power Off (EPO)

Physical Specifications

1. Form Factor: Tower
2. Color: Black (RAL 7010)
3. Height: 685 mm
4. Width: 190 mm
5. Depth: 447 mm
6. Net Weight: 65 kg
7. Mounting Position: Vertical
8. Rack Mountable: No

Environmental Specifications

1. Operating Temperature: 0 to 40 °C
2. Storage Temperature: -15 to 60 °C
3. Operating Humidity: 0–95% (non-condensing)
4. Storage Humidity: 0–95% (non-condensing)
5. Operating Altitude: Up to 3000 m
6. Storage Altitude: Up to 15,000 m
7. IP Rating: IP20
8. Acoustic Noise Level: 58 dB
9. Heat Dissipation: 2,128 BTU/h

Certifications & Standards

1. Certifications: CE, UKCA, EAC, TISI
2. Standards Compliance:
3. EN/IEC 62040-1:2019/A11:2021
4. EN/IEC 62040-2:2006/AC:2006
5. EN/IEC 62040-2:2018
