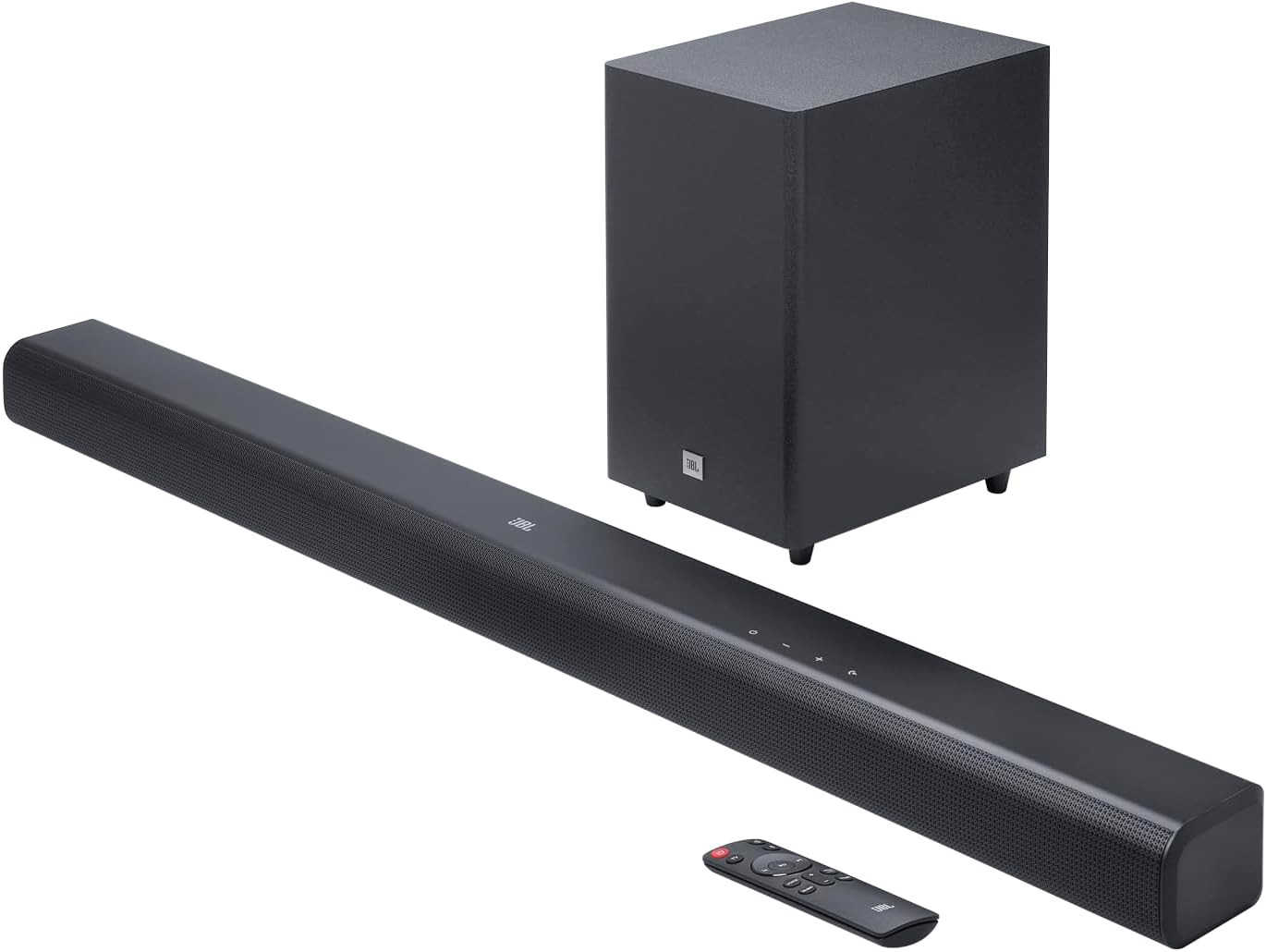

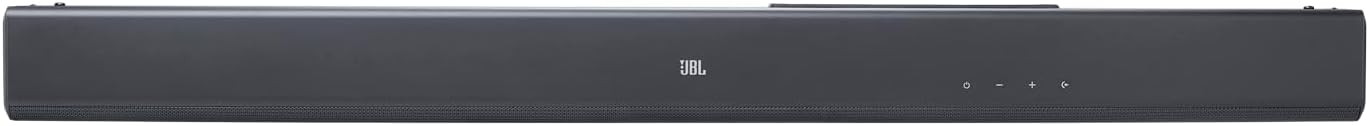

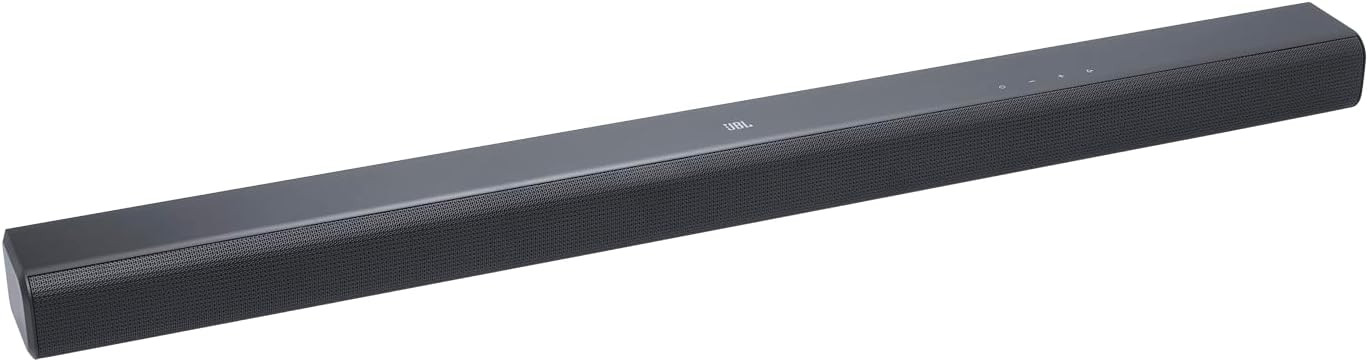

JBL Cinema SB550 – Powerful 3.1-Channel Soundbar with Wireless Subwoofer

Epic Bass. Incredible Sound.

Step up your audio experience with the JBL Cinema SB550, a 3.1 channel soundbar delivering 250 watts of powerful Dolby Audio in a sleek, compact design. The wireless 5.25” subwoofer provides extra deep, impactful bass, making every movie, TV show, and game more exciting.

A dedicated center channel ensures crystal-clear dialogue, so you never miss a word. Setup is simple with your choice of HDMI ARC or optical connection. When the TV is off, Bluetooth streaming lets you enjoy your favorite music and podcasts effortlessly from any compatible device.

General Specifications

1. Model: CINEMA SB550
2. Sound System: 3.1 channel
3. Power Supply: 100 - 240V AC, ~50/60Hz
4. Total Speaker Power Output (Max @ THD 1%): 250W
5. Soundbar Output Power (Max @ THD 1%): 150W
6. Subwoofer Output Power (Max @ THD 1%): 100W
7. Soundbar Transducer: 3× (45 × 100 mm) racetrack drivers + 2× 13 mm tweeters
8. Subwoofer Transducer: 5.25” (133 mm), wireless subwoofer
9. Standby Power: < 0.5 W
10. Operating Temperature: 0°C - 45°C

Audio Specifications

1. Frequency Response: 45 Hz – 20 kHz (-10 dB)
2. Audio Inputs: 1 Optical, Bluetooth, USB (USB playback available in US version only)

Dimensions & Weight

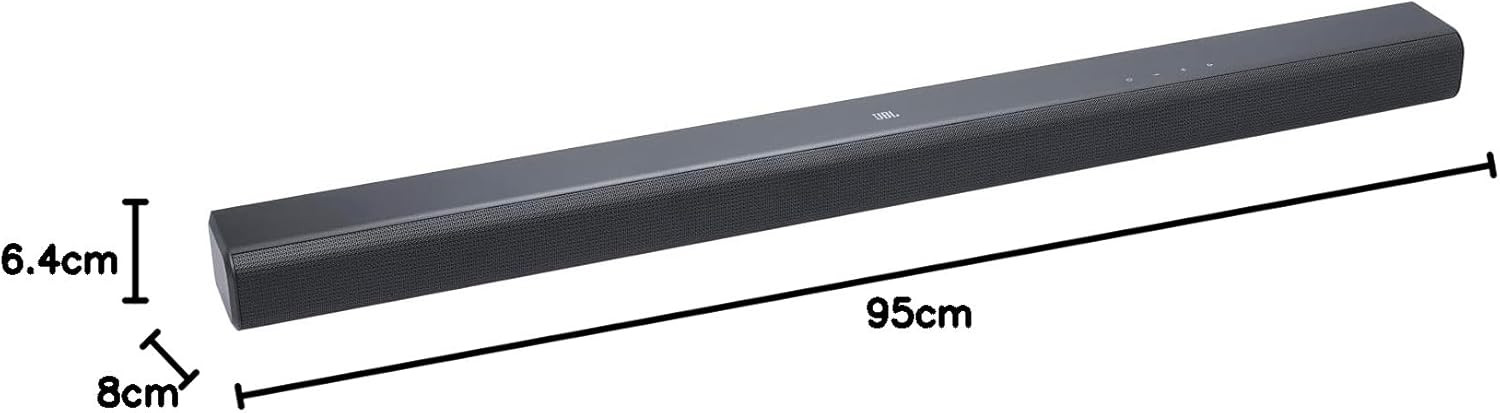

1. Soundbar Dimensions (W × H × D): 950 × 64 × 80 mm (37.4” × 2.5” × 3.1”)
2. Soundbar Weight: 2.5 kg (5.5 lbs)
3. Subwoofer Dimensions (W × H × D): 200 × 324 × 250 mm (7.9” × 12.8” × 9.9”)
4. Subwoofer Weight: 4.2 kg (9.3 lbs)

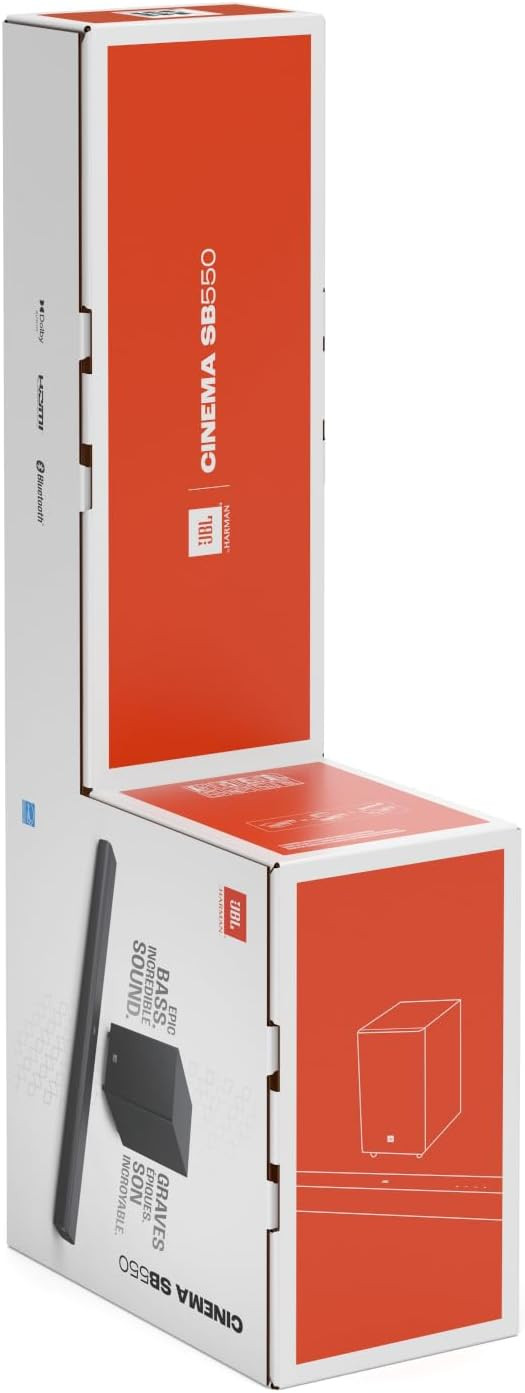

5. Packaging Dimensions (W × H × D): 1025 × 235 × 397 mm (40.4” × 9.3” × 15.6”)
6. Packaging Weight: 8.8 kg (19.4 lbs)

Control & Connection Specifications

1. USB Port: Type A, 5V DC, 0.5A
2. Supported File Formats: MP3
3. MP3 Codec: MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3
4. MP3 Sampling Rate: 16 - 48 kHz
5. Bluetooth Version: 5.3
6. Bluetooth Profiles: A2DP 1.3, AVRCP 1.6
7. Bluetooth Frequency Range: 2400 MHz – 2483.5 MHz
8. Bluetooth Max Transmitting Power: <10 dBm (EIRP)
9. Bluetooth Modulation: GFSK, π/4 DQPSK, 8DPSK
10. 2.4 GHz Wireless Frequency Range: 2402 - 2481 MHz
11. 2.4 GHz Wireless Power: <10 dBm (EIRP)
12. 2.4 GHz Wireless Modulation: GFSK

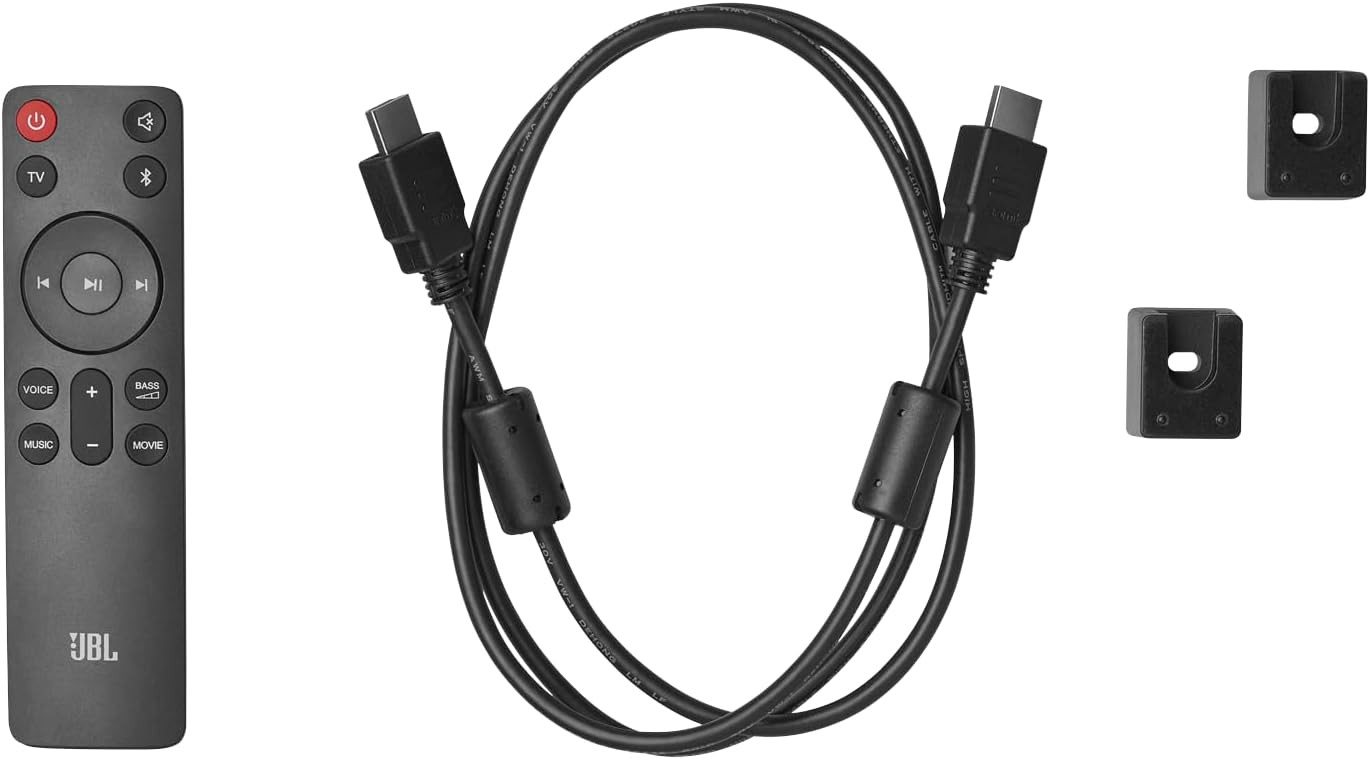

What’s in the Box?

1. Soundbar
2. Wireless subwoofer
3. Remote control with batteries
4. Power cords (up to 8 pcs depending on region)
5. HDMI cable
6. Wall-mount bracket kit with screws
7. Quick start guide
8. Warranty card
9. Safety sheet
