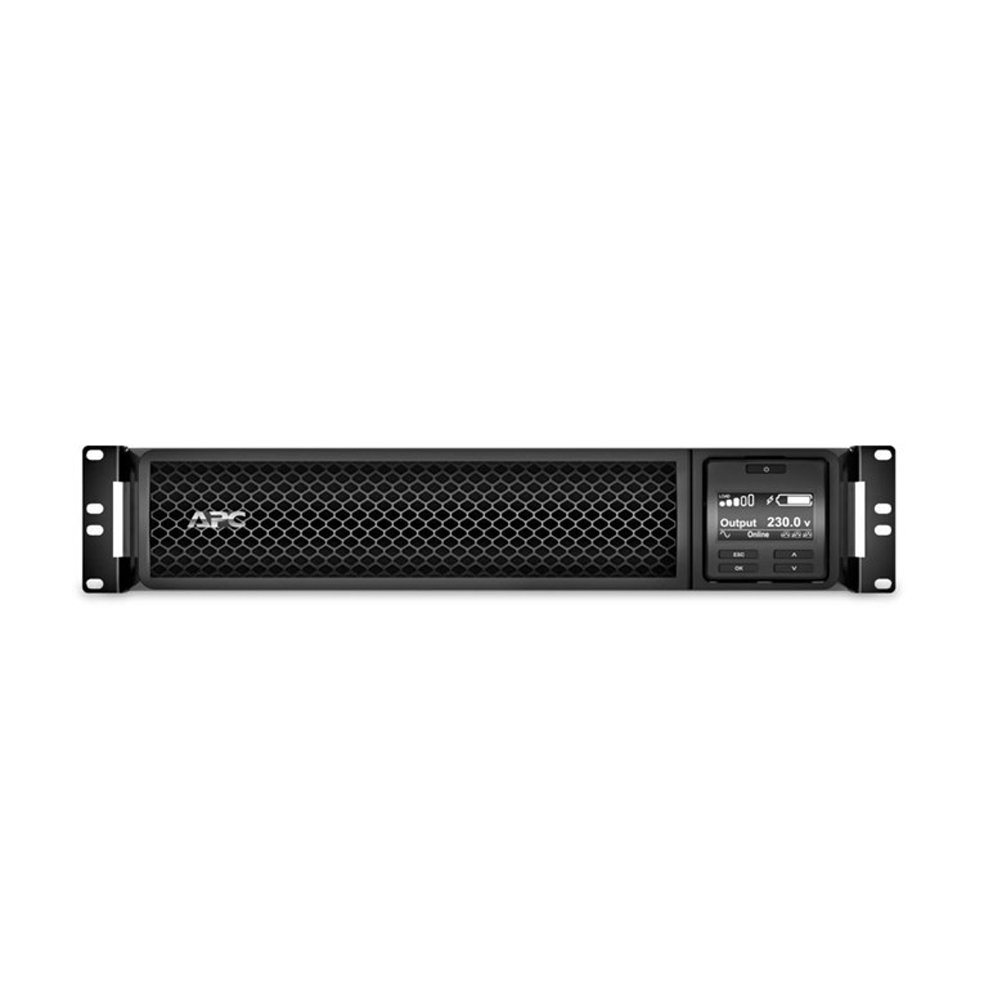

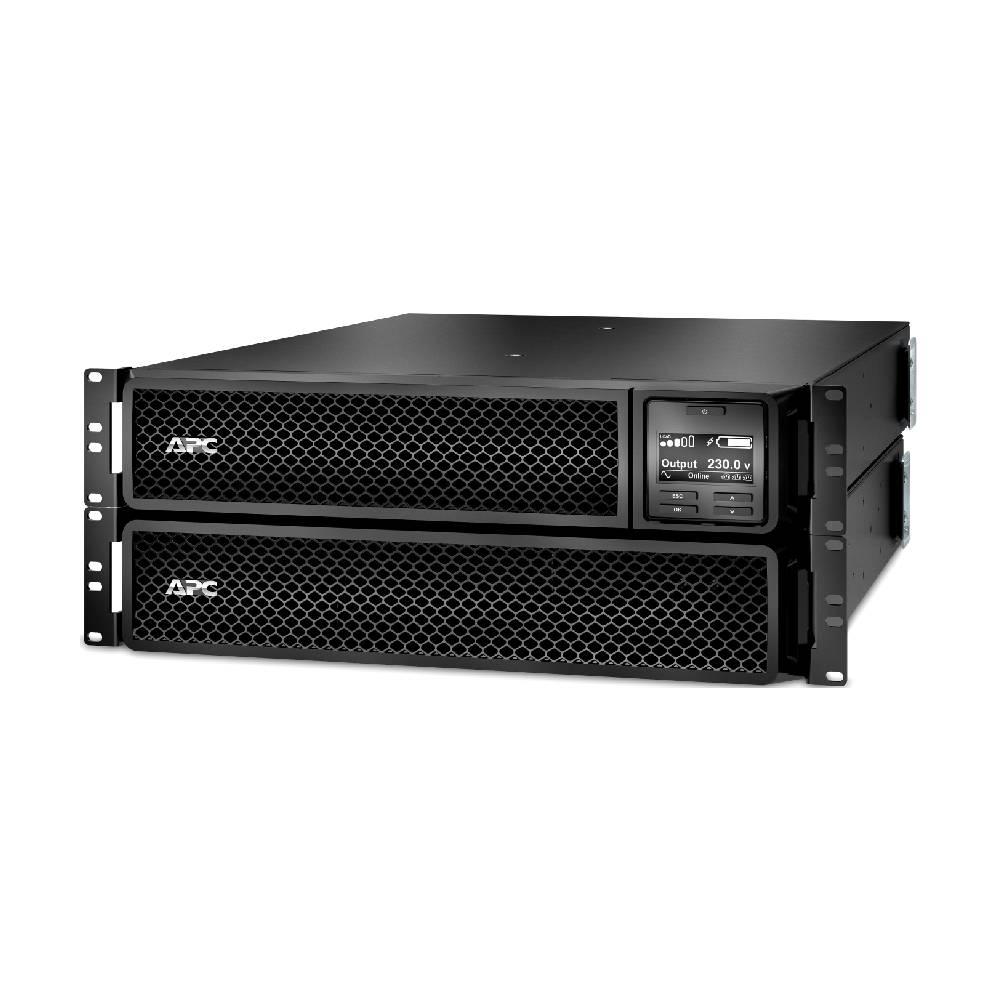

APC Smart-UPS SRT 3000VA RM 230V SRT3000RMXLI

Key Features

1. 3000VA / 2700W double-conversion on-line UPS
2. Pure sine wave output with zero transfer time
3. High-density 2U rackmount design
4. Internal automatic and manual bypass
5. Wide input voltage window with tight output regulation
6. SmartSlot for optional Network Management Card
7. Graceful shutdown via PowerChute Network Shutdown
8. Supports EcoStruxure IT and third-party monitoring platforms

Electrical Specifications

Input

1. Nominal Input Voltage: 230 V AC, single phase
2. Input Voltage Options: 220 V / 240 V
3. Input Voltage Range: 100–275 V (adjustable at half load)
4. Input Frequency: 40–70 Hz (auto-sensing)
5. Input Connection Types:
6. BS1363A British
7. IEC 60320 C20
8. Schuko CEE 7 / EU1-16P

Output

1. Output Power Capacity:
2. 3000 VA
3. 2700 W
4. Output Voltage: 220 / 230 / 240 V AC, single phase
5. Output Frequency: 50/60 Hz ±3 Hz (sync to mains)
6. Waveform: Pure sine wave
7. Harmonic Distortion: Less than 2%
8. Crest Factor: 3:1

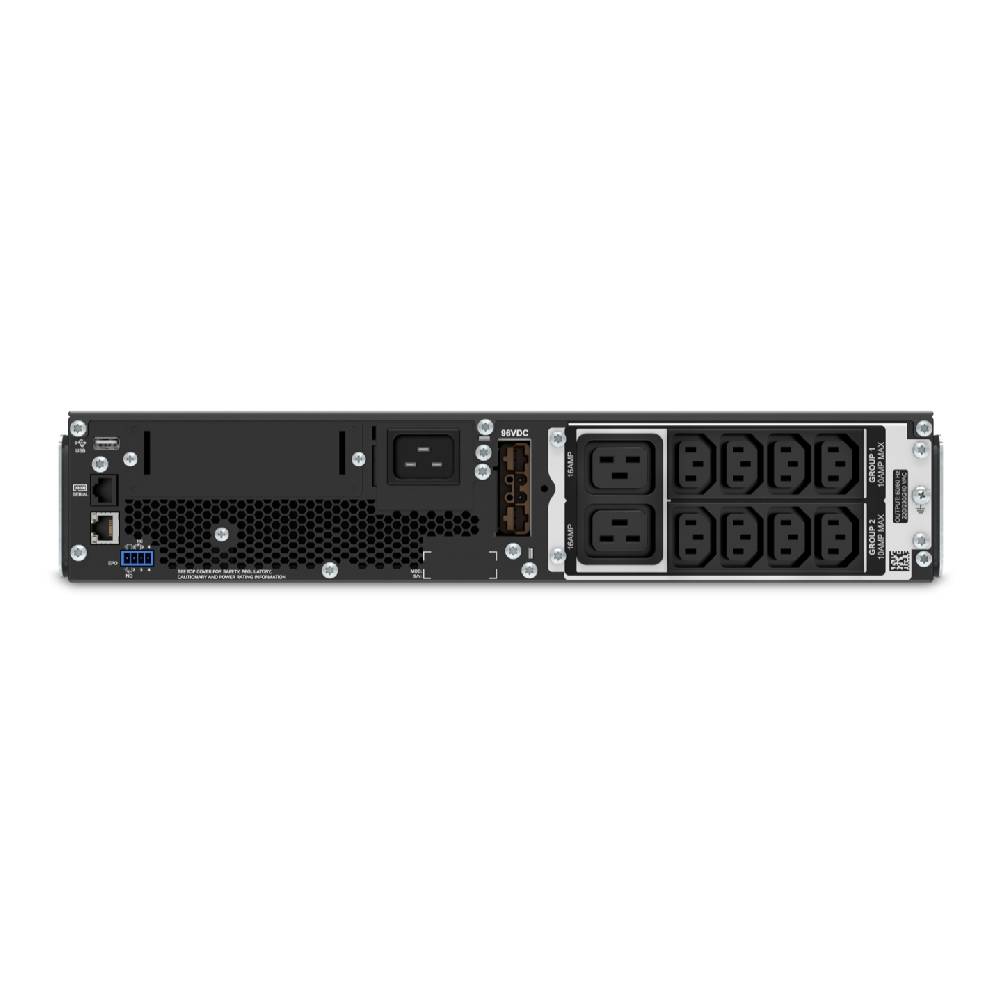

Outlets

1. 8 × IEC 60320 C13
2. 2 × IEC 60320 C19
3. 2 × IEC jumper cables

Battery & Runtime

1. Battery Type: Internal lead-acid battery
2. Battery Voltage: 96 V
3. Typical Runtime at Full Load (2700 W): 3 minutes 58 seconds
4. Battery Recharge Time: 3 hours
5. Battery Life Expectancy: 3–5 years
6. Extended Runtime Support: Yes
7. User-Replaceable Battery: Yes
8. Replacement Battery Cartridge: APCRBC152

Management & Connectivity

1. SmartSlot expansion slot (1)
2. USB port
3. Serial port
4. Audible and visible alarms (prioritized by severity)
5. Optional Network Management Card for remote monitoring

Physical Specifications

1. Form Factor: Rackmount
2. Rack Height: 2U
3. Color: Black
4. Height: 85 mm
5. Width: 432 mm
6. Depth: 635 mm
7. Net Weight: 31.3 kg
8. Mounting Position: Horizontal
9. Rack Kit: Required (sold separately)

Environmental Specifications

1. Operating Temperature: 0 to 40 °C
2. Storage Temperature: -15 to 45 °C
3. Operating Humidity: 0–95% (non-condensing)
4. Storage Humidity: 0–95% (non-condensing)
5. Operating Altitude: Up to 10,000 ft
6. Storage Altitude: Up to 15,240 m
7. IP Rating: IP20
8. Acoustic Noise Level: 55 dBA
9. Heat Dissipation: 703 BTU/h

Certifications & Standards

1. Certifications: CE, EAC, RCM, VDE, UK PSTI
2. Marking: CE Mark
3. Standards Compliance:
4. EN/IEC 62040-1:2019/A11:2021
5. EN/IEC 62040-2:2006/AC:2006
6. EN/IEC 62040-2:2018

Included Accessories

1. Rack mounting brackets
2. Rack mounting support rails
3. USB cable
4. Installation guide
5. Software and documentation CDs
6. Warranty card
