APC Smart-UPS SMT-SmartConnect - SMT2200IC - UPS 2200VA (Cloud Monitoring, 8 IEC-C13 sockets)

APC Smart-UPS SMT2200IC

Line Interactive UPS | 2200VA / 1980W | Tower | 230V

The APC Smart-UPS SMT2200IC is a line-interactive, pure sine wave UPS designed for IT professionals and network administrators who need reliable power protection for critical equipment. It is ideal for servers, storage systems, networking devices, business VoIP, desktops, and retail POS environments. Automatic Voltage Regulation (AVR) helps stabilize incoming power, while cloud-based monitoring enables proactive power management.

Key Features

1. 2200VA / 1980W line-interactive UPS with pure sine wave output
2. Automatic Voltage Regulation (AVR)
3. Cloud-based monitoring via SmartConnect Ethernet port
4. Multifunction LCD status and control panel
5. SmartSlot for optional Network Management Card
6. Graceful shutdown via USB or serial using PowerChute software
7. Surge protection against lightning, sags, brownouts, and surges
8. Compatible with EcoStruxure IT and third-party management platforms

Electrical Specifications

Input

1. Input Voltage: 220–240 V AC, single phase
2. Nominal Input Voltage: 230 V
3. Input Voltage Range:
4. Adjustable: 151–302 V
5. Default: 160–286 V
6. Input Frequency: 50/60 Hz ±3 Hz (auto-sensing)
7. Input Connection Type:
8. IEC 320 C20
9. Schuko CEE 7 / EU1-16P
10. BS1363A British

Output

1. Output Power Capacity:
2. 2200 VA
3. 1980 W
4. Output Voltage: 220 / 230 / 240 V AC, single phase
5. Output Frequency: 50/60 Hz ±3 Hz (sync to mains)
6. Waveform: Pure sine wave
7. Transfer Time:
8. Typical: 6 ms
9. Maximum: 10 ms
10. Harmonic Distortion: Less than 5%

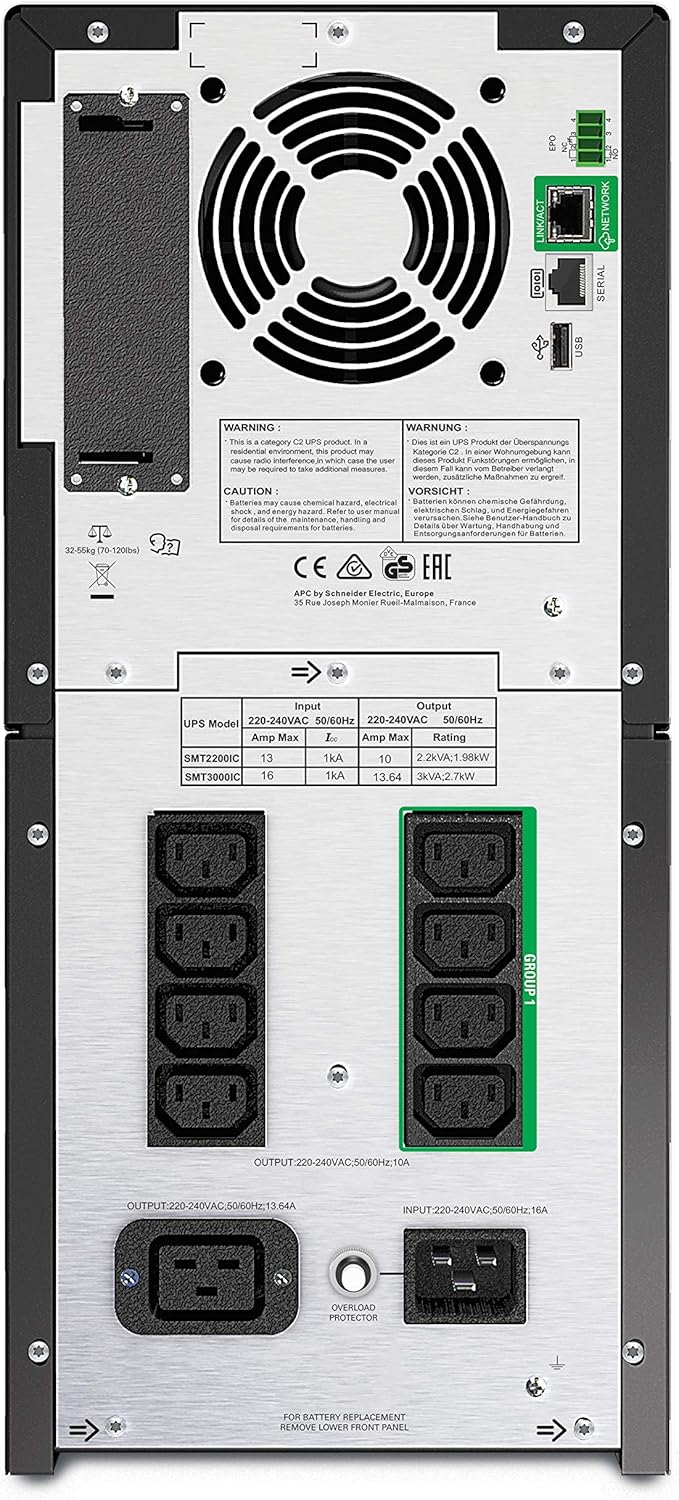

Outlets

1. 8 × IEC 320 C13
2. 1 × IEC 320 C19
3. 2 × IEC jumper cables included

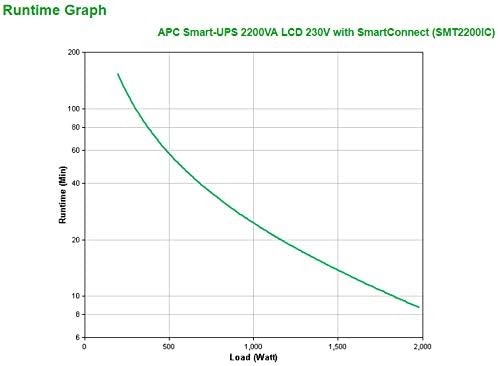

Battery & Runtime

1. Battery Type: Internal lead-acid battery
2. Typical Runtime at Full Load (1980 W): 8 minutes 42 seconds
3. Battery Recharge Time: 3 hours
4. Battery Life Expectancy: 3–5 years
5. User-Replaceable Battery: Yes
6. Replacement Battery Cartridge: RBC55
7. Battery Warranty: 24 months

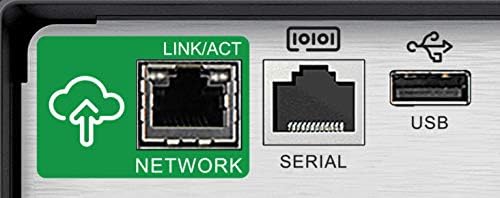

Management & Connectivity

1. USB port
2. Serial port
3. SmartConnect Ethernet port
4. SmartSlot expansion slot (1)
5. Audible alarms (on battery, low battery; configurable)

Physical Specifications

1. Form Factor: Tower
2. Color: Black
3. Height: 435 mm
4. Width: 197 mm
5. Depth: 544 mm
6. Net Weight: 50.2 kg
7. Rack Mountable: No
8. Mounting Mode: Tower

Environmental Specifications

1. Operating Temperature: 0 to 40 °C
2. Storage Temperature: -15 to 45 °C
3. Operating Humidity: 0–95%
4. Storage Humidity: 0–95%
5. Operating Altitude: Up to 10,000 ft
6. Storage Altitude: Up to 15,240 m
7. Acoustic Noise Level: 45 dBA
8. Heat Dissipation: 275 BTU/h

Certifications & Standards

1. Certifications: CE, EAC, RCM, VDE, UK PSTI
2. Standards Compliance:
3. EN/IEC 62040-1:2019/A11:2021
4. EN/IEC 62040-2:2006/AC:2006
5. EN/IEC 62040-2:2018

Environmental Data

1. Total Lifecycle Carbon Footprint: 2,650 kg CO₂ eq.
2. Recycled Cardboard Packaging: Yes
3. Energy Efficiency Optimized: Yes
