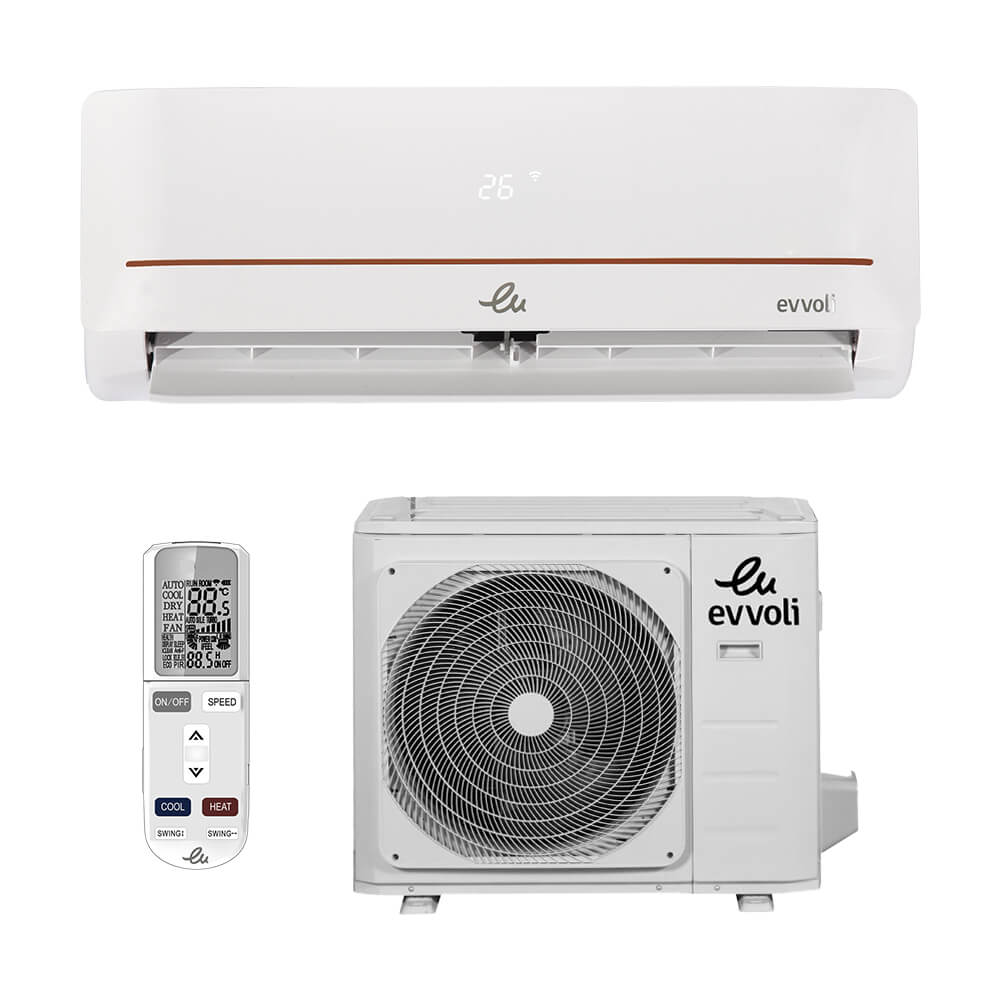

Evvoli 18,000 BTU Split Air Conditioner | Inverter Cooling & Heating | GMCC Rotary Compressor | R410A Refrigerant | Remote Controlled | Indoor & Outdoor Units

Stay comfortable year-round with the Evvoli 18,000 BTU split-type air conditioner. This energy-efficient model delivers fast cooling and heating with a GMCC rotary compressor, R410A refrigerant, and optimized airflow—ideal for spaces up to 35 m².

Product Highlights

1. Powerful Cooling & Heating – 18,000 BTU cooling and 18,500 BTU heating capacity
2. Energy-Efficient – EER of 3.21 and COP of 3.61 to help reduce power bills
3. High-Performance Compressor – GMCC rotary compressor with robust design
4. Optimized Airflow – Up to 787 m³/h airflow with quiet operation (as low as 30 dB)
5. Hydrophilic Aluminium Fins – Corrosion-resistant and efficient heat exchange
6. User-Friendly Remote – Comes with thermostat remote for easy operation
7. Durable Build – Copper inner-groove tubing and 2-row indoor/outdoor coils

Technical Specifications

Cooling Performance:

1. Capacity: 18,000 BTU/h
2. Power Input: 1643 W
3. Rated Current: 7.1 A
4. EER: 3.21 W/W

Heating Performance:

1. Capacity: 18,500 BTU/h
2. Power Input: 1502 W
3. Rated Current: 6.5 A
4. COP: 3.61 W/W

Electrical & Power:

1. Max Input Power: 2400 W
2. Max Current: 12.0 A
3. Starting Current: 38 A
4. Power Supply: 220–240V, 1Ph, 50Hz

Compressor:

1. Model: PA215M2AS-7KTL6
2. Type: Rotary
3. Brand: GMCC
4. Capacity: 21,325 BTU/h
5. Input: 1530 W
6. Rated Current: 6.90 A
7. Locked Rotor Amps: 38 A
8. Oil Type/Charge: ESTEL OIL VG74 / 620 ml
9. Thermal Protector: Internal

Refrigerant System:

1. Type: R410A (Charge: 1200 g)
2. Design Pressure: 4.2 / 1.5 MPa
3. Refrigerant Piping: Liquid Φ6.35 mm (1/4″), Gas Φ12.7 mm (1/2″)
4. Max Pipe Length: 25 m
5. Max Height Difference: 10 m

Thermostat Type: Remote Control

Operating Temp Range: 17°C – 30°C

Recommended Room Area: 24 – 35 m²

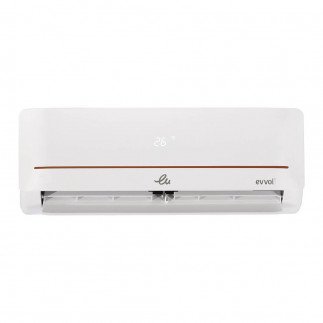

Indoor Unit Details

1. Fan Motor: YKFG-28-4-3 | Input: 58 W
2. Airflow (Hi/Mi/Lo): 787 / 631 / 509 m³/h
3. Noise Level (Hi/Mi/Lo): 42.5 / 36 / 30 dB(A)
4. Coil: 2 Rows, Hydrophilic Aluminium, Φ7 mm Inner-Groove Tubes
5. Dimensions: 965 × 215 × 319 mm
6. Net Weight: 11.6 kg

Outdoor Unit Details

1. Fan Motor: YKT-48-6-206 | Input: 91 W
2. Coil: 2 Rows, Hydrophilic Aluminium, Φ7 mm Inner-Groove Tubes
3. Noise Level: 59 dB(A)
4. Dimensions: 770 × 300 × 555 mm
5. Net Weight: 36.5 kg

Ideal For:

✔ Medium to Large Bedrooms

✔ Living Rooms

✔ Offices

✔ Retail Spaces

✔ Guesthouses
