Key Features:
- Cooling Capacity: Versatile operation with outputs of 2.2 kW, 7.1 kW (nominal), and 8.5 kW for peak performance.
- Energy Efficiency: Boasts an EER of 3.25 for effective cooling with minimized energy consumption.
- Quiet Operation: Indoor unit operates at sound levels as low as 32 dB(A), ensuring a peaceful environment.

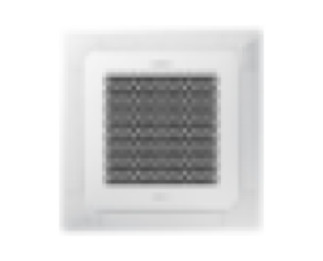

Indoor Unit Highlights:
- Model: AC071TN4DKC/EA
- Turbo Fan: Capable of delivering airflow up to 20.8 CMM, ensuring rapid and even cooling.
- Compact Design: Space-saving dimensions of 840 x 204 x 840 mm, suitable for various ceiling installations.
- Built-in Drain Pump: Lifts up to 750 mm, simplifying condensate management.
Outdoor Unit Highlights:
- Model: AC071TXADKC/EA
- Compressor: Twin BLDC Rotary (Model UG8T265FXAEW) with an output of 2.32 kW for superior reliability.
- Durable Build: Rugged outdoor unit with a net weight of 52.5 kg.
- High Airflow: Generates 76 CMM, ensuring effective heat exchange even in extreme conditions.
Installation Flexibility:
- Max Installation Length: Supports piping runs up to 50 m.
- Max Height Difference: Accommodates setups with a height difference of up to 30 m.
- Piping Specifications:
- Liquid Pipe: 6.35 mm (1/4 inch).
- Gas Pipe: 15.88 mm (5/8 inch).
Advanced Refrigerant System:
- Type: R410A for eco-friendly and efficient cooling.
- Control Method: EEV for precise refrigerant flow.
Power Specifications:
- Indoor & Outdoor Unit: Single-phase, 220-240V, 50Hz.
- MCA (Min Circuit Amps): 21.5 A.
- MFA (Max Fuse Amps): 25.0 A.
Dimensions & Weight:
- Indoor Unit:
- Net Dimensions: 840 x 204 x 840 mm; Net Weight: 14.5 kg.
- Panel: 950 x 48 x 950 mm; Panel Weight: 6.3 kg.
- Outdoor Unit:
- Net Dimensions: 880 x 798 x 310 mm; Net Weight: 52.5 kg.
Noise Levels:
- Indoor Unit: Operates between 32–40 dB(A) (Low/High).
- Outdoor Unit: Cooling noise level at 50 dB(A).
Additional Features:
- Built-in Drain Pump: Simplifies drainage with a 750 mm lift height and 24 displacement.
- Oil Type: POE (Initial charge: 700 cc).
This air conditioner offers powerful cooling, easy installation, and energy efficiency, making it an ideal choice for larger spaces requiring consistent performance.
