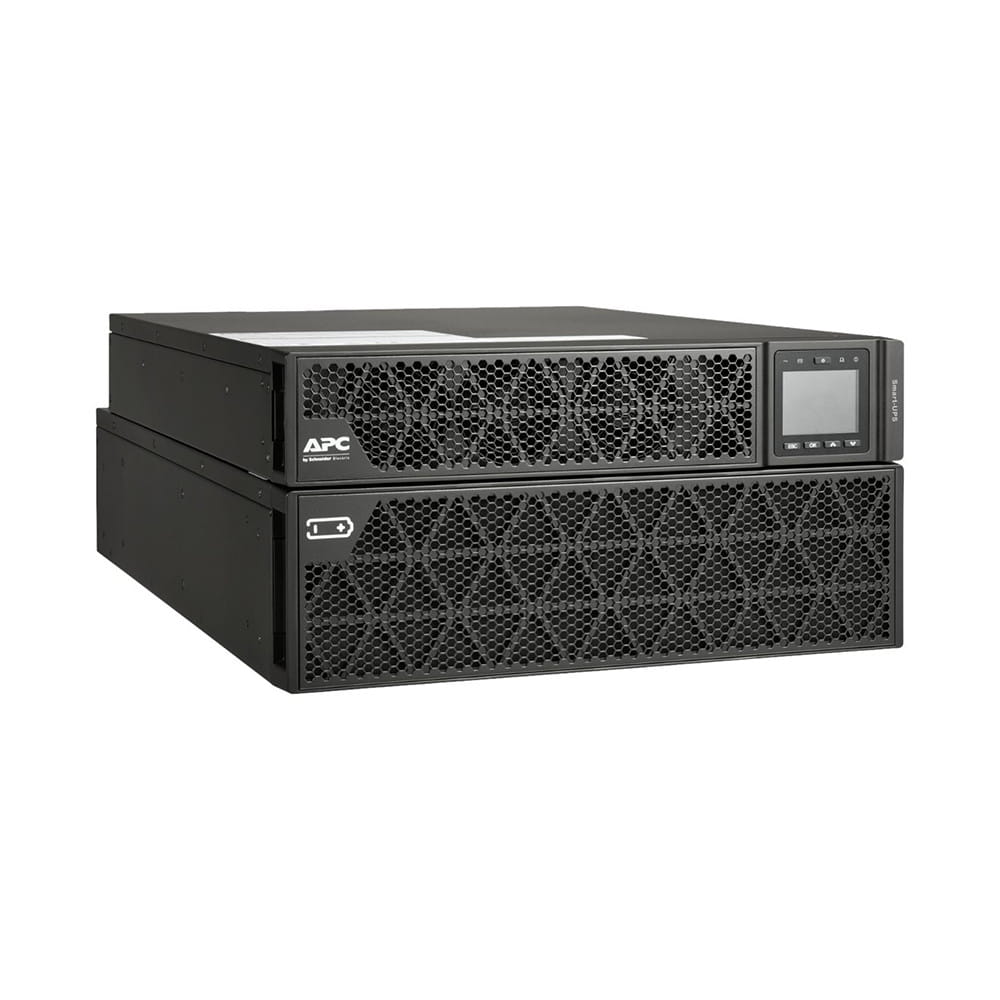

APC Smart-UPS On-Line, 8kVA/8kW, Rack/Tower, 230V, 2x IEC C13+1x IEC C19+Hard wire 3-wire (H+N+E) outlets, Network Card, W/O rail kit SRTG8KXLI

Key Features

1. 8kVA / 8kW double-conversion on-line UPS
2. Pure sine wave output with zero transfer time
3. Rack or tower installation (rail kit sold separately)
4. Internal automatic and manual bypass
5. High efficiency up to 93.5%
6. Preinstalled Network Management Card 3 with environmental monitoring
7. Supports up to 4 external battery packs for extended runtime

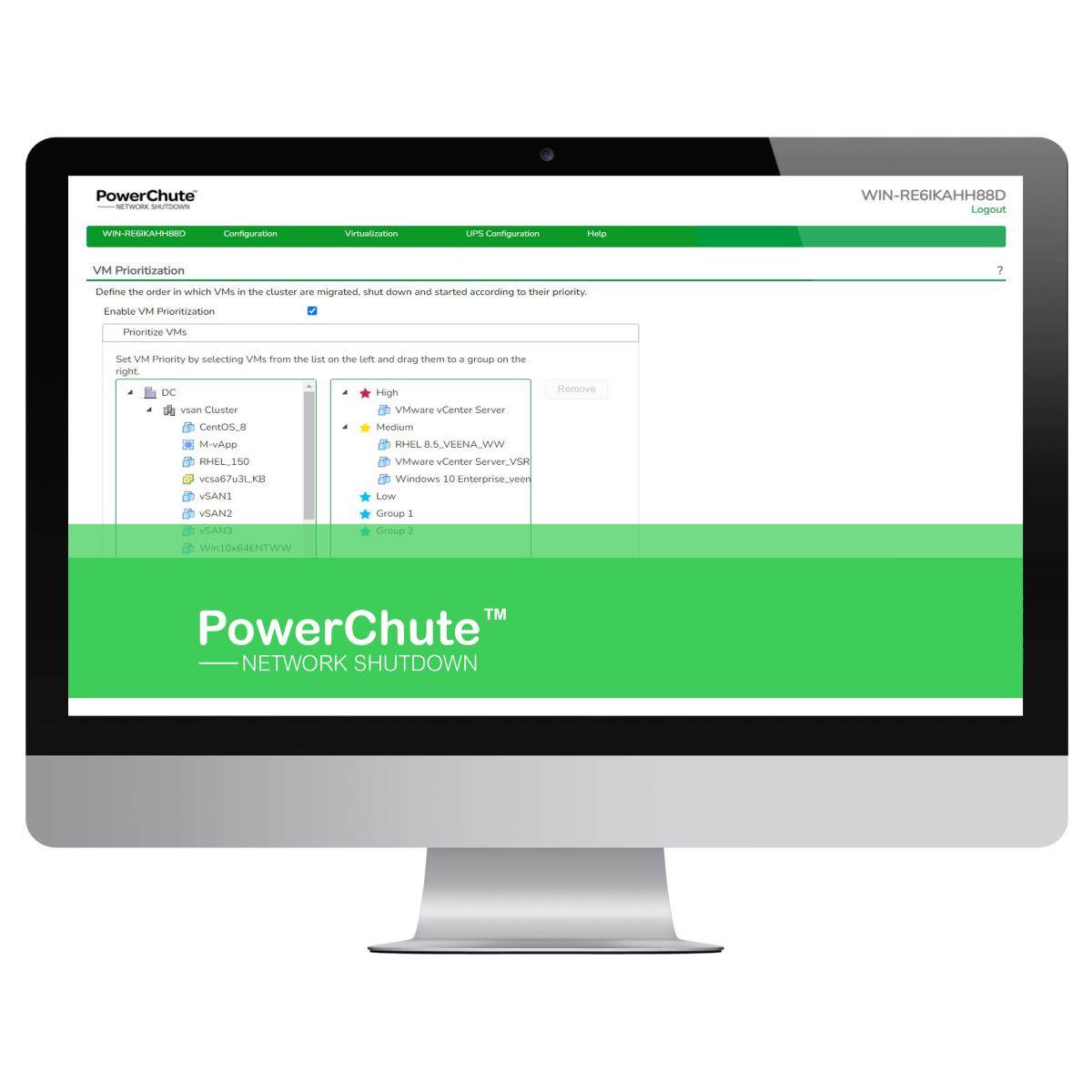

8. Compatible with EcoStruxure IT and PowerChute Network Shutdown

Electrical Specifications

Input

1. Nominal Input Voltage: 230 V AC, single phase
2. Input Voltage Options: 220 V / 240 V
3. Input Voltage Range:
4. 160–285 V (full load)
5. 100–285 V (half load)
6. Input Frequency: 40–70 Hz (auto-sensing)
7. Maximum Input Current: 30 A
8. Switching Current Capacity: 40 A
9. Input Connection: Hard wire, 3-wire (Line + Neutral + Earth)

Output

1. Output Power Capacity:
2. 8000 VA
3. 8000 W
4. Output Voltage: 220 / 230 / 240 V AC, single phase
5. Output Frequency: 50/60 Hz ±4 Hz (sync to mains)
6. Waveform: Pure sine wave
7. Efficiency: Up to 93.5%
8. Harmonic Distortion: Less than 2%
9. Crest Factor: 3:1

Output Connections

1. 2 × IEC 60320 C13
2. 1 × IEC 60320 C19
3. Hard wire 3-wire (Line + Neutral + Earth) output

Battery & Runtime

1. Battery Type: External lead-acid battery system
2. Battery Voltage: ±96 V
3. Typical Runtime at Full Load (8000 W): 4 minutes 55 seconds
4. Battery Recharge Time: 4 hours
5. Battery Life Expectancy: 3–5 years
6. Extended Runtime Support: Yes (up to 4 external battery packs)
7. User-Replaceable Battery: Yes
8. Replacement Battery Cartridge: APCRBC174

Management & Connectivity

1. Preinstalled Network Management Card 3
2. USB port
3. Serial port
4. Emergency Power Off (EPO)
5. Audible alarms (on battery, low battery, overload)

Physical Specifications

1. Form Factor: Rack / Tower convertible
2. Rack Height: 5U
3. Color: Black (RAL 9005)
4. Height: 217 mm
5. Width: 440 mm
6. Depth: 680 mm
7. Net Weight: 101.5 kg
8. Mounting Position: Horizontal
9. Mounting Kit: Included

Environmental Specifications

1. Operating Temperature: 0 to 40 °C
2. Storage Temperature: -15 to 45 °C
3. Operating Humidity: 0–95% (non-condensing)
4. Storage Humidity: 0–95% (non-condensing)
5. Operating Altitude: Up to 3000 m
6. Storage Altitude: Up to 15,000 m
7. IP Rating: IP20
8. Acoustic Noise Level: 55 dBA
9. Heat Dissipation: 1,774 BTU/h

Certifications & Standards

1. Certifications: CE, UKCA, TISI
2. Standards Compliance:
3. EN/IEC 62040-1:2019/A11:2021
4. EN/IEC 62040-2:2006/AC:2006
5. EN/IEC 62040-2:2018

Included Accessories

1. USB cable
2. RJ45 cable
3. Rack mounting brackets (2)
4. Stabilization / wall mounting feet (2)
5. Installation manuals (2)
6. C13–C14 power cord
7. External battery pack
8. Battery cable

Environmental Data

1. Total Lifecycle Carbon Footprint: 31,871 kg CO₂ eq.
2. Recycled Cardboard Packaging: Yes
