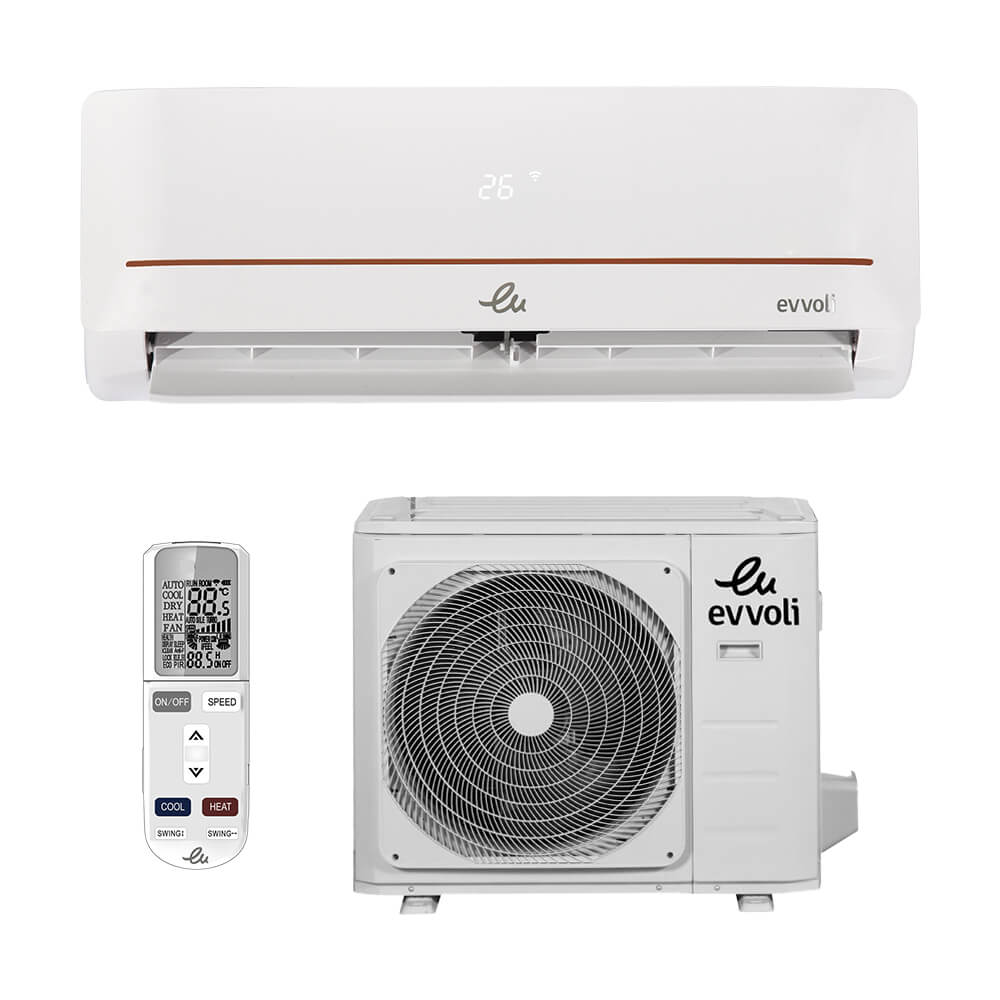

Evvoli 12,000 BTU Split Type Air Conditioner | Inverter Cooling & Heating | GMCC Rotary Compressor | R410A | Remote Controlled | Indoor & Outdoor Units

Enjoy powerful, year-round comfort with the Evvoli 12,000 BTU split-type air conditioner. Designed for efficiency and reliability, it offers both cooling and heating with an energy-efficient rotary compressor and R410A refrigerant. Ideal for rooms up to 23 square meters.

Product Highlights

1. Dual Function – Efficient cooling (12,000 BTU) and heating (13,000 BTU) performance
2. Energy Efficient – EER of 3.21 and COP of 3.61 ensures reduced energy consumption
3. GMCC Rotary Compressor – Proven reliability and consistent cooling
4. Quiet Indoor Operation – As low as 26.5 dB(A) for peaceful comfort
5. Hydrophilic Aluminium Fins – Enhanced heat exchange and corrosion resistance
6. Compact & Stylish Design – Slim indoor unit with quiet fan motor
7. User-Friendly Control – Comes with a remote control thermostat for convenience

Technical Specifications

Cooling Performance:

1. Capacity: 12,000 BTU/h
2. Input Power: 1096 W
3. Rated Current: 4.8 A
4. EER: 3.21 W/W

Heating Performance:

1. Capacity: 13,000 BTU/h
2. Input Power: 1055 W
3. Rated Current: 4.6 A
4. COP: 3.61 W/W

Maximum Ratings:

1. Max Power Input: 1800 W
2. Max Current: 9.0 A
3. Starting Current: 25 A

Compressor:

1. Type: Rotary (Model: ASM140V1VFT)
2. Brand: GMCC
3. Capacity: 13,784 BTU/h
4. Input: 955 W
5. Rated Current: 4.40 A
6. Locked Rotor Amps: 25 A
7. Thermal Protection: External
8. Oil Type: SUNISO 4GSD (350 ml)

Refrigerant System:

1. Refrigerant Type: R410A (950 g)
2. Design Pressure: 4.2 / 1.5 MPa
3. Piping: Liquid Φ6.35 mm (1/4″), Gas Φ12.7 mm (1/2″)
4. Max Pipe Length: 20 m
5. Max Height Difference: 8 m

Power Supply:

1. Voltage: 220–240 V
2. Frequency: 50 Hz
3. Phase: 1

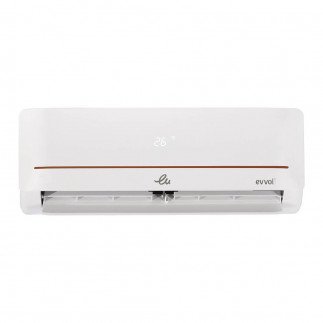

Indoor Unit Specifications

1. Fan Motor: YKFG-13-4-38L | Input: 40 W
2. Airflow (Hi/Mi/Lo): 523 / 464 / 369 m³/h
3. Noise Level (Hi/Mi/Lo): 35.5 / 31 / 26.5 dB(A)
4. Coil: 2 Rows, Φ7 mm Copper Tubes, Hydrophilic Aluminium Fins
5. Dimensions: 802 × 189 × 297 mm
6. Net Weight: 8.8 kg

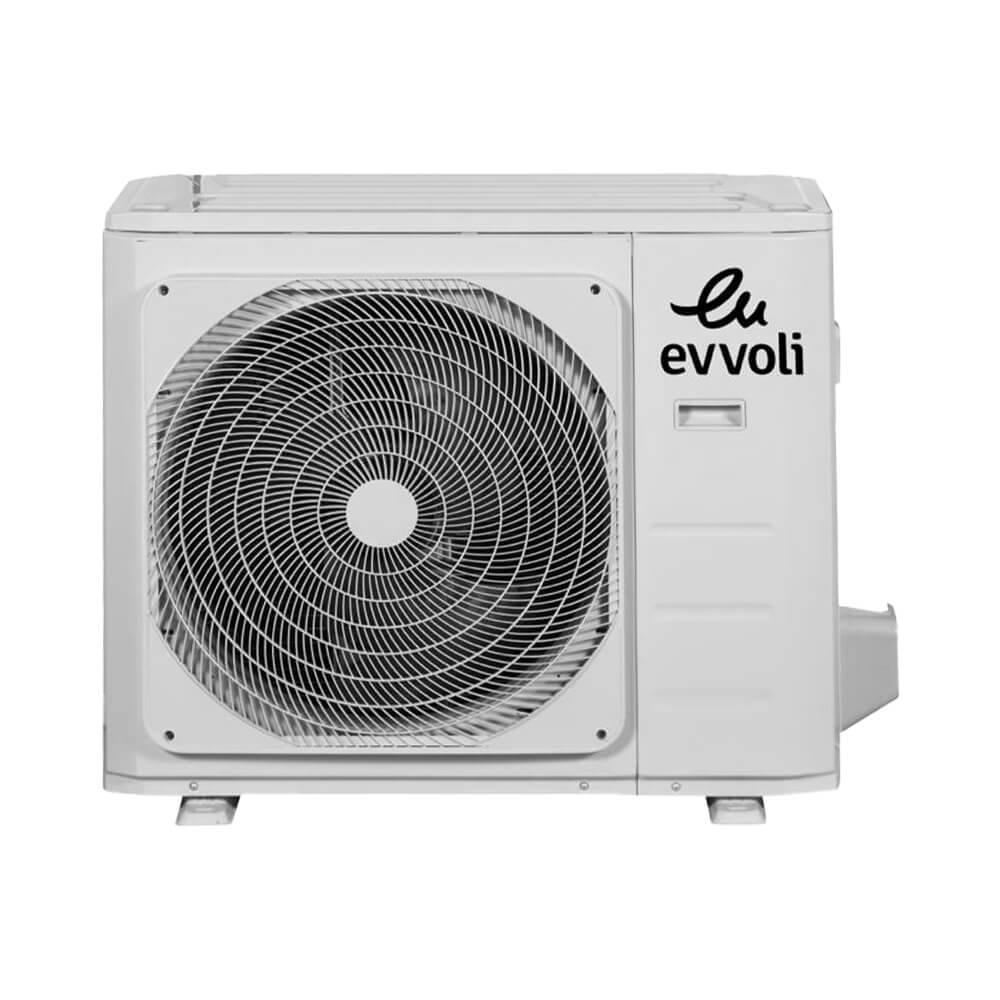

Outdoor Unit Specifications

1. Fan Motor: YKT-32-6-203L | Input: 72.5 W
2. Coil: 1 Row, Φ9 mm Inner-groove Copper Tubes
3. Noise Level: 54 dB(A)
4. Dimensions: 770 × 300 × 555 mm
5. Net Weight: 30.1 kg

Ideal For:

✔ Bedrooms

✔ Small Living Rooms

✔ Office Cabins

✔ Guest Rooms

✔ Studios
