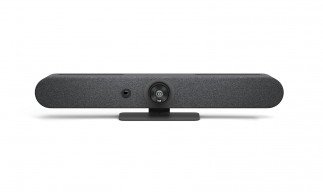

Logitech Rally Bar Mini All-In-One 4K Ultra HD Video Bar (960-001340) Tanzania

Simplicity meets versatility with Rally Bar Mini, Logitech’s most advanced all-in-one video bar for small meeting rooms and huddle spaces. With studioquality audio and video, AIdriven performance, and flexible deployment options, Rally Bar Mini sets a new standard for small room collaboration.

PREMIER VIDEO BAR FOR SMALL TO MEDIUM MEETING ROOMS

Rally Bar Mini is Logitech’s premier all-in-one video bar for small rooms and huddle spaces. It’s remarkably simple to use, manage, and deploy at scale, delivering the capabilities of larger video bars like Logitech Rally Bar in a compact form factor for smaller spaces. With studio-quality audio and video, motorized pan and tilt, and AI-powered performance.

Rally Bar Mini sets new standards for video collaboration. Scalable across hundreds or thousands of rooms, Rally Bar Mini offers clutter-free cable management, multiple mounting options, and flexible deployment modes. Plug and play with virtually any PC or Mac, or run supported video conferencing applications on the device without a computer.

SIMPLE TO SET UP SIMPLE TO USE SIMPLE TO MANAGE

USB Plug and Play

Easily connects to virtually any PC or Mac®, with no additional software required

Appliance Mode

Built-in compute allows you to run supported video conferencing applications such as Zoom directly on the device

All-in-One Design

Sleek, minimal footprint expedites setup and reduces clutter Streamlined, Flexible Installs

RightSense Technologies

RightSight

Speaker View frames the active speaker while displaying a secondary view of the room to show participant interactions. Group View detects meeting participants automatically adjusts the lens and zoom so no one is left out of the picture.

RightLight

Intelligently adjusts video settings in all light conditions so everyone always looks their best

RightSound

AI-driven voice leveling and unwanted noise suppression deliver outstanding clarity

One-Touch Join

Optionally deploy with Tap to quickly and easily initiate meetings across Zoom, Microsoft Teams, and other cloud services

Logitech Sync

Single platform to monitor room health and keep devices up to date, plus insights on room occupancy

Deploy Updates at Scale

Easily propagate upgrades and bug fixes to Rally Bar and your other supported Logitech devices

Forward-Looking Architecture

Sync API is a robust foundation for new insights and integrations

Partner Dashboard Support

Fully integrated with partner solutions like Microsoft Teams, Zoom, and others for a simplified device management experience

DIMENSIONS

Height: 91.4 mm

Width: 719 mm

Depth: 101 mm

Lens Depth: 18.5 mm

Weight: 4.03 kgs

SYSTEM REQUIREMENTS

Internet Connection: Wired or wireless

USB Mode: Windows® 11, Windows 10, the two most recent versions of macOS

Appliance Mode: Room solution software license (not included)

TECHNICAL SPECIFICATIONS

Certifications & Compatibility

Certifications

Microsoft Teams Rooms on Android™ 5For small sized rooms

Microsoft Teams Rooms on Windows 6For small sized rooms

Zoom Room™

Tencent Meeting Rooms

Appliance Mode: Supports compatible video conferencing software in appliance mode (no PC required), including

Microsoft Teams Rooms on Android™

Zoom Room™

GoToRoom®

Pexip Room

RingCentral Rooms™

USB Mode: Plug-and-play USB connectivity with virtually any video conferencing application

For the latest information on certifications and compatibility, visit www.logitech.com/support/vc-certifications.

GENERAL SPECIFICATIONS

Built-in Components: 6 beamforming microphones, PTZ camera, 3 speakers, AI Viewfinder, cable management & retention system, table stand, Logitech CollabOS platform

Enclosure: All-in-one enclosure with integrated table stand and patented speaker suspension system to eliminate vibration-induced camera shake and audio interference

Device Management: Logitech Sync

Displays Supported: 2 (up to 1080p)

Display Resolution: Up to 1080p

Network Protocol Support: IPv4, IPv6

Proxy Support: IP based Proxy, FQDN based Proxy, Proxy using PAC file

Camera

Resolution: 4K, 1440p, 1080p, 900p, 720p, and SD at 30fps

Pan: Motorized ±25°

Tilt: Motorized ±15°

Zoom: 4X HD digital zoom

Diagonal Field of View: 120°

Horizontal Field of View: 113°

Vertical Field of View: 80.7°

Total Room Coverage (field of view + pan and tilt): 163° horizontal x 110° vertical

Woofer Speaker

Driver: 70 mm

Sensitivity: 92 dB SPL @1W, 99dB SPL @8.0W, both +/-2dB at ½ meter

Rated Power: 8W

THD: 1kHz <2% at 1W

Speaker Sampling Rate: 48KHz

Impedance: 4 Ohms

Midrange Speakers

Drivers: 2 x 43 mm

Sensitivity: 84 dB SPL @ 1W/1M

Rated Power: 4W

THD: 1kHz <2% at 1W

Speaker Sampling Rate: 48KHz

Impedance: 4 Ohms

Microphones

Frequency Response: 90Hz – 16kHz

Sensitivity: >-36dBFS +/-1 dB @ 1Pa

Microphone data rate output: 48 kHz

Pickup Range: 7 m

Beamforming Elements: Six omnidirectional digital MEMS microphones forming five adaptive acoustic broadside beams

Audio processing: AEC (Acoustic Echo Cancellation), VAD (Voice Activity Detector)

Noise suppression: AI based de-noising algorithm

Add-on Mics: Supports up to 3 additional Rally Mic Pods and 2 Rally Mic Pod Hubs for larger conference rooms

RightSense™ Technologies

RightLight: Renders natural skin tones for each participant

RightSight: Primary camera frames the active speaker while the AI Viewfinder captures everyone in the room

RightSound: Distinguishes speech from other sounds to auto-level voices while suppressing background noise and echo

Interfaces

HDMI Out: 2 (up to 1080p)

HDMI In: 1

USB: 3x Type A, 1x Type C

Network: 10/100/1G Ethernet

WiFi: 802.11a/b/g/n/ac

External Mic Input: Yes (proprietary input supports optional Rally Mic Pod, Rally Mic Pod Hub, and Rally Mic Pod Extension Cable)

Remote Control: Bluetooth® Low Energy

Power & Cables

Power supply: Auto-sensing

Operating Voltage/Power: 100-240V, 19V, 4.74A

Power Supply Dimensions: 127 mm x 51 mm x 30 mm

DC Cable: 1.5 m

AC Cable: 1 m

HDMI 1.4 Cable: 2 m

USB A to USB C 3.0 Cable: 2.2 m

Environmental

Operating Temperature: 0 to 40°C

Storage Temperature: -40 to 70°C

Humidity: 10 to 95%

BTU/hr: 57 idle, 64 in meeting

Security

Full Disk Encryption: AES-128

Data Encryption: Symmetric Keys, PKI

Device Identity: Protected by device attestation

Device Access: Authenticated using API

Key Protection: Arm TrustZone, RPMP

Accessories

MOUNTS: Wall Mount for Video Bars, TV Mount for Video Bars

Audio: Rally Mic Pod, Rally Mic Pod Hub, Rally Mic Pod Mount, Rally Mic Pod Extension Cable

Connectivity: Logitech Strong USB (10 m, 25 m, 45 m)

Touch Controller: Logitech Tap and Tap IP 7Compatibility may vary, see www.logitech.com/support/tap-compatibility for the latest information

PACKAGE CONTENTS

Rally Bar Mini

Power supply

AC power cord

HDMI cable

USB cable

Remote control

Lens caps for main lens and AI Viewfinder

User documentation

WARRANTY INFORMATION

Standard: 2-year limited hardware warranty included.

Extended: Additional one-year and three-year extended warranties available at the time of hardware purchase.

Contact your reseller for availability.

PART NUMBER

Graphite: 960-001340
